38
HCD-EX200

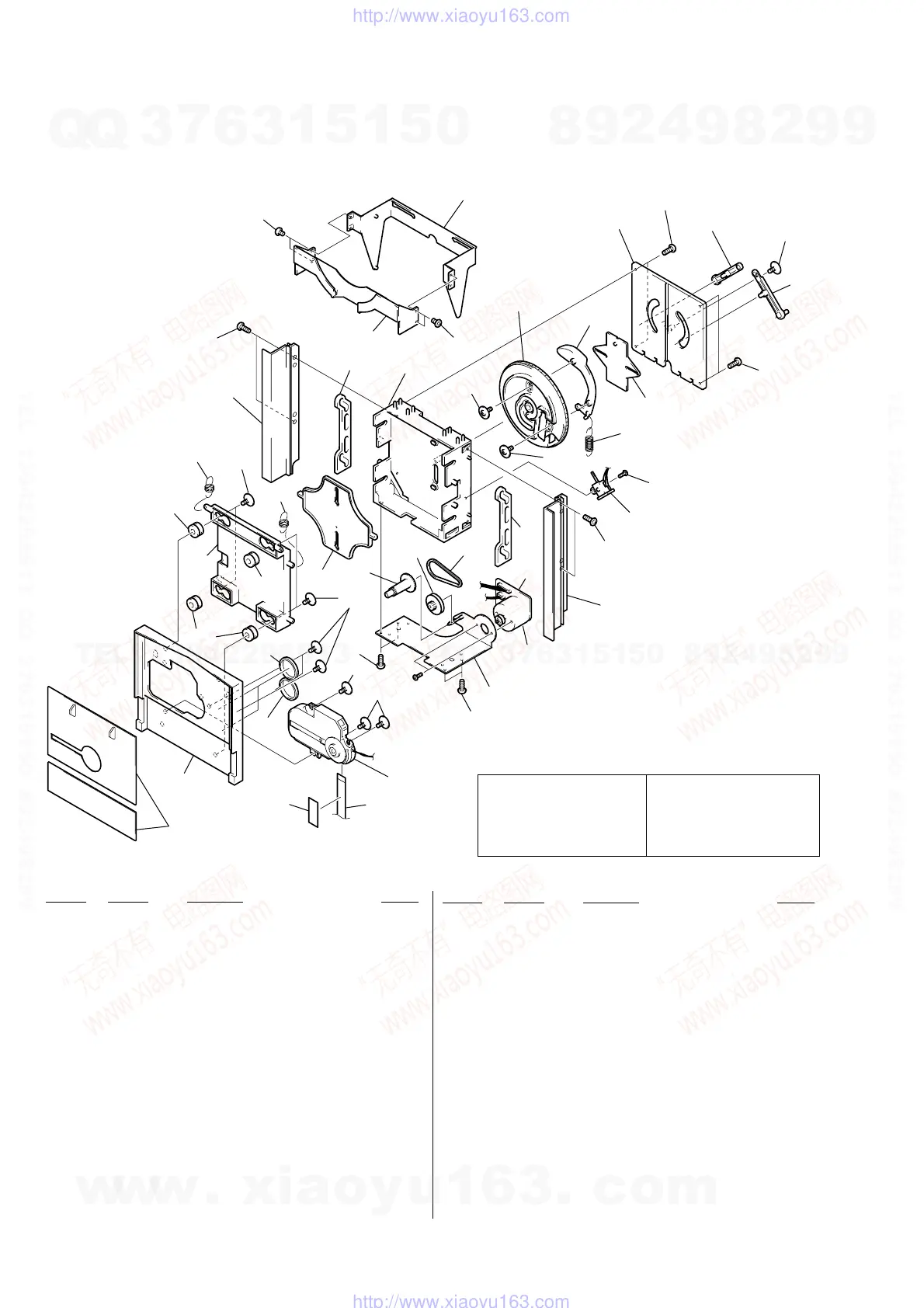

6-3. MECHANISM SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
#4
M351
101
103
104
131
104
124
124
129
128
127
104
104
104
104
104
105
131
105
105
106
107
107
108
114
113
116
117
115
119
120
122
123
123
124
124
121
118
126
112
125
113
111
110
109
124
124
124
130
130
132
101 4-236-397-01 DECORATION (CD)
103 4-222-701-01 PANEL, MECHANICAL
104 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
105 4-222-697-01 RUBBER, FLOATING
106 4-222-692-01 HOLDER, BU
107 4-222-702-01 SPRING (CANCEL), TENSION COIL
108 4-222-685-01 SLIDER (1)
109 4-222-694-01 GEAR (1)
110 4-999-513-11 GEAR, PULLEY
111 4-999-537-01 BELT (LOADING)
112 4-222-695-02 GUIDE (R)
113 4-222-693-01 SLIDER (4)
114 4-222-700-02 GUIDE (L)
115 4-222-687-01 BASE, MECHANICAL
116 4-222-688-01 HOLDER, DISC
117 4-222-813-02 SLIDER (2)
118 4-225-227-01 SPRING (ABSORBER),TENSION COIL
119 4-225-228-01 CAM (A)
120 4-225-226-01 ABSORBER
121 4-222-689-01 SLIDER (3)
122 4-222-690-01 COVER, MECHANICAL
123 4-222-691-01 LEVER (1)
124 4-951-620-01 SCREW (2.6X8), +BVTP
125 1-682-072-11 LOADING BOARD
126 1-682-073-11 SW BOARD
127 1-769-973-11 WIRE (FLAT TYPE) (13 CORE)
128 3-831-441-99 CUSHION
129 X-4952-497-1 BASE ASSY, MOTOR
130 3-946-435-11 SCREW (M2.6)
131 4-230-919-01 MAGNET (MECHANICAL PANEL)
0132 A-4909-346-A BASE UNIT (KSM-770ACA)
M351 X-4952-498-1 MOTOR ASSY (LOADING MOTOR)
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une
piéce portant le numéro spécifié.
The components identified by
mark ! or dotted line with mark
! are critical for safety.
Replace only with part number
specified.
