Sony HCD-EX200 - CD Block; Motor Assy (Loading Board), CAM and SW Board

11
HCD-EX200

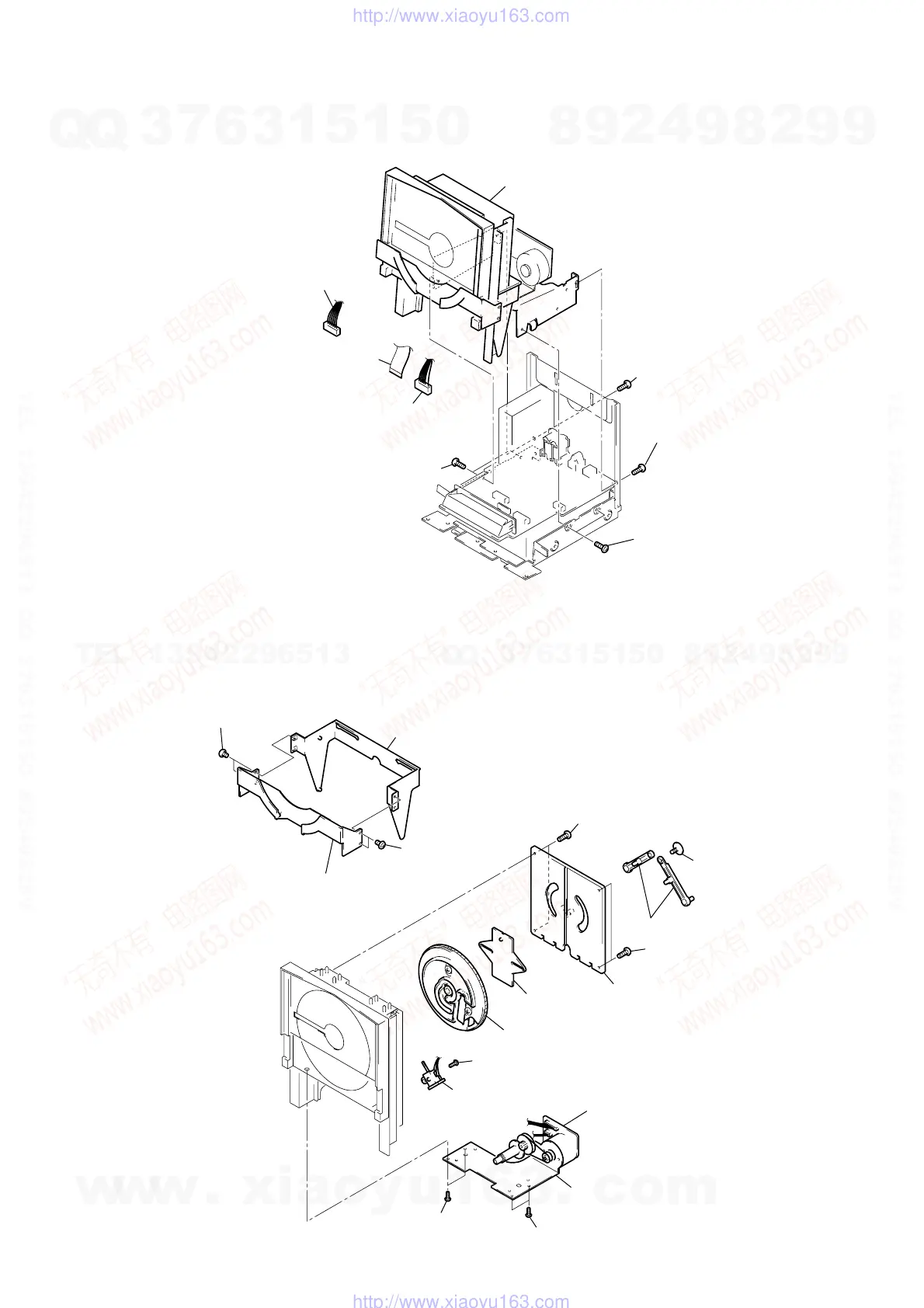

3-4. CD BLOCK
3-5. MOTOR ASSY (LOADING BOARD), CAM AND SW BOARD
Note: The phase adjustment is required in assembly.
Refer to"Section 1. Servicing Note" for details.
Connector
MAIN board: CN351
Flat type wire (CN301)
Connector
MAIN board: CN302
1
2
4
5
6
7
8
Screw (BVTT3x5)
3 Two screws (BVTT3x5
)
Screw (BVTT3x5)
Two screws (BVTT3x5)
CD block
1
2
3
4
5
6
7
8
9
0
!¡
!™
!£
!¢
!∞
!§
Slider (3)
Slider (2)
Disc holder
Lever (1)
Mecha cover
Motor assy
Loading board
SW board
Two screws (BVTP2.6x8)
Two screws (BVTP2.6x8)
Two screws (BVTP2.6x8)
Two screws (BVTP2.6x8)
Screws (BTP2.6x8)
Screws (PTPWH2.6
)
Two screws (M2.6)
Two screws (M2.6)
Cam
