Sony HCD-HPR90 - Page 36

HCD-HPR90/HPR99XM
3636
HCD-HPR90/HPR99XM

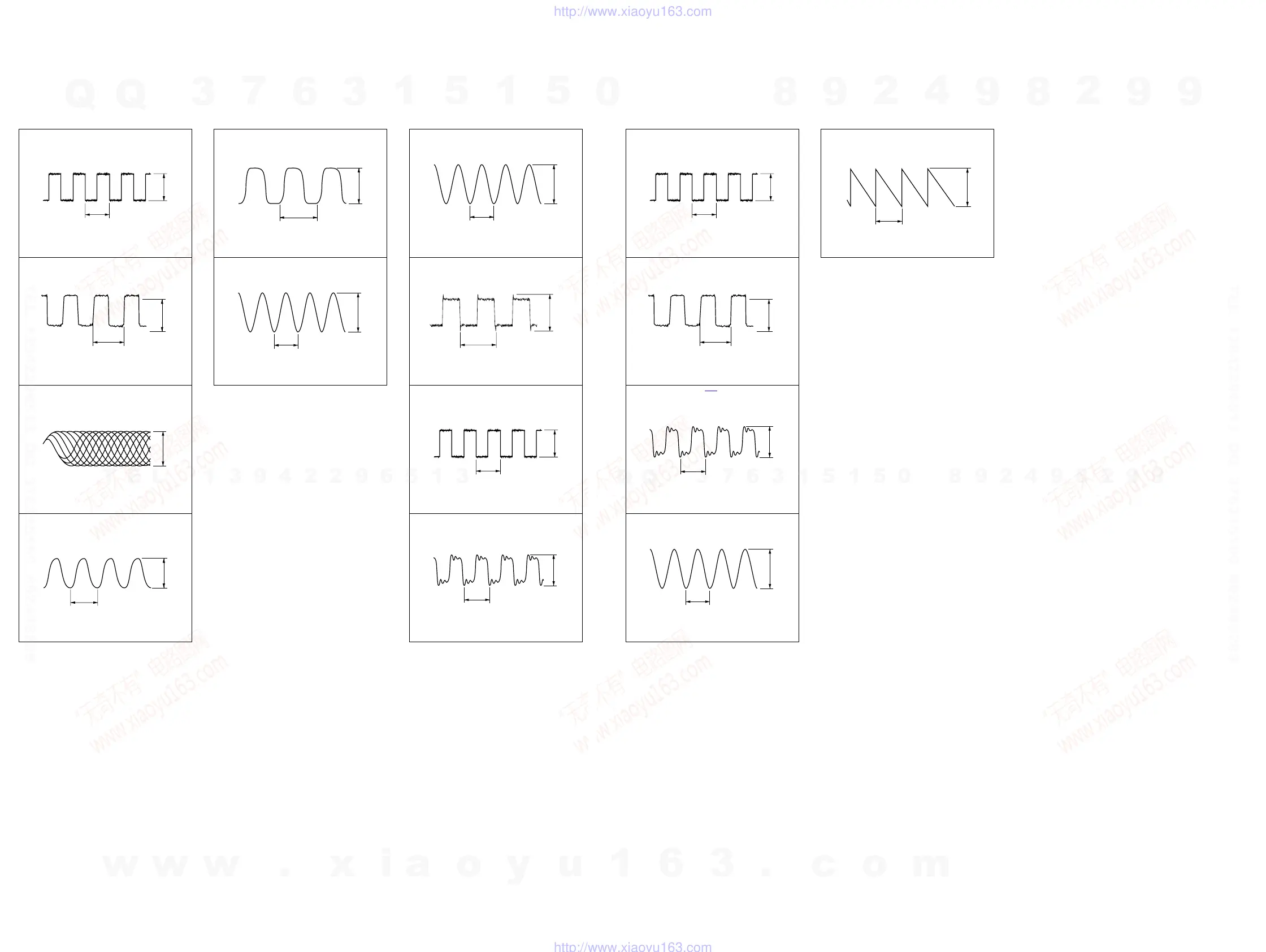

• Waveforms
– CD Board – – MAIN Board – – XM Board – – AMP Board –
– FL Board –
3
IC201 u; (RFACO)
(CD play mode)
200 mV/DIV, 500 ns/DIV
Approx.
900 mVp-p
22.8 µ s
3.3 Vp-p
1
IC201 1 (LRCK), 2 (LRCKI)
(CD play mode)
1 V/DIV, 10 µ s/DIV
2
IC201 5 (BCK), 6 (BCKI)
(CD play mode)
1 V/DIV, 200 ns/DIV
472 ns
3.3 Vp-p
4
IC201 <z/, (XTAO)
(CD play mode)
1 V/DIV, 20 ns/DIV
59 ns
2.3 Vp-p
wa
IC1301 qa (XCOUT)
1 V/DIV, 10 µ s/DIV
30.5 µ s
2.6Vp-p
ws
IC1301 qd (XOUT)
1 V/DIV, 100 ns/DIV
200 ns
3.2 Vp-p
22.8 µ s
3.9 Vp-p
td
IC001 ra (I2S_LRCLK)
(XM mode)
1 V/DIV, 10 µ s/DIV
ts
IC001 el (I2S_CLK)
(XM mode)
1 V/DIV, 100 ns/DIV
tf
IC001 rd (I2S_OCLK)
(XM mode)
1 V/DIV, 50 ns/DIV
89 ns
4.5 Vp-p
ta
IC001 wh (OSC_OUT)
(XM mode)
1 V/DIV, 10 ns/DIV
22.2 ns
3 Vp-p
354 ns
4.5 Vp-p
22.8 µ s
3.2 Vp-p
ea
IC701 q; (LRCK)
1 V/DIV, 10 µ s/DIV
es
IC701 qa (BCK)
1 V/DIV, 100 ns/DIV
324 ns
3.6 Vp-p
ed
IC703 8 (Q2)
1 V/DIV, 50 ns/DIV
82 ns
4 Vp-p
ef
IC709 4
1 V/DIV, 10 ns/DIV
20.3 ns
3.9 Vp-p
ra
IC901 5 (DSC)
500 mV/DIV, 1 µ s/DIV
2.3 µ s
1.5Vp-p
