HCD-HPR90/HPR99XM

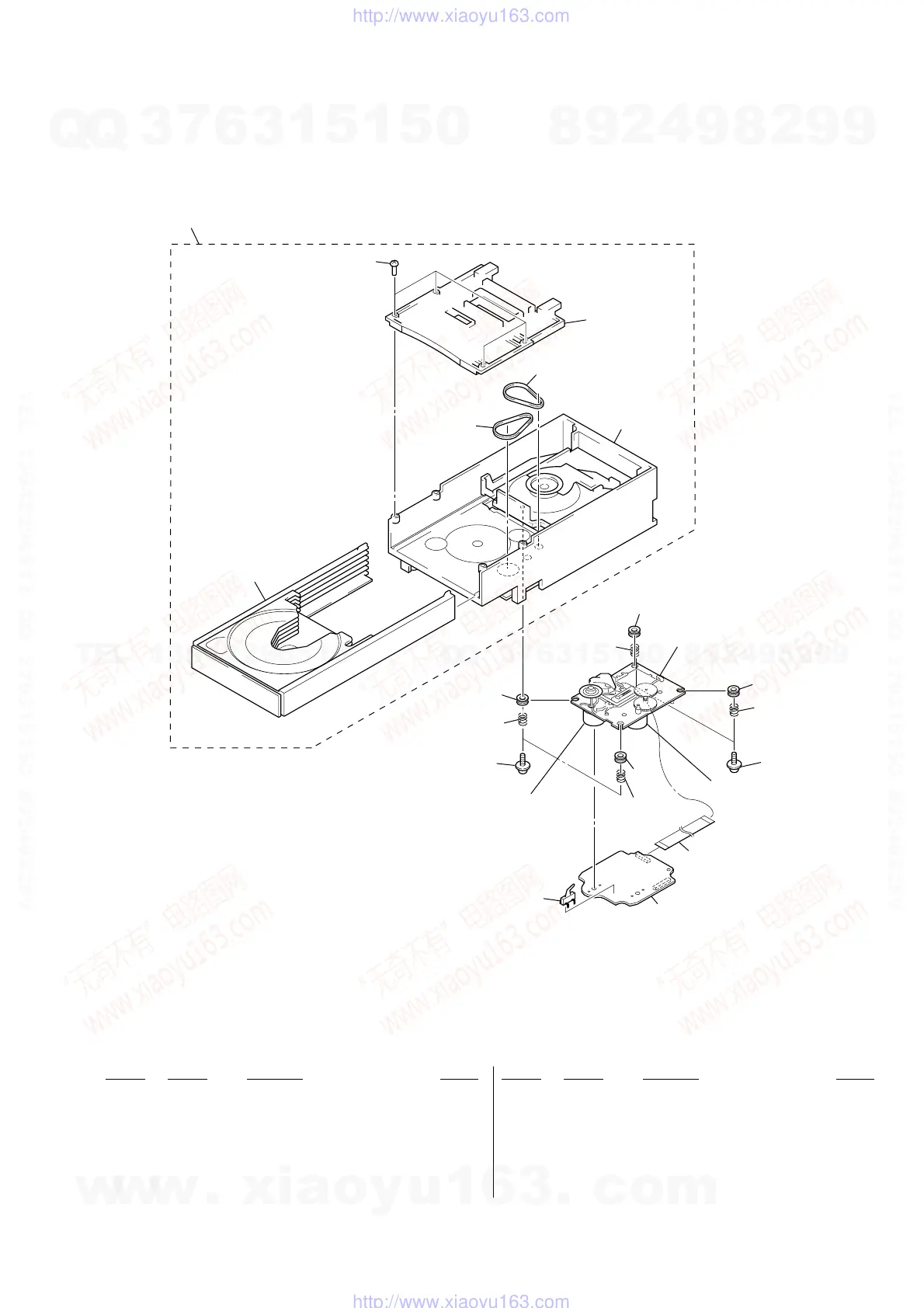

7-4. CD MECHANICAL SECTION (DLM5B)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 1-797-409-11 MECHANICAL, CD (DLM5B)
202 2-632-062-01 BELT (DLM3A)
203 4-227-549-11 INSULATOR
204 4-227-045-31 SPRING (INSULATOR), COIL
0 205 A-4735-357-A OPTICAL PICK-UP BLOCK (KSM-213DHAP)
(Including optical pick-up,spindle motor (M401),
sled motor (M402))
206 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
207 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE)
208 A-1134-279-A CD BOARD, COMPLETE
S101 1-771-853-11 SWITCH, DETECTION (LIMIT)
201
not supplied
not supplied
not supplied
not supplied
202
202
203
203
203
203
204
204
204
204
206
206
207
208
205
(including optical pick-up,
spindle motor (M401),
sled motor (M402))
not supplied
(spindle motor (M401))
not supplied
(sled motor (M402)
S101
