Sony HCD-HPR90 - Case; Back Panel

HCD-HPR90/HPR99XM
8

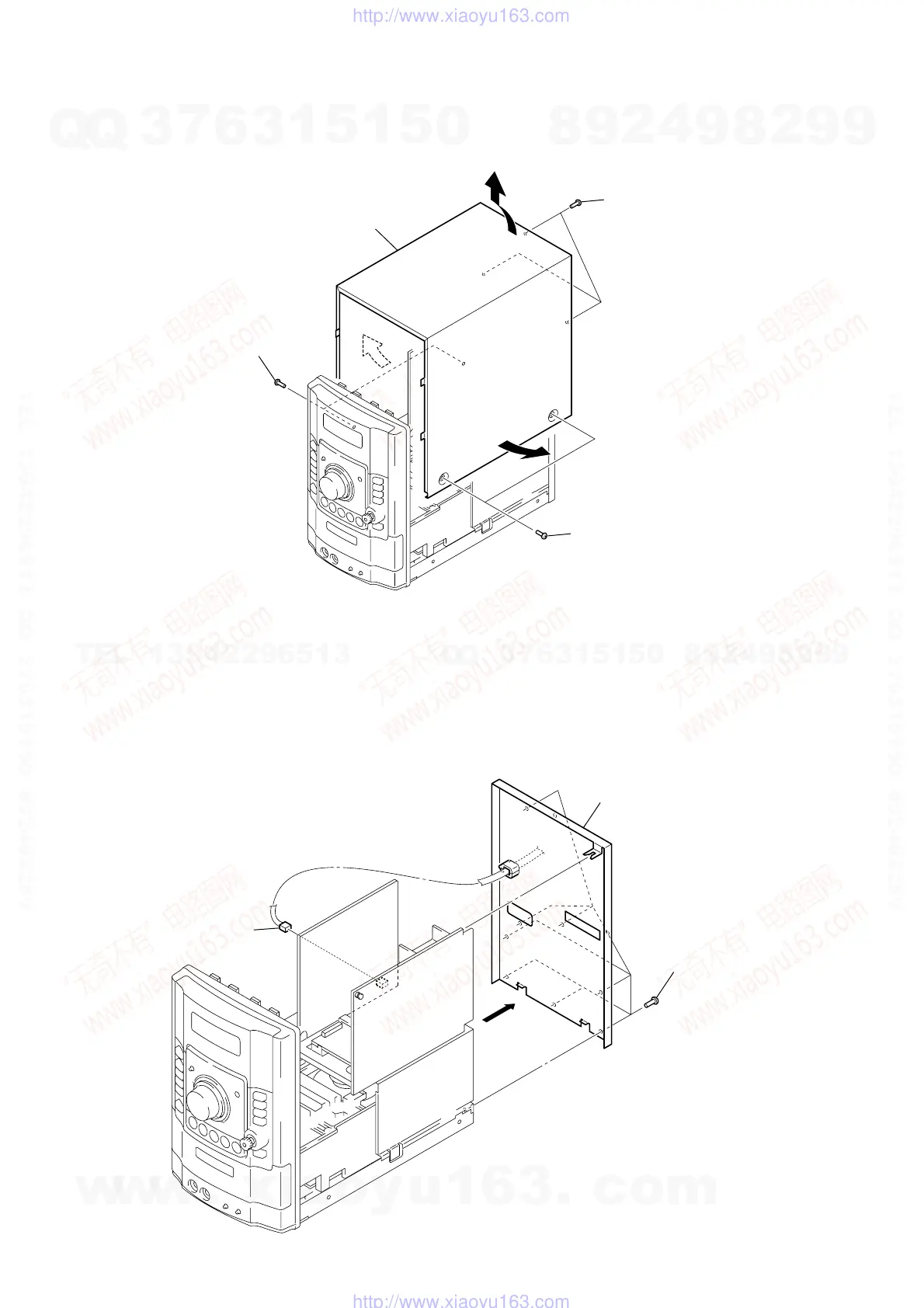

3-3. BACK PANEL
Note: Follow the disassembly procedure in the numerical order given.
3-2. CASE
2 three screw
s
(B3)
5 case
1 two screws
(case 3 TP2)
4
3
3
1 two screws
(case 3 TP2)
2 eight screws
(B3)
3 back panel
1 power cord connector
(CN1)
