HCD-HPR90/HPR99XM

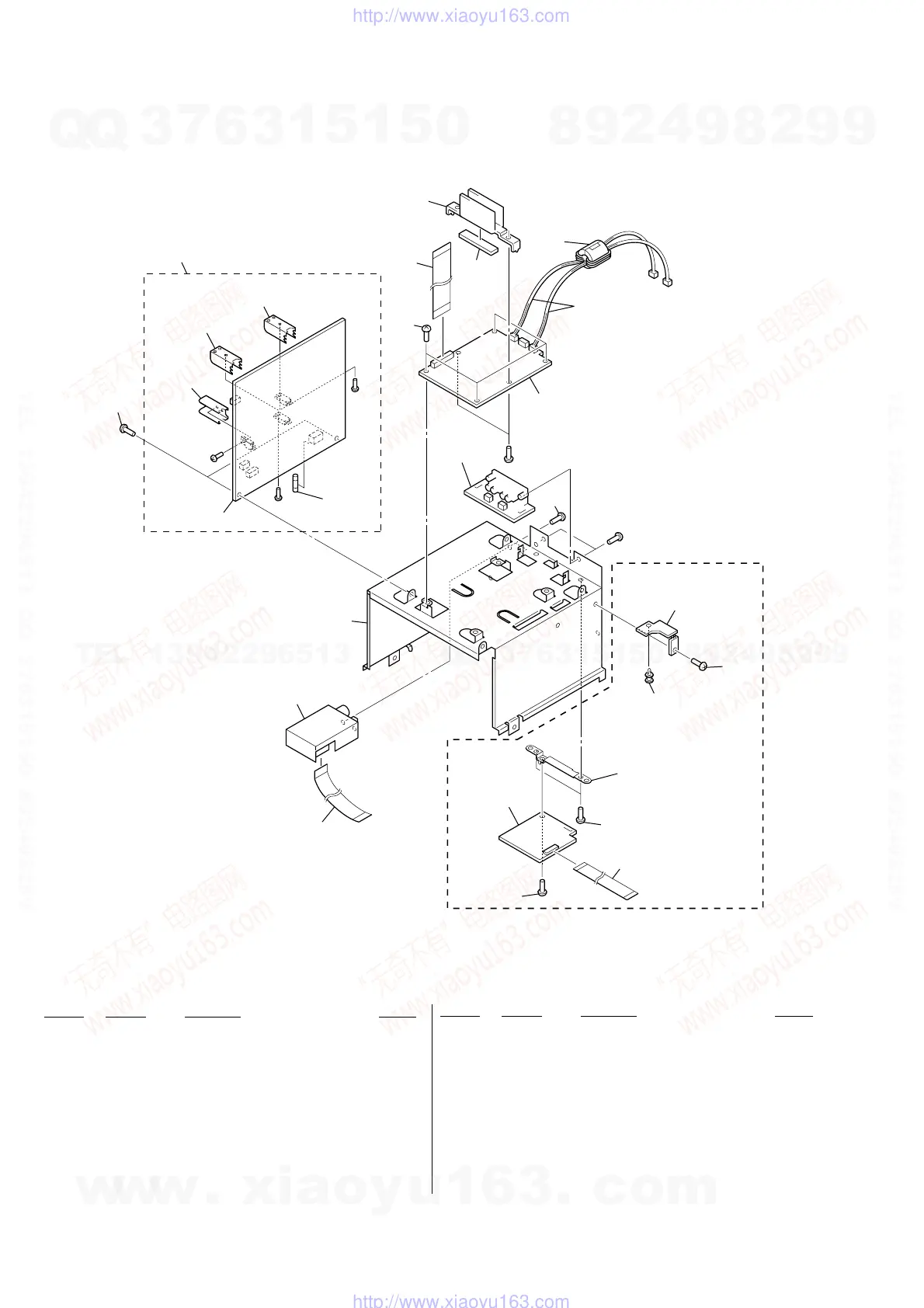

7-3. AMP BOARD, POWER BOARD SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 1-832-435-21 CABLE, FLEXIBLE FLAT (9 CORE)
102 1-693-711-11 TUNER (FM/AM)
(HPR90: E, E51, MX, SP, AR, AUS)
102 1-693-713-11 TUNER (FM/AM) (HPR90: US, CND/HPR99XM)
103 3-252-829-01 SCREW (B3), (+) BV TAPPING
104 A-1167-367-A POWER BOARD, COMPLETE
(HPR90: US, CND/HPR99XM)
104 A-1171-434-A POWER BOARD, COMPLETE (HPR90: E, E51)
104 A-1171-457-A POWER BOARD, COMPLETE
(HPR90: SP, AR, AUS)
104 A-1173-203-A POWER BOARD, COMPLETE (HPR90: MX)
106 2-514-691-01 SHEET, RADIATION
107 1-400-932-11 FILTER, CLAMP
108 1-832-866-21 CABLE, FLEXIBLE FLAT (19 CORE)
109 A-1166-890-A AMP BOARD, COMPLETE (HPR90)
109 A-1183-658-A AMP BOARD, COMPLETE (HPR99XM)
110 4-951-620-01 SCREW (2.6X8), +BVTP
111 1-832-844-21 CABLE, FLEXIBLE FLAT (15 CORE) (HPR99XM)
112 A-1184-933-A XM BOARD, COMPLETE (HPR99XM)
0 F1 1-576-232-51 FUSE (5A/250V)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
101
#1
#1
#1
#1
#1
not supplied
not supplied
not supplied
not supplied
F1
POWER board
not supplied
not supplied
not supplied
not supplied
not supplied
(XM REG board)
not supplied
(SP board)
(HPR99XM)
102
103
103
103
103
103
104
106
107
108
109
110
111
112
