HCD-HPR90/HPR99XM

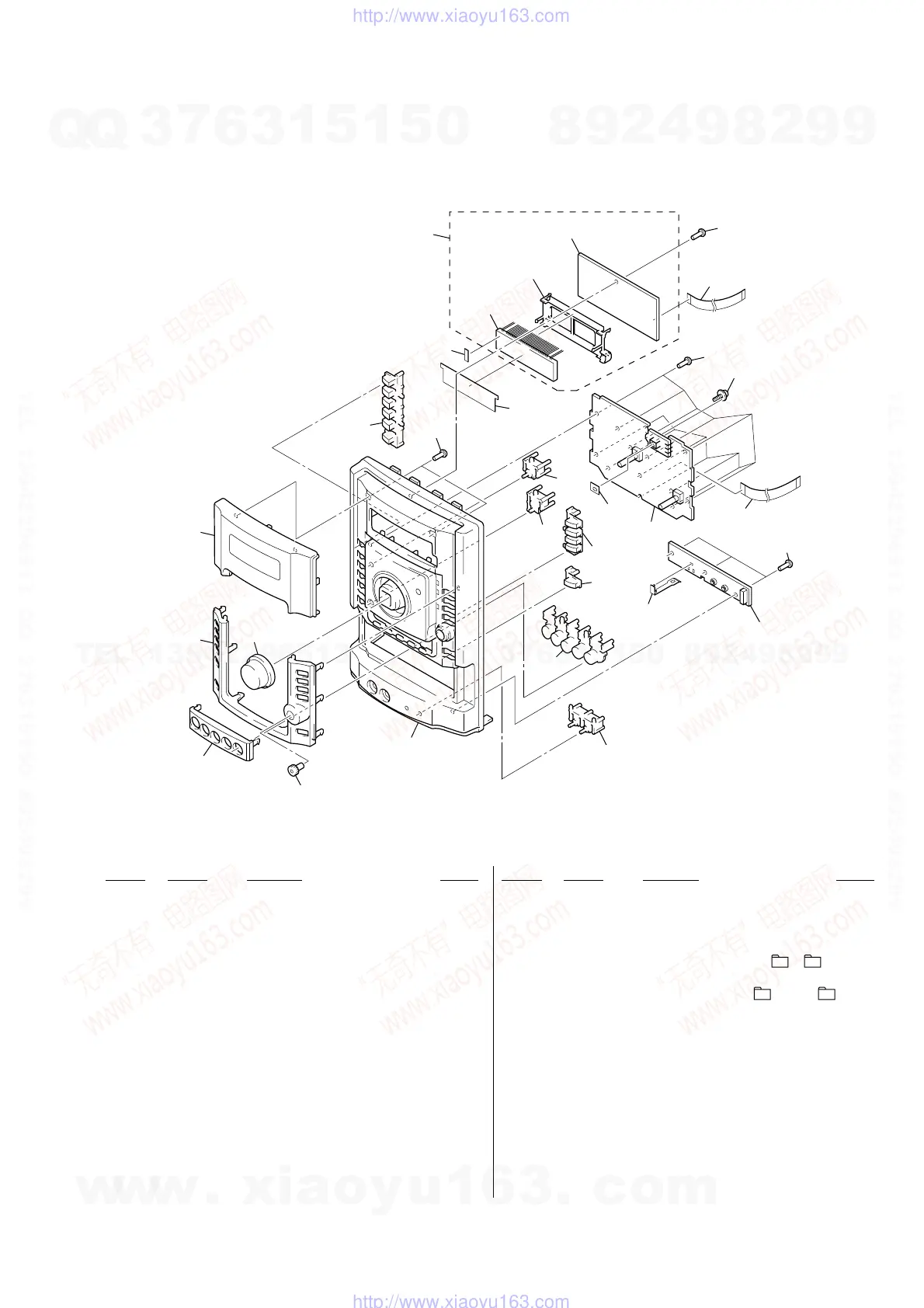

7-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 X-2109-290-2 PANEL ASSY, FRONT
(HPR90: US/HPR99XM: US)
51 X-2109-293-2 PANEL ASSY, FRONT (HPR90: CND, E, E51, MX,
SP, AR, AUS/HPR99XM: CND)
52 2-660-784-01 KNOB (JOG)
53 2-660-780-01 COVER (DISC)
54 2-660-783-01 KNOB (VOL)
55 X-2109-292-1 COVER (MAIN) ASSY
56 2-660-768-01 WINDOW (FL) (HPR90)
56 2-660-768-11 WINDOW (FL) (HPR99XM)
57 2-660-776-01 BUTTON (POWER)(I/1, CD u, TUNER/BAND,
AUDIO IN, x CANCEL, DISC SKIP/EX-CHANGE)
58 2-659-054-01 FILTER (FL)
59 A-1167-360-A FL BOARD, COMPLETE
60 2-659-053-01 HOLDER (FL)
61 4-951-620-01 SCREW (2.6X8), +BVTP
62 1-832-437-21 CABLE, FLEXIBLE FLAT (9 CORE)
63 A-1167-361-A PANEL BOARD, COMPLETE
64 2-681-451-01 SHEET (RM)
65 2-660-770-01 BUTTON (DISPLAY)
66 X-2109-291-1 BUTTON (DSGX) ASSY
67 2-660-777-01 BUTTON (DIR) (M L TUNING +,
l . TUNING –, +, –) (HPR90)
67 2-660-777-11 BUTTON (DIR) (M L TUNING +,
l . TUNING –, + CAT +, – CAT –)
(HPR99XM)
68 2-660-778-01 BUTTON (EJECT) (Z)
69 X-2109-768-1 BUTTON (CAP) ASSY
(DISC 1, DISC 2, DISC 3, DISC 4, DISC 5)
70 2-660-774-01 BUTTON (PLAY MODE)
71 1-831-781-21 CABLE, FLEXIBLE FLAT (11 CORE)
72 A-1167-362-A HP A-IN BOARD, COMPLETE
73 3-842-929-01 SPACER, KNOB
74 3-252-828-01 SCREW (B 2.6), (+) PWH TAPPING
FL901 1-519-874-11 INDICATOR TUBE, FLUORESCENT
