52
HCD-HPR90/HPR99XM

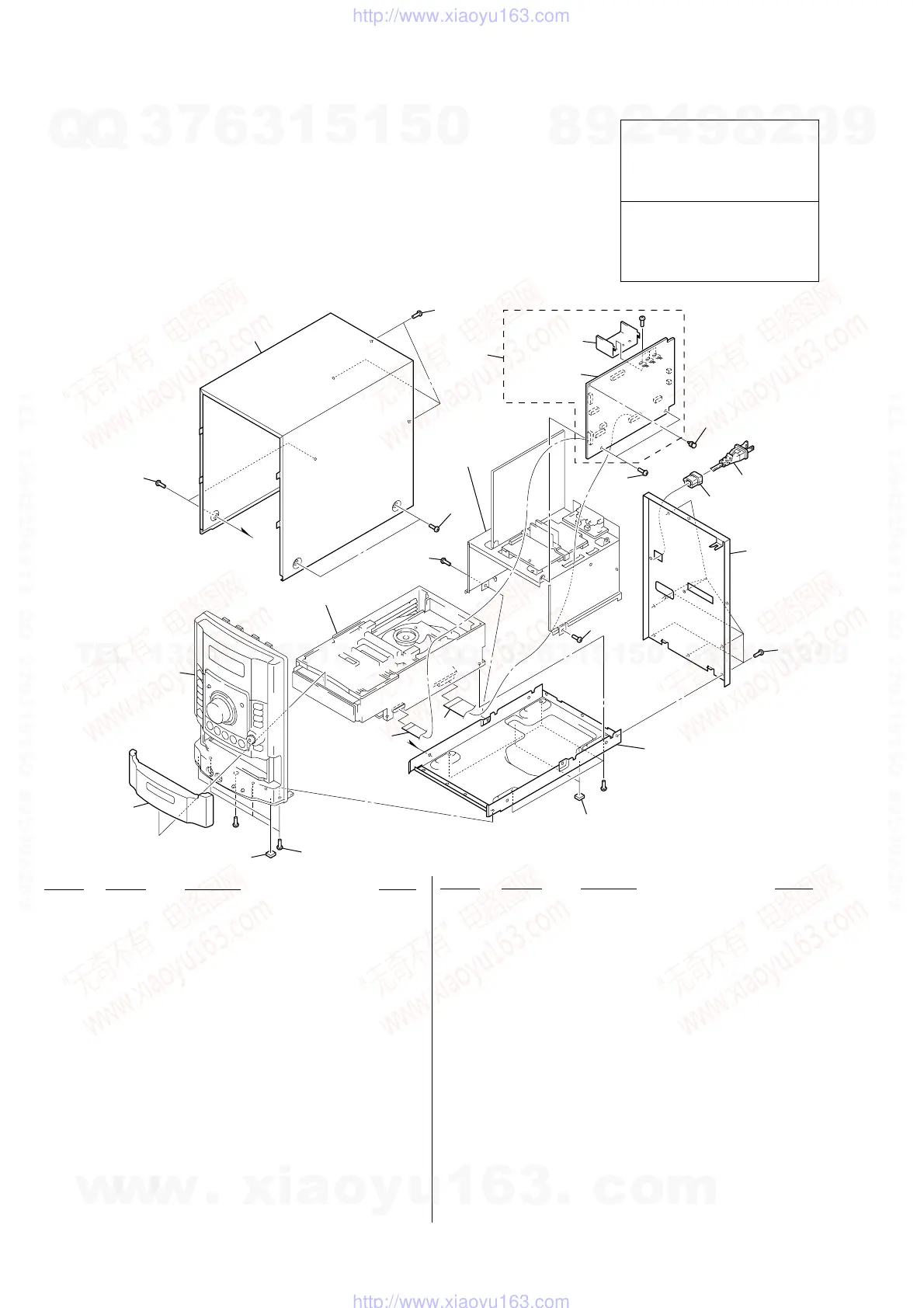

SECTION 7
EXPLODED VIEWS
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 2-660-769-01 LID (CD) (HPR90: US, CND/HPR99XM)
1 2-660-769-11 LID (CD) (HPR90: E, E51, MX, SP, AR, AUS)
2 3-363-099-11 SCREW (CASE 3 TP2)
3 2-659-063-02 CASE
4 3-252-829-01 SCREW (B3), (+) BV TAPPING
5 A-1167-363-A MAIN BOARD, COMPLETE (HPR90: US, CND)
5 A-1167-403-A MAIN BOARD, COMPLETE (HPR99XM)
5 A-1171-432-A MAIN BOARD, COMPLETE (HPR90: E, E51)
5 A-1171-456-A MAIN BOARD, COMPLETE (HPR90: AR)
5 A-1171-473-A MAIN BOARD, COMPLETE (HPR90: SP, AUS)
5 A-1173-202-A MAIN BOARD, COMPLETE (HPR90: MX)
0 7 1-775-790-71 CORD, POWER (HPR90: AUS)
0 7 1-827-226-31 CORD, POWER (HPR90: E, MX)
0 7 1-829-387-11 CORD, POWER (HPR90: AR)
0 7 1-830-188-11 CORD, POWER (HPR90: E51, SP)
0 7 1-830-190-11 CORD, POWER (HPR90: US, CND/HPR99XM)
8 3-703-244-00 BUSHING (2104), CORD
(HPR90: US, CND, E51, SP, AR, AUS/HPR99XM)
* 8 3-703-571-12 BUSHING (S) (4516), CORD (HPR90: E, MX)
9 2-670-257-01 PANEL, BACK (HPR90: US)
9 2-670-257-11 PANEL, BACK (HPR90: CND)
9 2-670-257-21 PANEL, BACK (HPR90: E)
9 2-670-257-31 PANEL, BACK (HPR90: MX)
9 2-670-257-41 PANEL, BACK (HPR90: E51)
9 2-670-257-51 PANEL, BACK (HPR90: AR)
9 2-670-257-61 PANEL, BACK (HPR90: SP)
9 2-670-257-71 PANEL, BACK (HPR90: AUS)
9 2-670-258-01 PANEL, BACK (HPR99XM: US)
9 2-670-258-11 PANEL, BACK (HPR99XM: CND)
10 1-832-438-21 CABLE, FLEXIBLE FLAT (23 CORE)
11 1-832-847-21 CABLE, FLEXIBLE FLAT (15 CORE)
12 4-233-372-02 FOOT (FELT)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
7-1. OVERALL SECTION
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Accessories are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
1
#1
#2
#1
not supplied
not supplied
MAIN board
2
2
3
4
4
4
4
4
4
5
7
8
9
10
11
12
12
not supplied
front panel section
CD mechanical section
AMP board,
POWER board
section
• Abbreviation
AR : Argentina model
AUS: Australian model
CND : Canadian model
E51 : Chilean and Peruvian models
MX : Mexican model
SP : Singapore model
