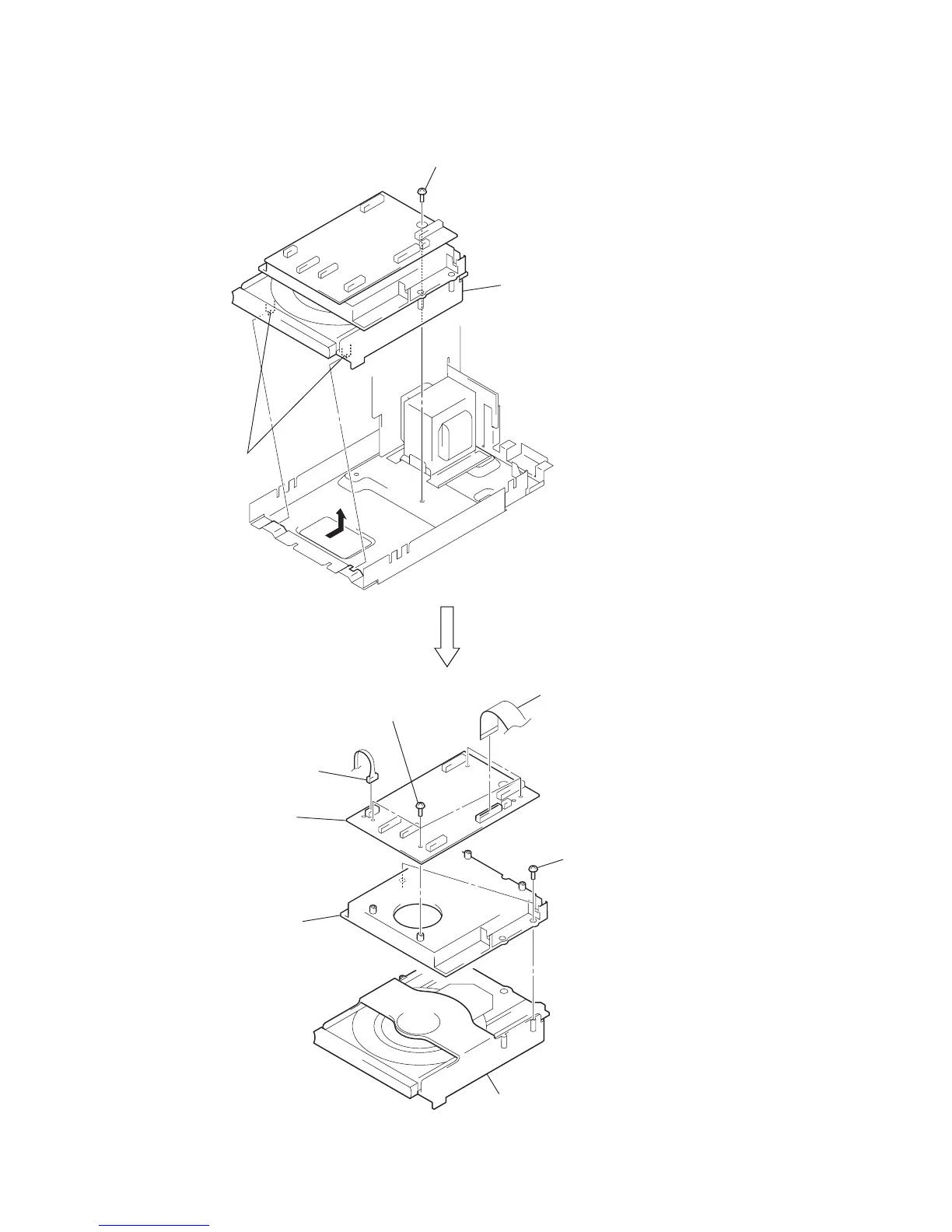

3-8. CD MECHANISM DECK (CDM55F-K6BD41A)
1 screw
(BVTP3
× 8)
3 Remove the CD mechanism dec
k
in the direction of the arrow.
2 two claws
0 CD mechanism deck
(CDM55F-K6BD41A)
8 two screws
(BTP3
× 8)
4 flexible flat cable (19 core
)
(CN805)
6 four screws
(DIA. 2.6 × 8)
5 connector
(CN807)
7 control board
9 bracket (MPEG)
