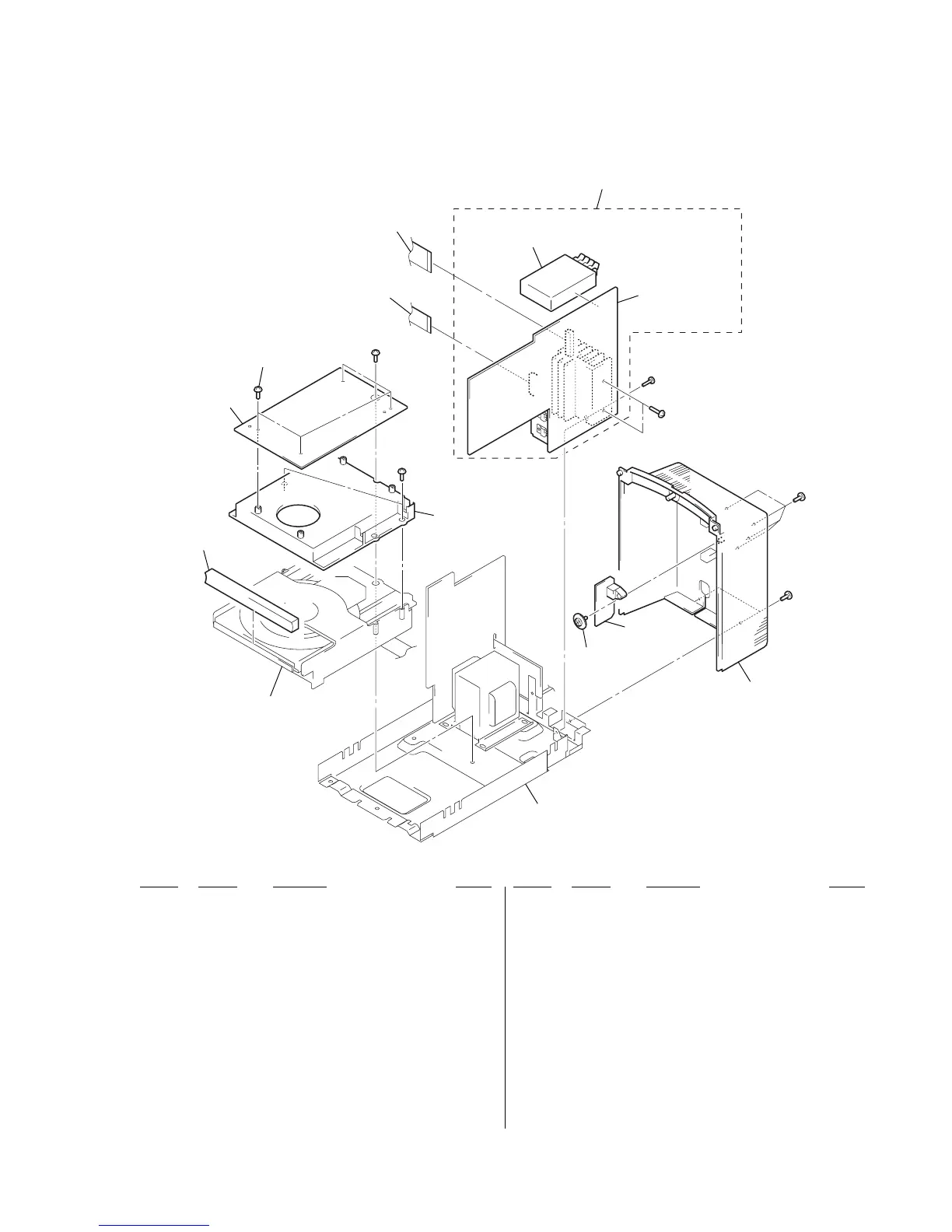

7-4. CHASSIS SECTION-1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 4-238-688-11 LID, CD (FOR SILVER, WHITE)
151 4-238-688-21 LID, CD (BLACK)
152 A-4676-452-A CONTROL BOARD, COMPLETE (US, CND)
152 A-4676-462-A CONTROL BOARD, COMPLETE (MX)
152 A-4676-468-A CONTROL BOARD, COMPLETE (SP, AUS)
152 A-4728-251-A CONTROL BOARD, COMPLETE (AEP, UK)
152 A-4729-435-A CONTROL BOARD, COMPLETE (KR, TH)
153 4-931-757-31 SCREW (DIA. 2.6X8) (IT3B), TAPPING
154 A-4676-457-A MAIN BOARD, COMPLETE (US, CND)
154 A-4676-466-A MAIN BOARD, COMPLETE (MX)
154 A-4676-473-A MAIN BOARD, COMPLETE (SP)
154 A-4728-254-A MAIN BOARD, COMPLETE (AEP, UK)
154 A-4729-441-A MAIN BOARD, COMPLETE (AUS)
154 A-4729-442-A MAIN BOARD, COMPLETE (KR)
154 A-4729-443-A MAIN BOARD, COMPLETE (TH)
155 1-684-235-11 VIDEO BOARD
156 4-238-717-01 SCREW (WASHER), +BTP (3X8)
157 1-926-063-50 FFC CABLE 21P
158 1-926-063-40 FFC CABLE 17P
TU1 A-4303-953-A TUNER UNIT (TCB-023//K (CE))
(AEP, UK, KR, AUS)
TU1 A-4303-954-A TUNER UNIT (TCB-023//K (UC))
(US, CND, MX, SP, TH)
#1 7-685-547-14 SCREW +BTP 3X10 TYPE2 N-S
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#4 7-685-548-19 SCREW +BTP 3X12 TYPE2 N-S
#6 7-685-546-14 SCREW +BTP 3X8 TYPE2 N-S
151
152
153
155
156
158
157
154
TU1
main board
#4
#3
#1
#1
CDM55F-K6BD41A
not supplied
#3
#6
not supplied
chassis section-2
