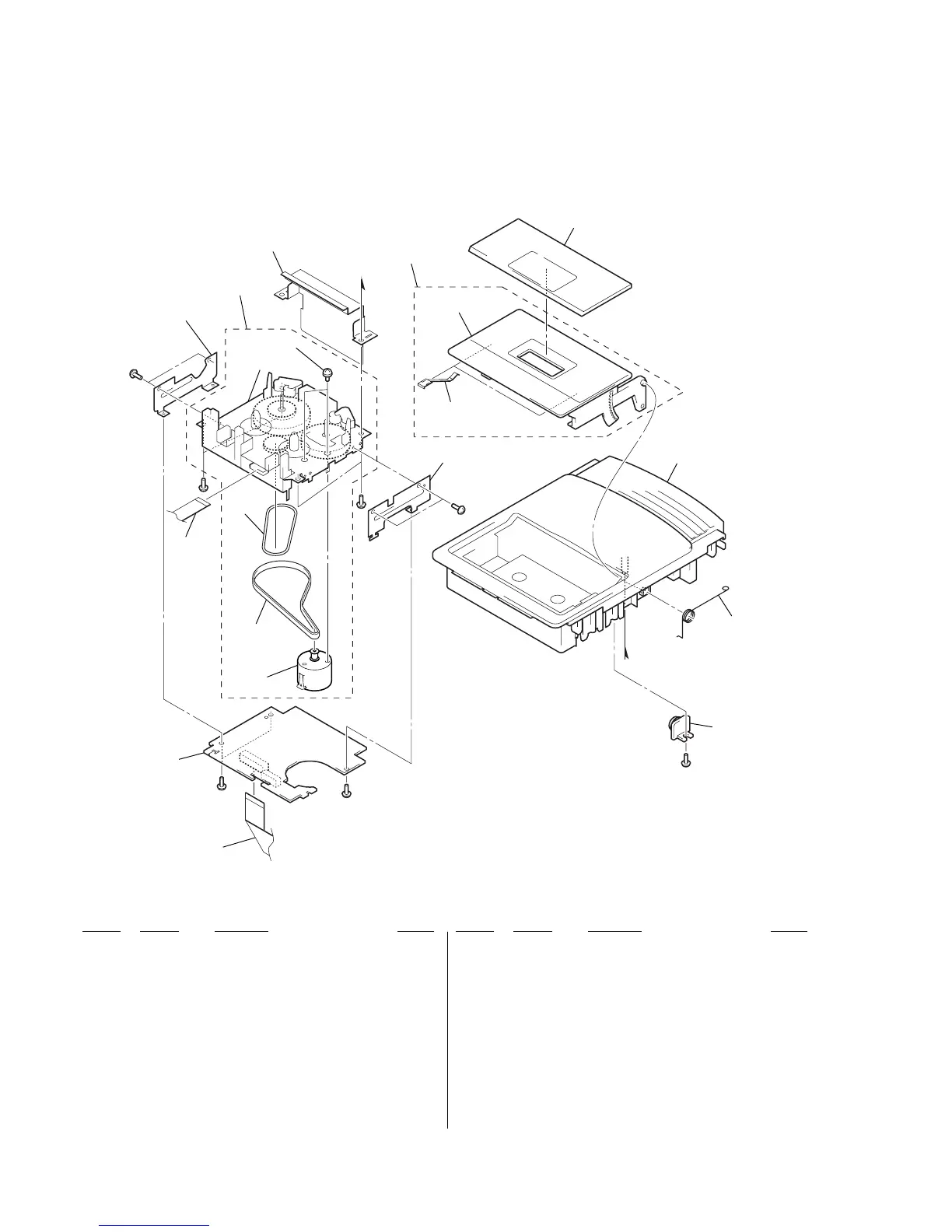

7-3. TOP PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 A-4728-263-A TC BOARD, COMPLETE
102 1-796-353-11 DECK, MECHANICAL (TAPE)
103 X-4954-501-1 HOLDER ASSY, CASSETTE (SILVER)
103 X-4954-502-1 HOLDER ASSY, CASSETTE (WHITE)
103 X-4954-666-1 HOLDER ASSY, CASSETTE (BLACK)
104 4-234-557-01 SPRING (TAPE)
105 4-238-683-01 WINDOW (CASSETTE) (SILVER)
105 4-238-683-11 WINDOW (CASSETTE) (WHITE)
105 4-238-683-21 WINDOW (CASSETTE) (BLACK)
106 X-4954-499-1 PANEL SUB ASSY (TOP) (SILVER)
106 X-4954-500-1 PANEL SUB ASSY (TOP)(WHITE)(AEP, UK, SP)
106 X-4954-649-1 PANEL SUB ASSY, TOP (WHITE) (US, CND)
106 X-4954-650-1 PANEL SUB ASSY, TOP (BLACK) (US, CND)
106 X-4954-651-1 PANEL SUB ASSY, TOP (BLACK) (AEP, UK)
108 3-926-926-01 GEAR, DAMPER
109 1-773-044-11 WIRE (FLAT TYPE) (17 CORE)
110 1-926-062-30 FFC CABLE 8P
111 4-241-659-01 BELT
112 4-241-718-01 BELT (FLAT)
#2 7-685-861-01 SCREW +BVTT 2.6X5 (S)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
