Sony HCD-M70 - 7 Exploded Views; Panel (Side) Section

36
HCD-M70

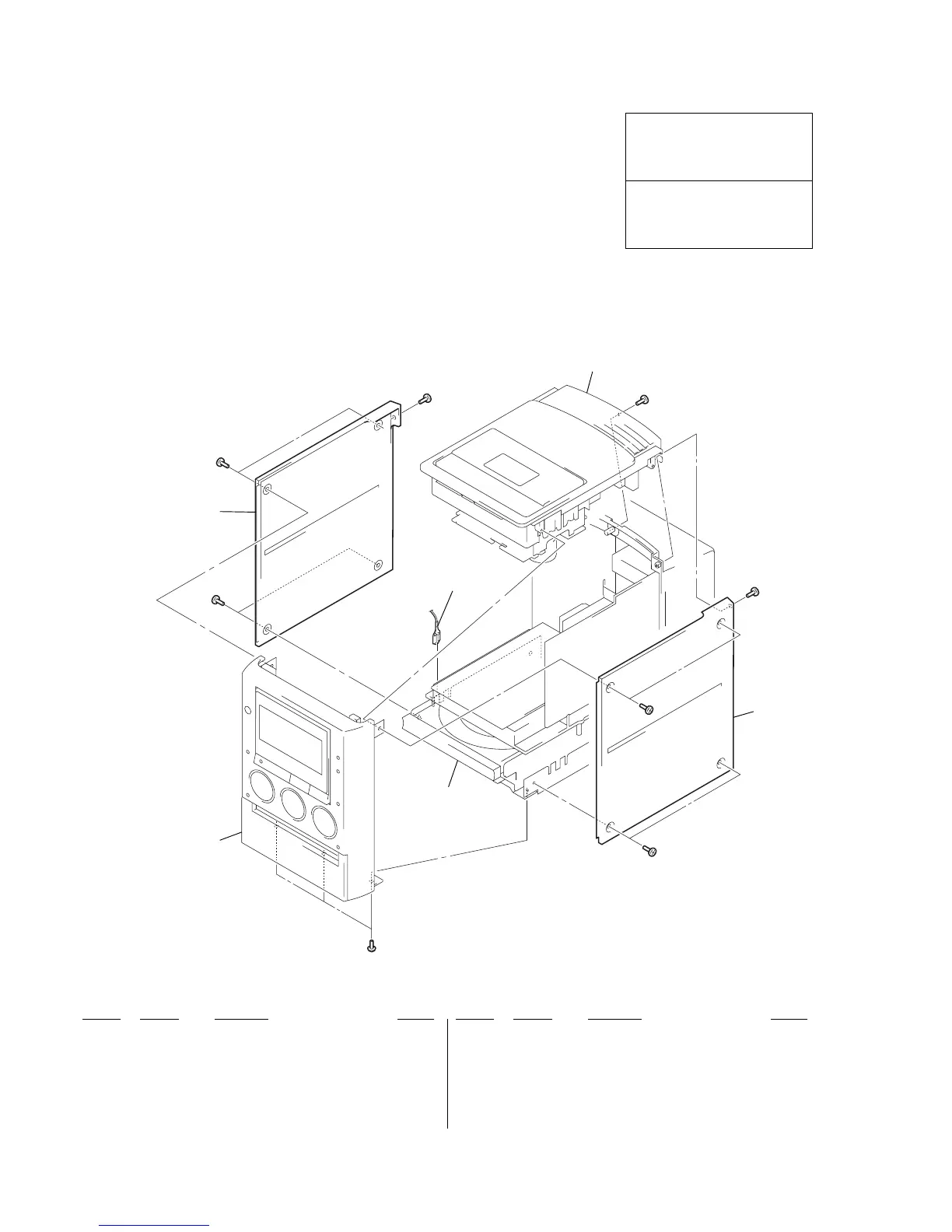

7-1. PANEL (SIDE) SECTION
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• Accessories are given in the last of the elec-
trical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
•Abbreviation
AUS: Australian model
CND : Canadian model
KR : Korean model
MX : Mexican model
SP : Singapore model
TH : Thai model
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-238-706-01 PANEL (SIDE) (L) (SILVER)
1 4-238-706-11 PANEL (SIDE) (L) (WHITE) (AEP, UK, SP)
1 4-238-706-21 PANEL (SIDE) (L) (BLACK) (AEP, UK)
1 4-238-706-31 PANEL (SIDE) (L) (WHITE) (US, CND)
1 4-238-706-41 PANEL (SIDE) (L) (BLACK) (US, CND)
2 1-823-149-11 LEAD (WITH CONNECTOR)
3 4-238-707-01 PANEL (SIDE) (R) (SILVER)
3 4-238-707-11 PANEL (SIDE) (R) (WHITE) (AEP, UK, SP)
3 4-238-707-21 PANEL (SIDE) (R) (BLACK) (AEP, UK)
3 4-238-707-31 PANEL (SIDE) (R) (WHITE) (US, CND)
3 4-238-707-41 PANEL (SIDE) (R) (BLACK) (US, CND)
#1 7-685-547-14 SCREW +BTP 3X10 TYPE2 N-S
1
#1
#1
#1
#1
#1
#1
#1
#1
2
chassis (lower) section
front panel section
3
top panel section
