Sony HCD-M70 - Panel (Side) (L), Panel (Side) (R); Top Panel Section

HCD-M70
7
Note: Follow the disassembly procedure in the numerical order given.

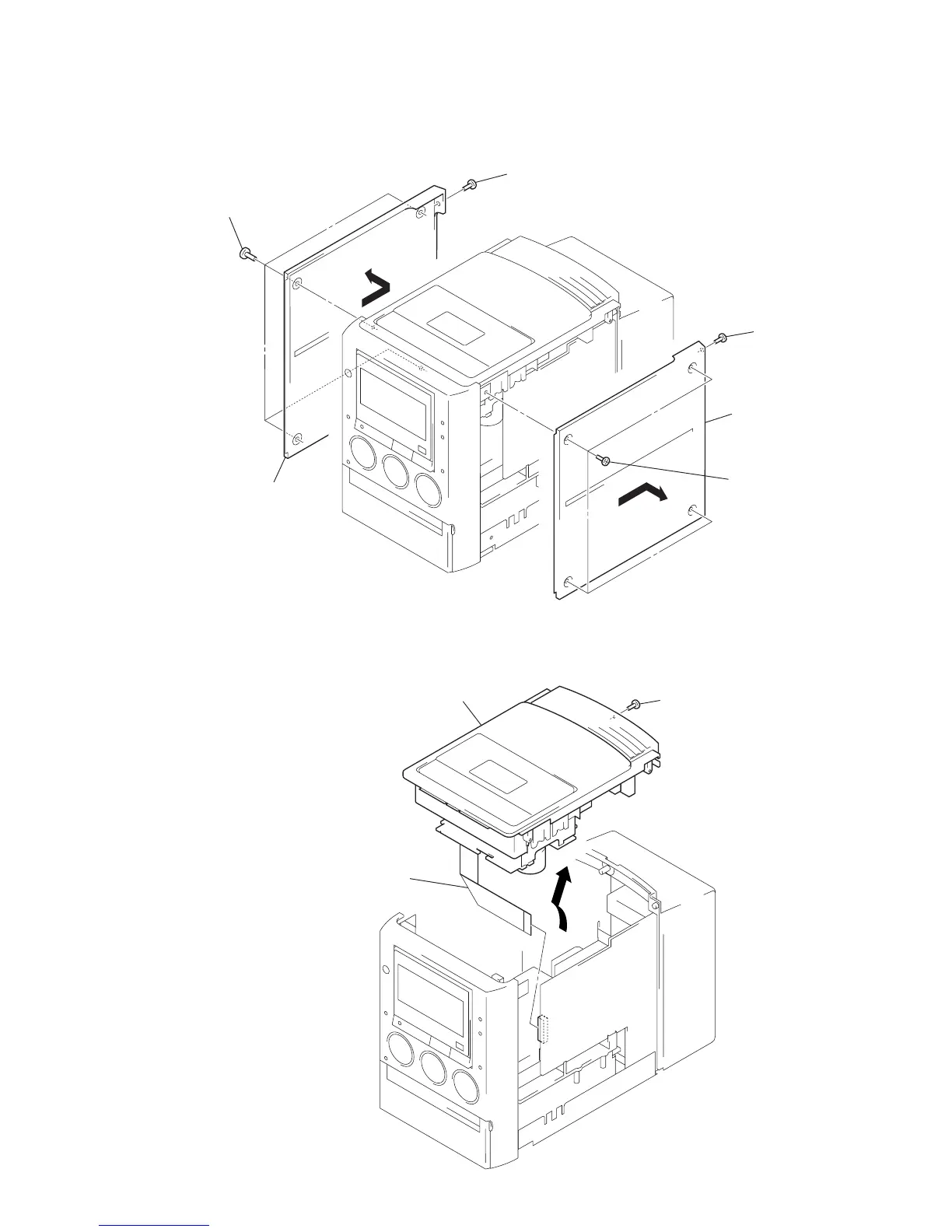

3-2. PANEL (SIDE) (L), PANEL (SIDE) (R)
3-3. TOP PANEL SECTION
1 four screws
(BTP3
× 10)
2
3 panel (side) (L)
1 screw
(BTP3
× 10)
4 screw
(BTP3
× 10)
4 four screws
(BTP3
× 10)
5
6 panel (side) (R)
3 wire (flat type) (17 core)
(CN301)
4 top panel section
1 screw
(BTP3 × 10
)
2
