HCD-M70

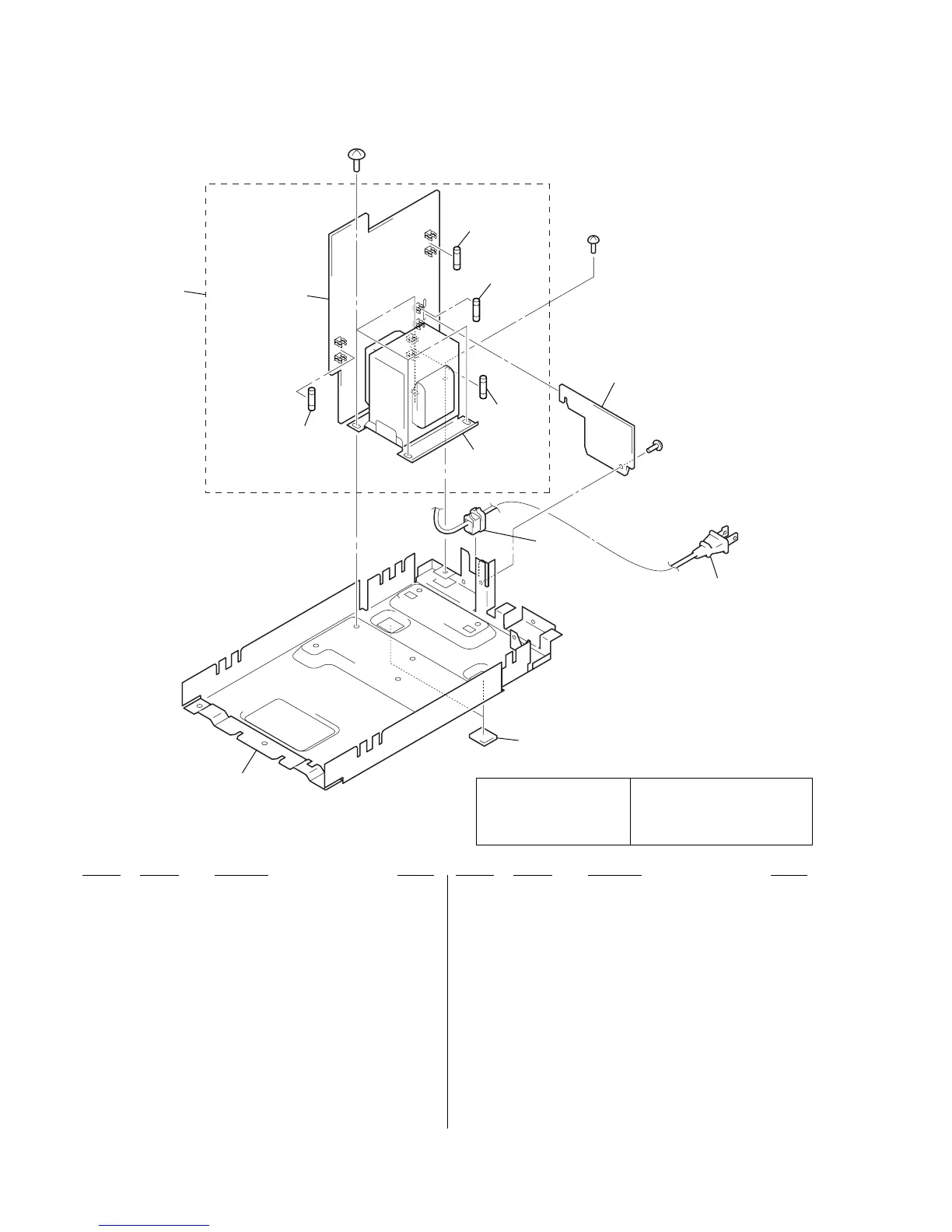

7-5. CHASSIS SECTION-2
The components identified by
mark 0 or dotted line with
mark 0 are critical for safety.
Replace only with part num-
ber specified.
Les composants identifiés par une
marque 0 sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 A-4676-455-A POWER BOARD, COMPLETE (US, CND)
201 A-4676-464-A POWER BOARD, COMPLETE (MX)
201 A-4676-471-A POWER BOARD, COMPLETE (SP)
201 A-4728-252-A POWER BOARD, COMPLETE
(AEP, UK, KR, TH, AUS)
202 1-684-233-11 POWER RETAINER BOARD
203 3-703-571-11 BUSHING (S) (4516), CORD (KR, TH)
203 4-217-350-11 STOPPER, CORD (EXCEPT KR, TH)
0204 1-558-943-31 CORD, POWER (TH)
0204 1-696-169-11 CORD, POWER (AEP, UK, SP)
0204 1-696-848-41 CORD, POWER (AUS)
0204 1-769-079-21 CORD, POWER (KR)
0204 1-775-789-81 CORD, POWER (MX)
0204 1-783-532-11 CORD, POWER (US, CND)
205 4-232-478-01 FOOT
0F901 1-533-445-11 FUSE, GLASS TUBE (DIA. 5) (0.8A/125V)
(US, CND, MX)
0F901 1-533-461-11 FUSE, GLASS TUBE (DIA. 5) (0.4A/250V)
(AEP, UK, KR, TH, AUS)
0F902 1-533-464-11 FUSE, GLASS TUBE (DIA. 5) (0.8A/250V) (SP)
0F903 1-533-461-11 FUSE, GLASS TUBE (DIA. 5) (0.4A/250V) (SP)
0F904 1-533-468-11 FUSE, GLASS TUBE (DIA. 5) (2A/250V)
(AEP, UK, SP, KR, TH, AUS)
0F904 1-576-478-11 FUSE, GLASS TUBE (2A/125V) (US, CND, MX)
0T902 1-437-727-11 TRANSFORMER, POWER
(AEP, UK, KR, TH, AUS)
0T902 1-437-728-11 TRANSFORMER, POWER (SP)
0T902 1-437-729-11 TRANSFORMER, POWER (US, CND, MX)
#5 7-685-659-14 SCREW +BVTP 4X8 TYPE2 N-S
#6 7-685-546-14 SCREW +BTP 3X8 TYPE2 N-S
201
power board
#5
#6
#6
F904
F901
F902
F903
T902
202
204
203
205
not supplied
