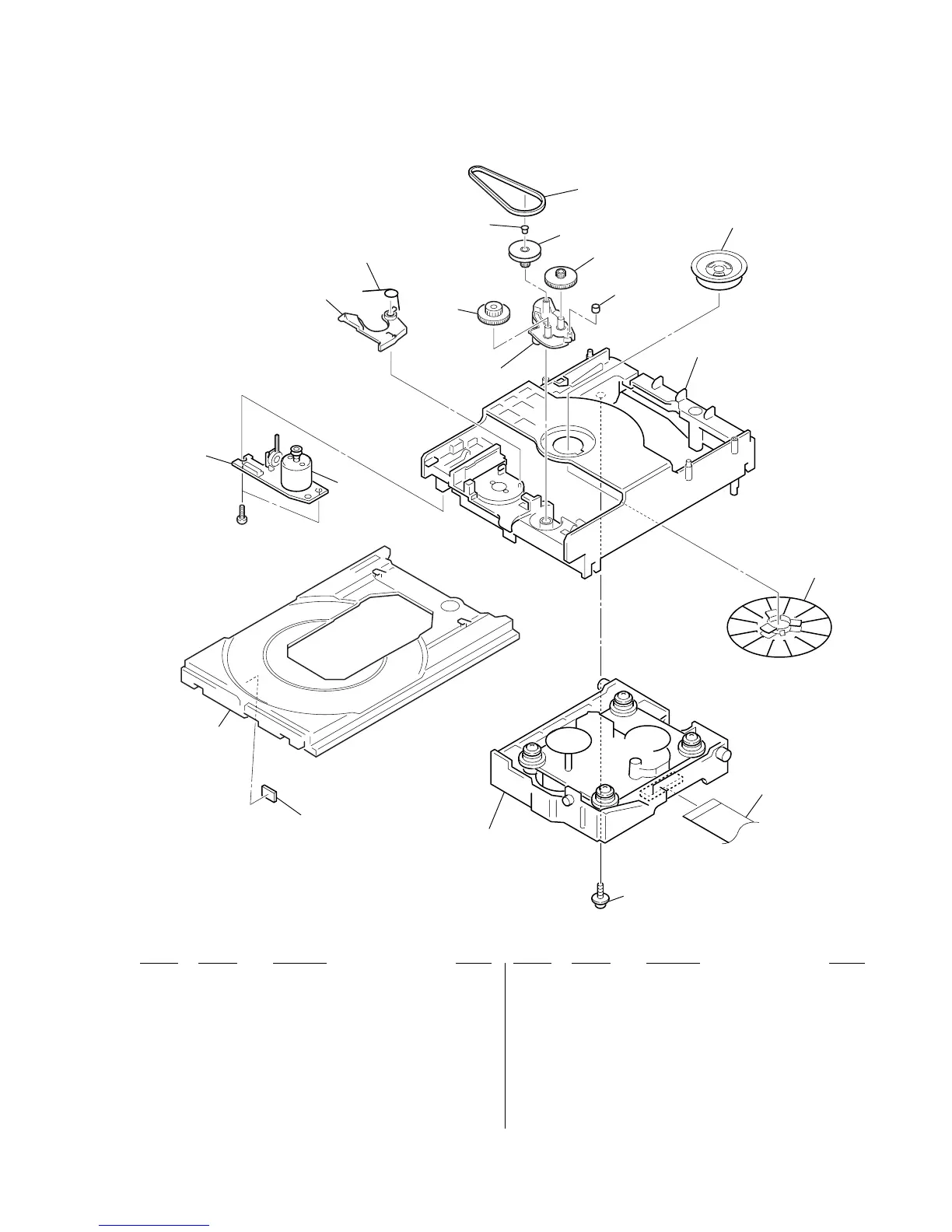

7-6. CD MECHANISM DECK (CDM55F-K6BD41A)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
501 4-224-894-01 TRAY
502 4-220-229-01 LEVER (SW)
503 4-220-239-01 SPRING, TORSION
504 4-221-816-01 BELT (CDM55)
505 4-220-234-01 PULLEY (LDG)
506 4-220-237-02 GEAR (A)
507 4-220-238-01 GEAR (B)
508 4-220-233-01 CAM (CDM55)
509 1-681-807-11 LOADING BOARD
510 4-221-815-01 ROLLER
511 4-231-779-01 CHASSIS (F)
512 A-4735-081-A PULLEY (AT-55F) ASSY
513 1-792-411-11 CABLE, FLEXIBLE FLAT (19 CORE)
514 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
515 4-925-315-31 DAMPER
516 4-227-598-01 SPACER (55)
517 A-4735-082-A MAGNET ASSY
M901 A-2004-893-A MOTOR (LD) ASSY (LOADING)
#11 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
503
502
507
504
505
506
510
508
501
509
516
517
515
512
513
511
514
M901
#11
BU-K6BD41A
