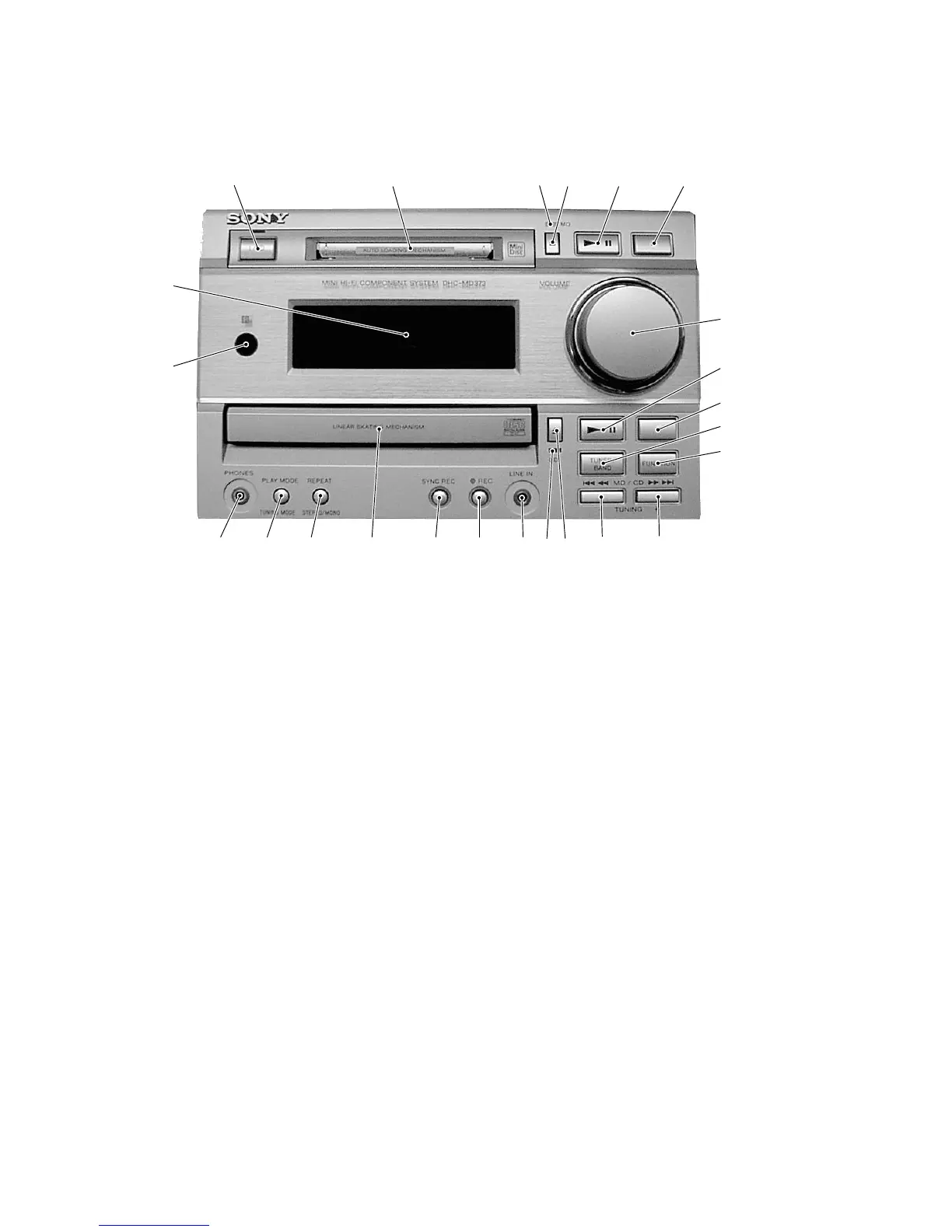

LOCATION OF PARTS AND CONTROLS
1 1/u (power) switch
2 MD slot
3 6 (Eject) (MD) button
4 MD indicator
5 (P (MD) button
6 p (MD) button
7 VOLUME (CD) knob
8 (P (CD) button
9 p (CD) button
10 TUNER/BAND button
11 FUNCTION button
12 MD/CD =0/)+ + button
13 MD/CD =0/)+ – button
14 CD indicator
15 6 (CD) button
16 LINE IN jack
17 r REC button
18 CD/MD SYNC button
19 Disc tray
20 REPEAT, STEREO/MONO button
21 PLAY MODE/TUNING MODE button
22 PHONES jack
23 Remote sensor
24 Display window
