Sony HCD-MD373 - CD Mechanism Section (CDM55 C-5 BD32)

83

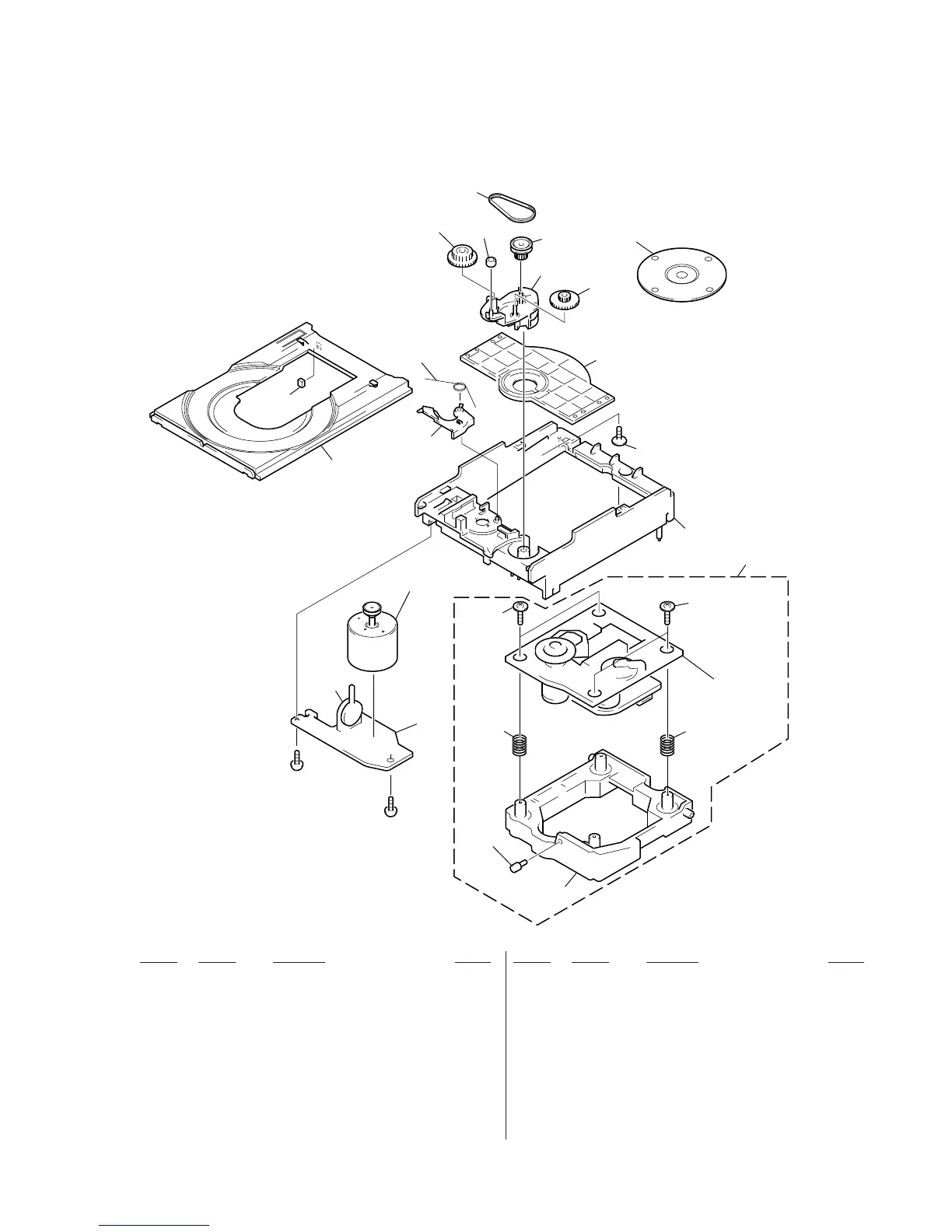

7-7. CD MECHANISM DECK (CDM55C-5BD32)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301
302
303
304
305
306
307
308
309
310
311
313
314
315
316
317
318
319
M103
S1
BU-5BD32
not supplied
#11
#11
302
303
313
314
314
314
301
317
316
316
318
315
M103
S1
(CDM identification: black colored holder (AT) (319), pulley (313) with magnet)
4-925-315-41 DAMPER
1-674-336-11 LOADING BOARD
4-224-894-11 TRAY (CDM55D)
4-220-229-01 LEVER (SW)
4-220-239-01 SPRING, TORSION
4-220-237-01 GEAR (A)
4-220-238-01 GEAR (B)
4-220-234-01 PULLEY (LDG)
4-221-815-11 ROLLER
4-220-233-01 CAM (CDM55)
4-221-816-11 BELT (CDM55)
1-452-925-21 MAGNET ASSY
4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
4-227-236-01 CHASSIS
4-923-109-01 SPRING (BU5), COMPRESSION
A-4672-993-A HOLDER (BU) ASSY
4-221-817-11 SHAFT (BU)
4-227-218-21 HOLDER (AT)
A-4672-771-A MOTOR (LD) ASSY (LOADING)
1-771-799-11 SWITCH, LEVER (SLIDE)(LOADING SWITCH)
Ver 1.1 2001.06
304
305
306
307
319
308
309
310
311
