Sony HCD-MD373 - MD Mechanism and Related Components Disassembly

23

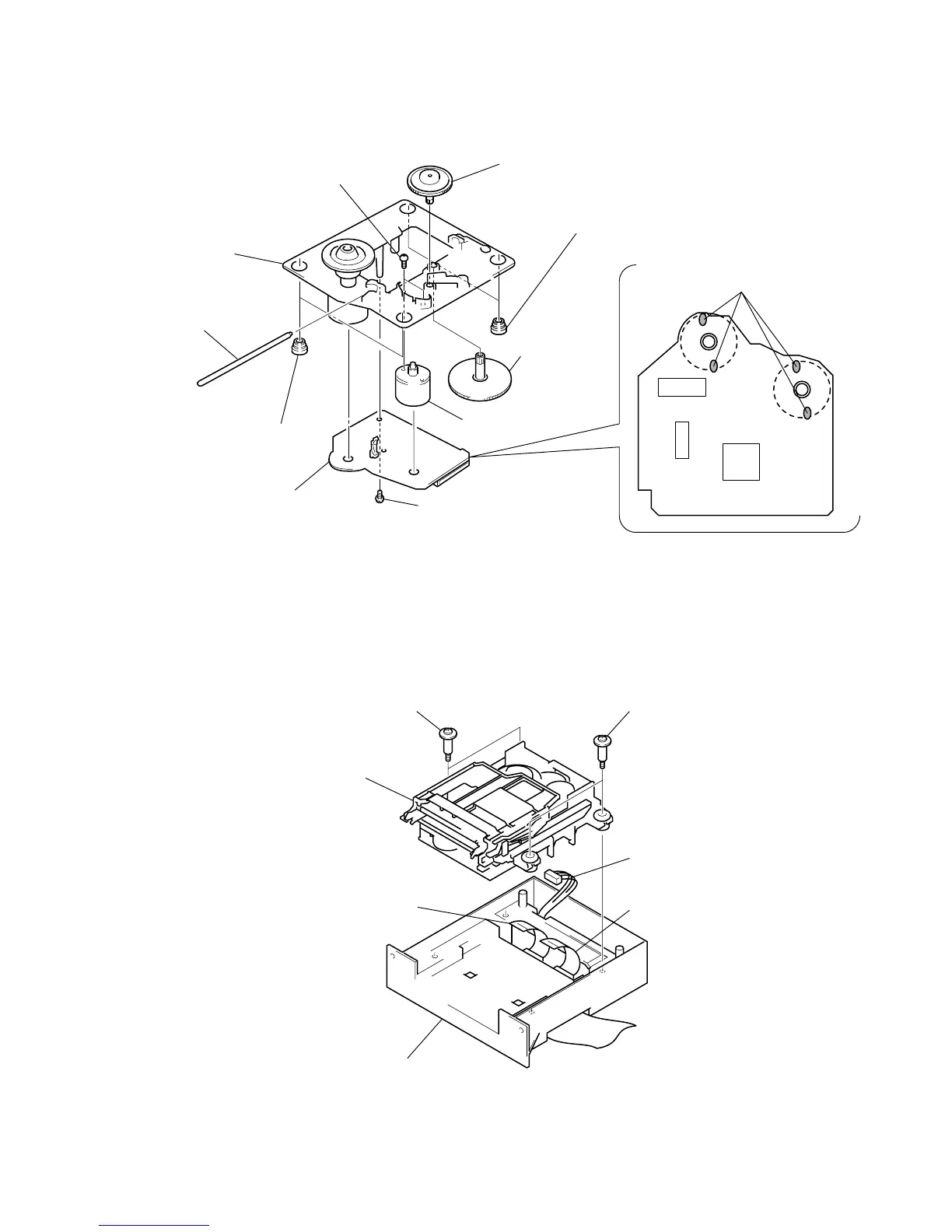

3-9. BD (CD) BOARD, SPINDLE MOTOR (M101) AND SLED MOTOR (M102)
IC102
IC101
M101
M102
IC103
2 Remove the four solders.
1 Screw
(BVTP 2.6x8)
!¡ Spindle motor
(M101)
5 Sled motor
(M102)
0 Sled shaft
6 Gear (M)
7 Flatness gear (P)
8 Two Insulators (BU)
9 Two Insulators (BU)
4 Two screws
(P 2x3)
3 BD (CD) board
3-10. MD MECHANISM DECK
2 Two Step screws
(BVTPWH M3)
4 Connector (7P)
6 Flat type wire
(23 core)
7 Bracket
(
MDM
)
5 Flat type wire
(21 core)
3 MD mechanism deck
1 Two Step screws
(BVTPWH M3)
