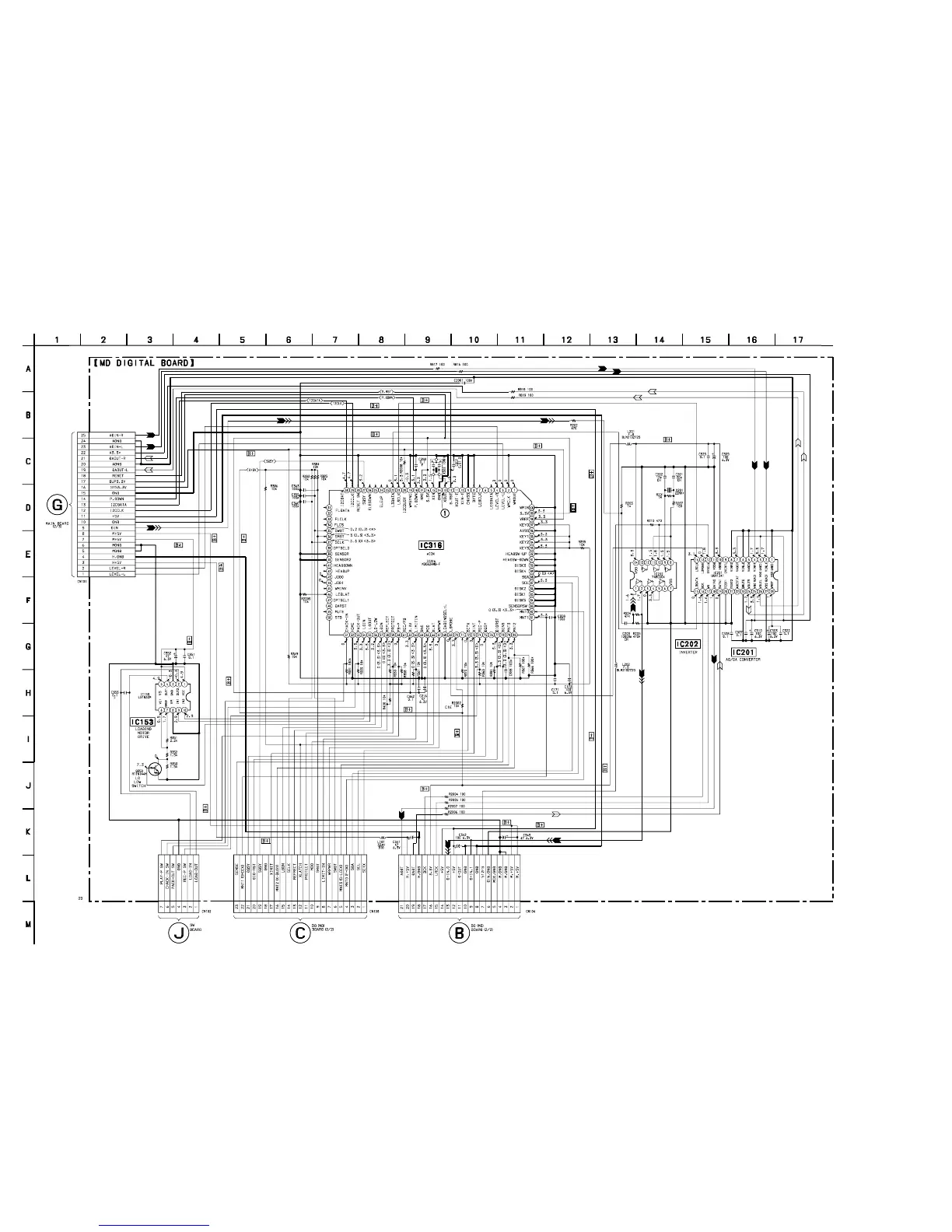

6-14. SCHEMATIC DIAGRAM – MD DIGITAL SECTION –
• See page 45 for Waveforms.
• See page 67 for IC Block Diagrams.
(Page 54)
(Page 64) (Page 50) (Page 50)
