Sony HCD-MD373 - Chassis Section

78

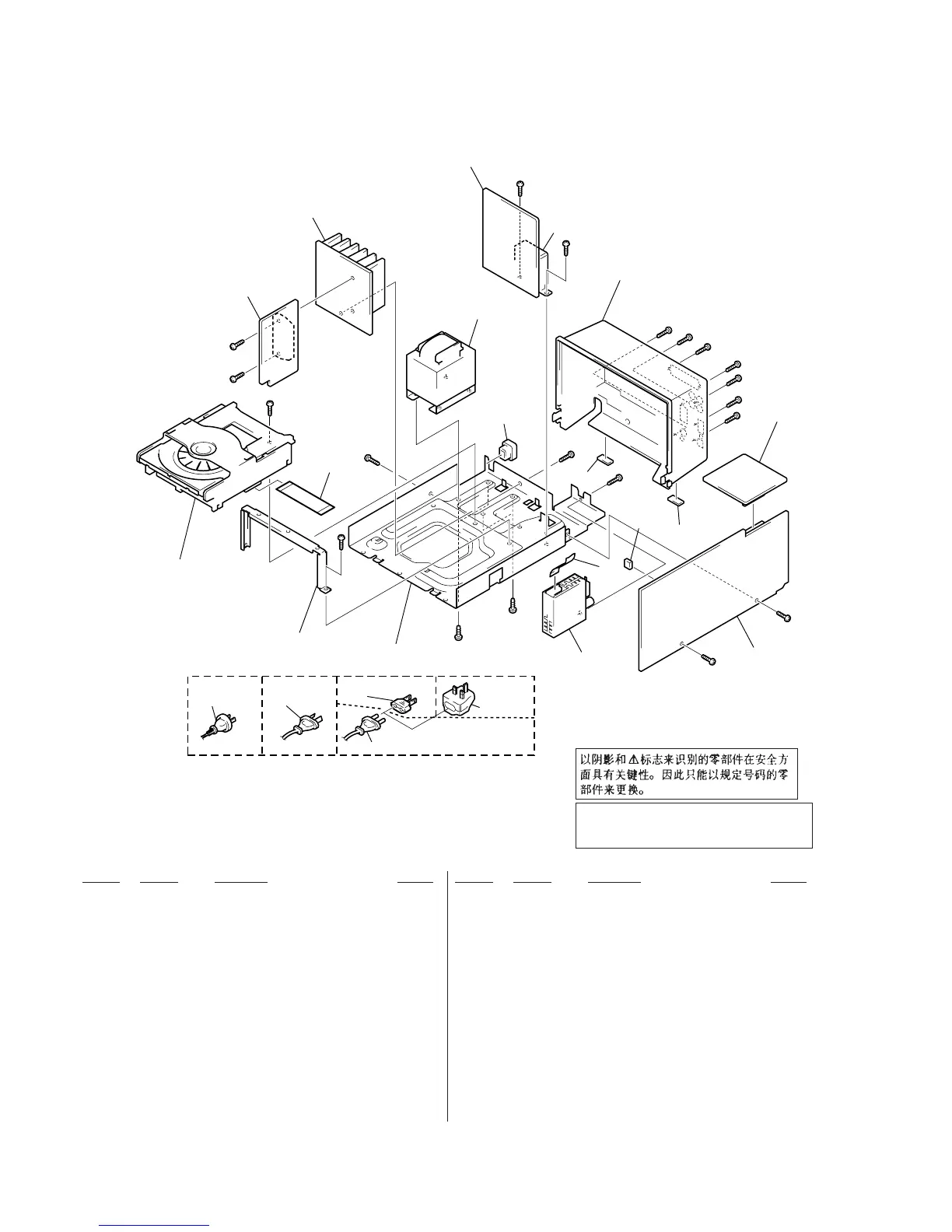

7-2. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 A-4426-076-A AMP BOARD, COMPLETE
52 A-4426-081-A POWER BOARD, COMPLETE (AEP,UK)
52 A-4426-088-A POWER BOARD, COMPLETE (EXCEPT AEP,UK)
53 4-221-082-11 PANEL, BACK (AEP,UK)
53 4-221-082-31 PANEL, BACK (EXCEPT AEP,UK)
* 54 4-930-336-71 FOOT (FELT)
55 1-674-628-11 SP BOARD
56 A-4426-080-A MAIN BOARD, COMPLETE (AEP,UK)
56 A-4426-087-A MAIN BOARD, COMPLETE
(AUS,AR,HK,MY,SP,KR,CH)
56 A-4426-756-A MAIN BOARD, COMPLETE (JE)
57 1-693-473-41 TUNER (EXCEPT JE)
58 3-703-244-00 BUSHING (2104), CORD
59 1-773-115-11 WIRE(FLAT TYPE) (19 CORE)
60 1-773-006-11 WIRE(FLAT TYPE) (15 CORE)
61 1-569-972-21 SOCKET, SHORT 2P
! 62 1-696-847-11 CORD, POWER (AUS)
! 62 1-769-744-11 CORD, POWER (AEP,UK,HK,JE,MY,SP,KR,CH)
! 62 1-783-941-11 CORD, POWER (AR)
63 1-569-008-21 ADAPTOR, CONVERSION 2P (JE)
63 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK,HK)
! T901 1-433-965-11 TRANSFORMER, POWER (AEP,UK)
! T901 1-433-966-11 TRANSFORMER, POWER (EXCEPT AEP,UK)
! T900 1-433-969-11 TRANSFORMER, SUB POWER (AEP,UK)
! T900 1-433-970-11 TRANSFORMER, SUB POWER (EXCEPT AEP,UK)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
CDM55A-5SBD32
#2
#3
#3
#2
not supplied
not supplied
not supplied
51
59
52
53
54
60
61
54
55
56
57
T901
T900
58
#
3
#3
#1
#3
#3
#1
#1
#1
#1
#1
#1
#1
#1
#3
#3
#3
EXCEPT AR,AUSARAUS
JE
UK,HK
63
63
6262
62
