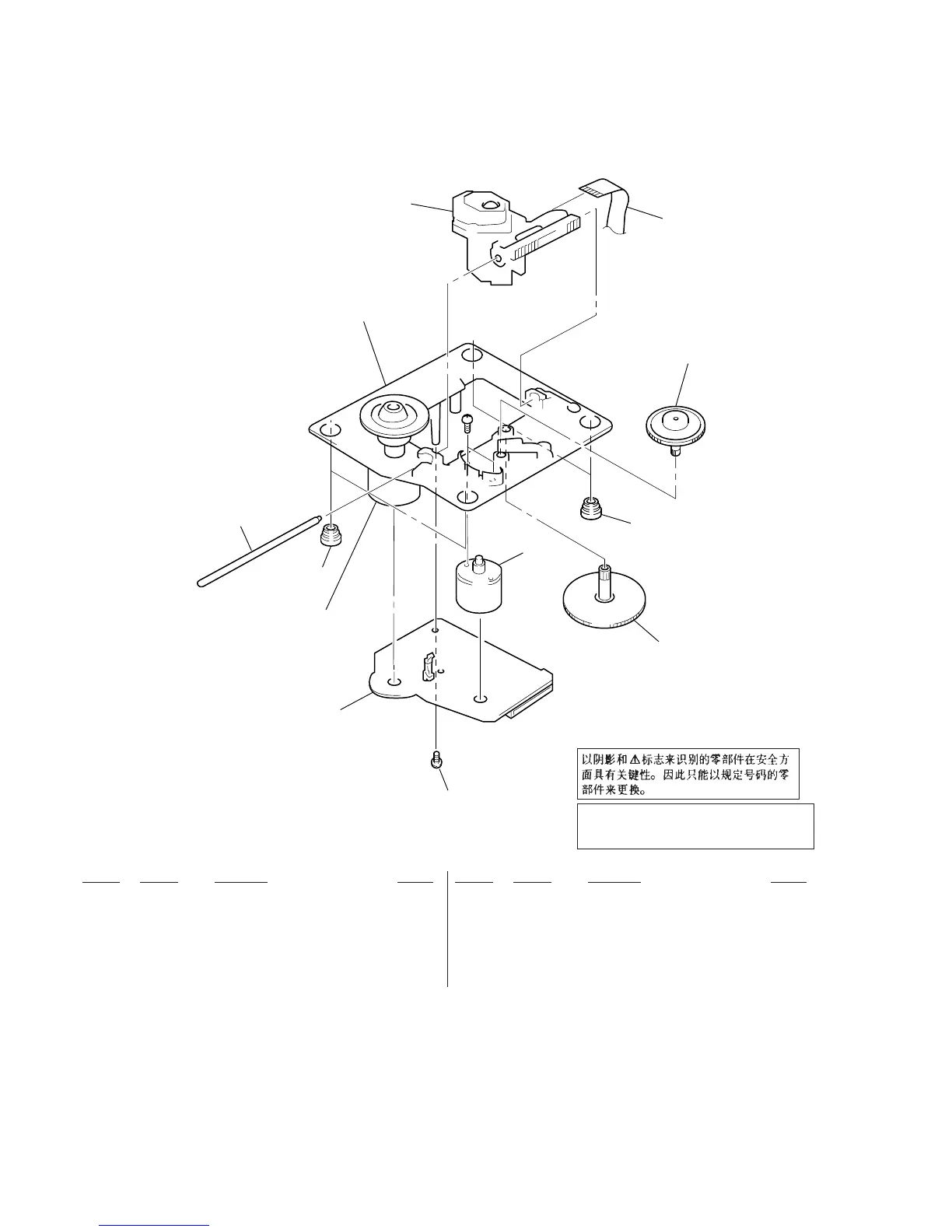

7-6. CD BASE UNIT (BU-5SBD32)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 4-951-620-01 SCREW (2.6X8), +BVTP
* 252 A-4724-375-A BD (CD) BOARD, COMPLETE
253 4-917-565-01 SHAFT, SLED
254 4-951-940-01 INSULATOR (BU)
!255 8-848-379-31 OPTICAL PICK-UP KSS-213BA/F-NP
256 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
257 4-917-567-01 GEAR (M)
258 4-917-564-01 GEAR (P), FLATNESS
M101 X-4952-989-1 BASE (OUTSART) ASSY (SPINDLE)
M102 A-4917-504-1 MOTOR ASSY (SLED)
The components identified by mark ! or dotted
line with mark ! are critical for safety .
Replace only with part number specified.
255
256
257
254
M102
258
251
252
254
M101
(including
r
C)
253
r
C
#9
(BU identification: black plastic turntable with magnet)
Ver 1.1 2001.06
