Sony HCD-MD373 - MD Mechanism Section (MDM-5 A)

79

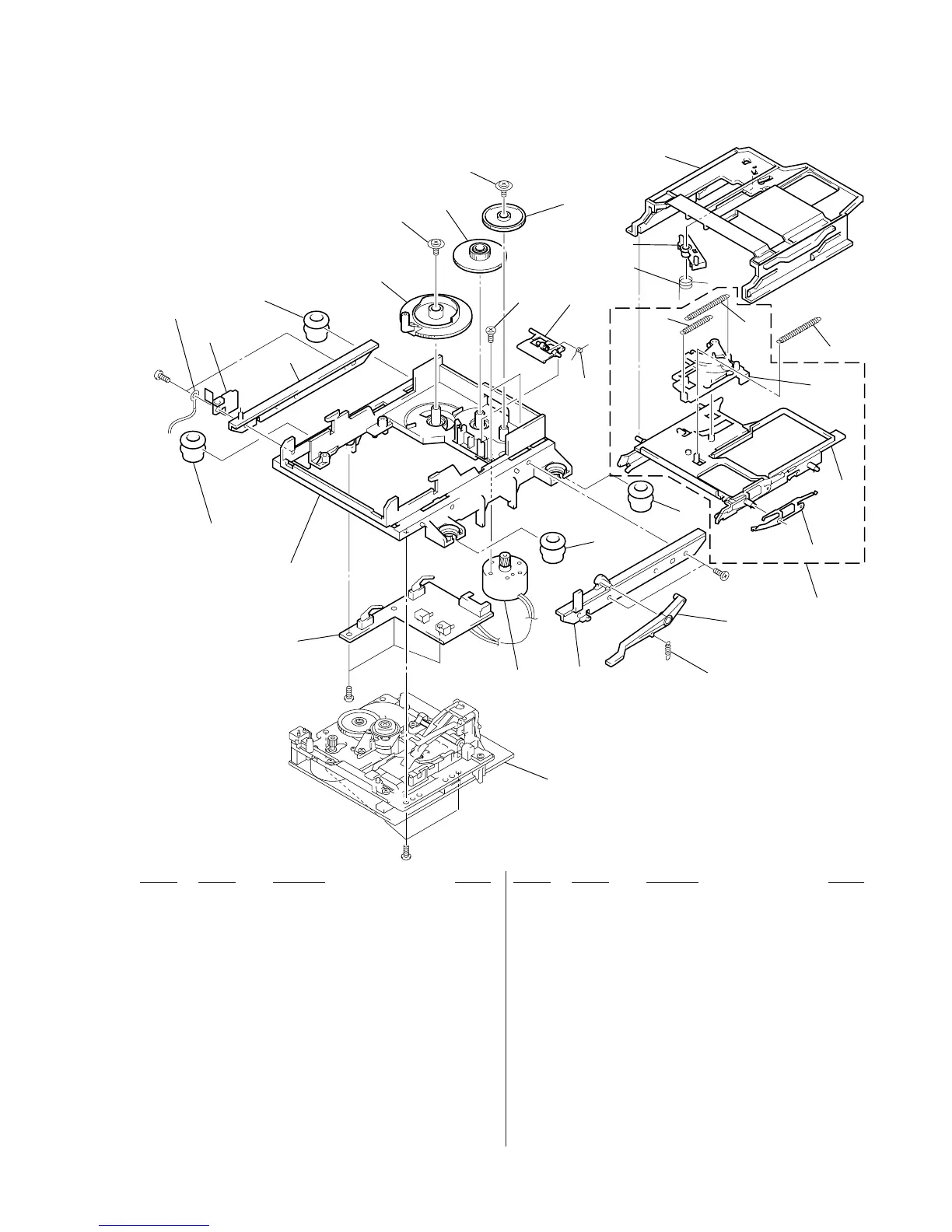

7-3. MD MECHANISM DECK (MDM-5A)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 101 1-668-111-11 SW BOARD
* 102 4-996-217-01 CHASSIS
103 4-996-223-01 INSULATOR (F)
* 104 4-996-218-01 BRACKET (GUIDE R)
105 4-996-277-01 SPRING (O/C), TENSION
106 4-996-226-01 LEVER (O/C)
107 4-999-347-01 INSULATOR (R)
* 108 4-996-225-01 BRACKET (GUIDE L)
109 4-988-466-21 SPRING (ELECTROSTATIC), LEAF
110 4-996-219-01 GEAR (CAM GEAR)
111 4-996-220-01 GEAR (A)
112 4-996-221-01 GEAR (B)
113 4-933-134-01 SCREW (+PTPWH M2.6X6)
114 4-996-224-01 SCREW (1.7X3), +PWH
115 4-996-227-01 LEVER (HEAD)
116 4-996-229-01 SPRING (HEAD LEVER), TORSION
117 4-996-212-01 LEVER (LIMITTER)
118 4-996-213-01 SPRING (LIMITTER), TORSION
119 4-996-214-01 SPRING (SLIDER), TENSION
120 4-996-216-01 SPRING (HOLDER), TENSION
121 4-210-396-01 SPRING (LOCK), TENSION
122 X-4951-631-1 SLIDER ASSY
* 123 X-4949-245-7 HOLDER ASSY
* 124 4-996-211-01 SLIDER (CAM)
125 4-998-763-01 SPRING (SHUTTER), LEAF
126 A-4680-417-A HOLDER COMPLETE ASSY
M903 X-4949-264-1 MOTOR ASSY, LOADING
#8
M903
#8
#8
not supplied
#4
MBU-5A
101
102
103
103
104
105
106
107
107
108
109
110
111
112
113
113
114
115
116
117
118
119
120
121
122
123
125
126
124
