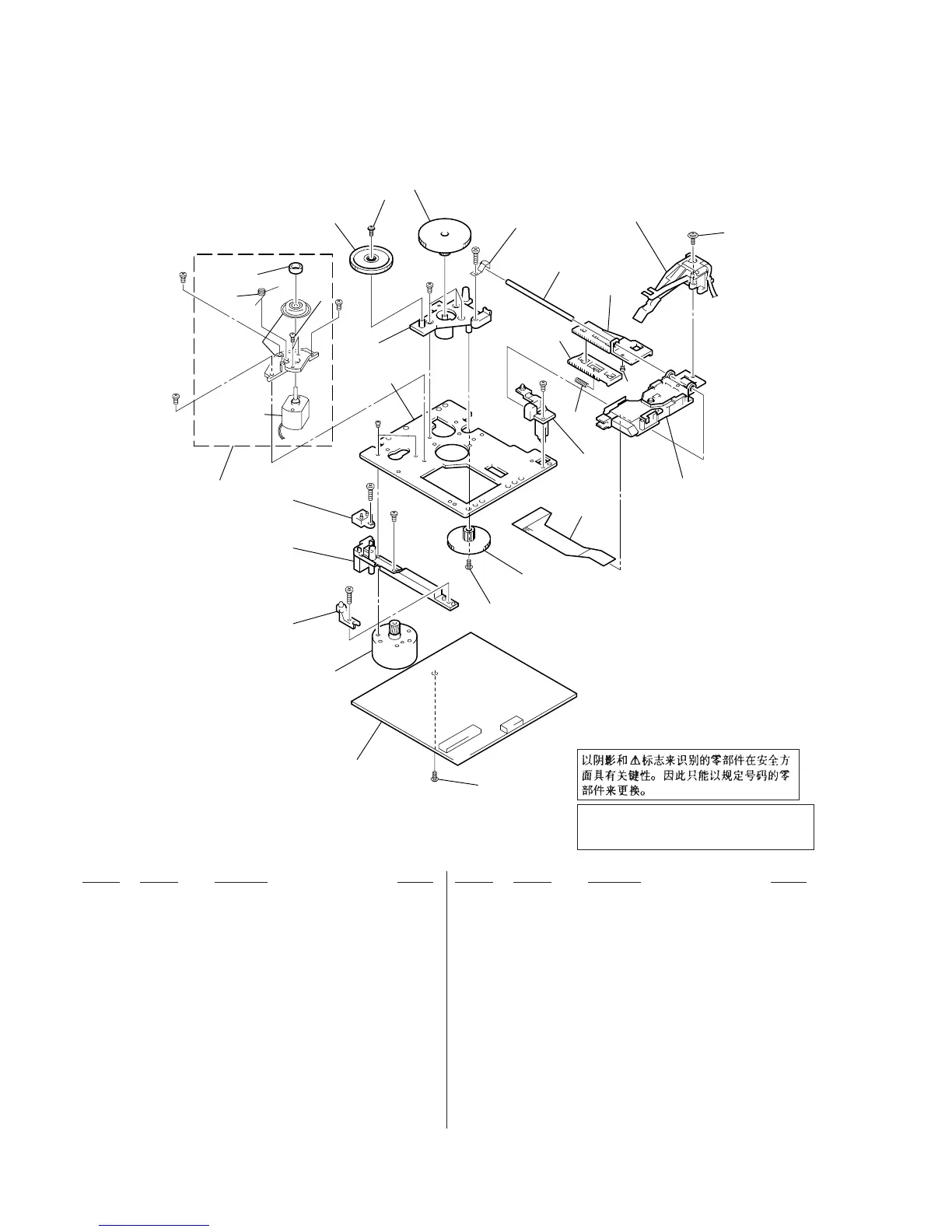

7-4. MD BASE UNIT (MBU-5A)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
* 151 A-4699-893-A BD (MD) BOARD, COMPLETE
152 3-372-761-01 SCREW (M1.7), TAPPING
* 153 4-996-267-01 BASE (BU-D)
* 154 4-996-255-01 BASE (BU-C)
155 4-900-590-01 SCREW, PRECISION SMALL
156 4-996-258-01 SPRING, COMPRESSION
157 4-996-262-01 GEAR (SL-C)
158 1-667-954-11 FLEXIBLE BOARD
* 159 4-210-664-01 BASE (BU-A)
! 160 8-583-058-01 OPTICAL PICK-UP KMS-260B/J1N
* 161 4-996-252-01 CHASSIS, BU
* 162 4-996-254-01 BASE (BU-B)
163 4-967-688-11 MAGNET, ABSORPTION
164 4-996-260-01 GEAR (SL-A)
165 4-996-261-01 GEAR (SL-B)
166 4-211-036-01 SCREW (1.7X2.5), +PWH
167 4-996-265-01 SHAFT, MAIN
168 4-996-256-01 SL(BASE)
169 4-996-257-01 RACK (SL)
170 4-996-263-01 SPRING (CLV), TORSION
171 4-988-560-01 SCREW (+P 1.7X6)
HR901 1-500-502-11 HEAD, OVER WRITE
HR901 1-500-502-21 HEAD, OVER WRITE
S901 1-762-148-21 SWITCH, PUSH (2 KEY)
M901 A-4672-474-A MOTOR ASSY, SLED
M902 A-4672-475-A MOTOR ASSY, SPINDLE
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
not supplied
not supplied
#7
#7
HR901
not supplied
#7
#7
#7
#7
#7
#6
#6
#5
151
152
152
153
154
S102
M901
152
157
158
159
160
161
162
163
166
170
164
165
167
168
169
156
155
171
M902
