22

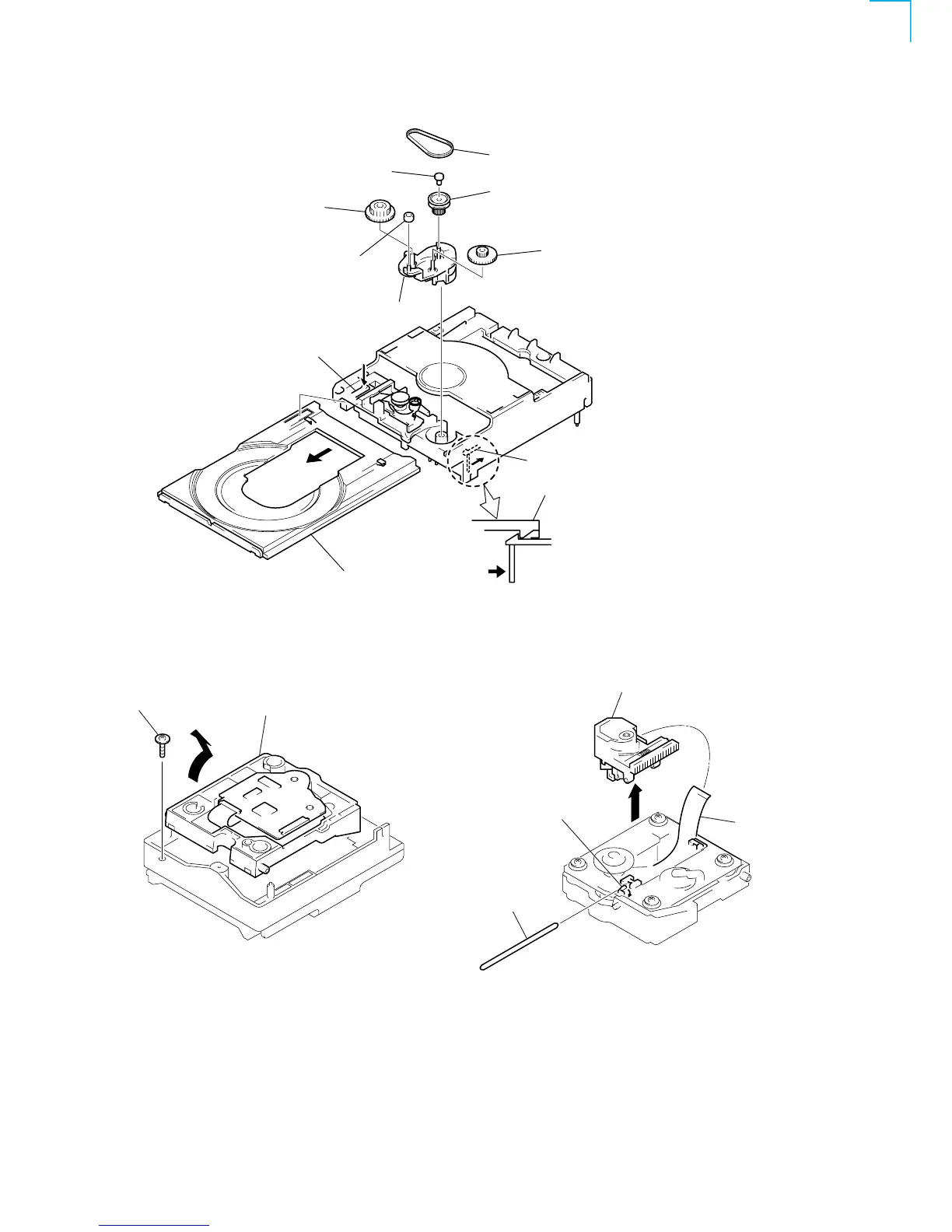

3-6. TRAY, GEAR AND CAM
4
Belt (CDM55)
6
Pulley (LDG)
9
Gear (A)
8
Gear (B)
7
Roller
2
Push the claw in tne
direction of arrow
C
.
0
Cam (CDM55)
3
Pull out the tray.
5
Bushing
C
A
B
B
Release
1
Pull out the tray in the arrow direction
A
,
and release the lock while pressing
this claw in the arrow direction
B
.
3-7. CD BASE UNIT
2
Remove the Holder (BU) assembly
in the direction of arrow
A
.
A
1
Floating screw
(PTPWH M2.6)
3-8. OPTICAL PICK-UP SECTION OF CD
(KSS-213BA/F-NP)
3
Optical pick-up (for CD)
4
Flat type wire
(16 core)
1
Release the lever in the
arrow direction
B
.
B
2
Sled shaft
To Next Page
