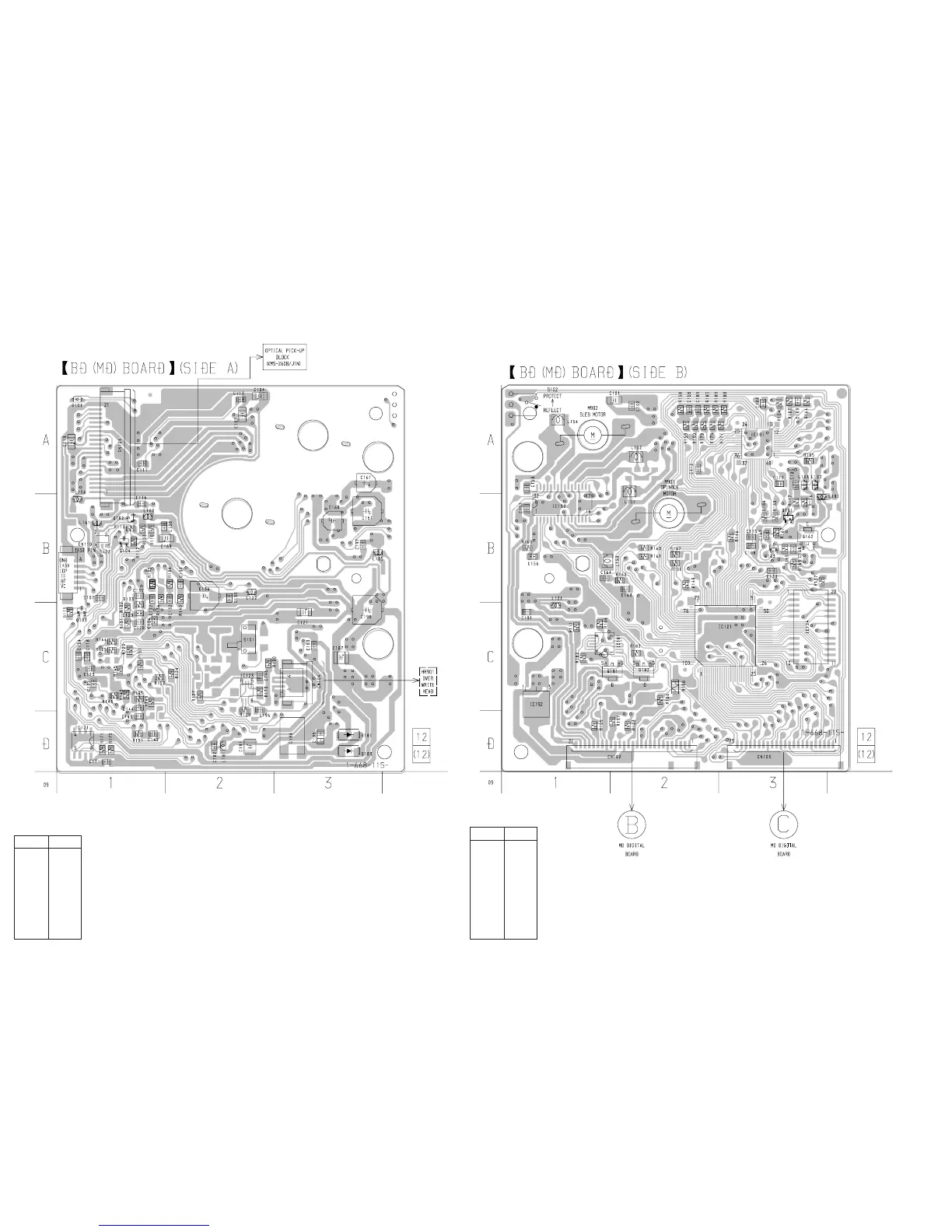

6-5. PRINTED WIRING BOARD – BD (MD) SECTION –
• See page 40 for Circuit Boards Location.
IC101 A-3
IC121 C-3
IC124 C-3
IC152 B-1
IC181 C-1
IC192 C-1
Q101 B-3
Q162 B-3
Q163 B-3
Q181 C-2
Q182 C-2
Ref. No. Location
• Semiconductor
Location
D101 A-1
D181 D-3
D183 D-3
IC103 B-1
IC123 D-2
IC171 D-1
Q102 B-1
Q103 C-1
Q104 B-1
Ref. No. Location
• Semiconductor
Location
(Page 57) (Page 57)
