HCD-MD373
46 46

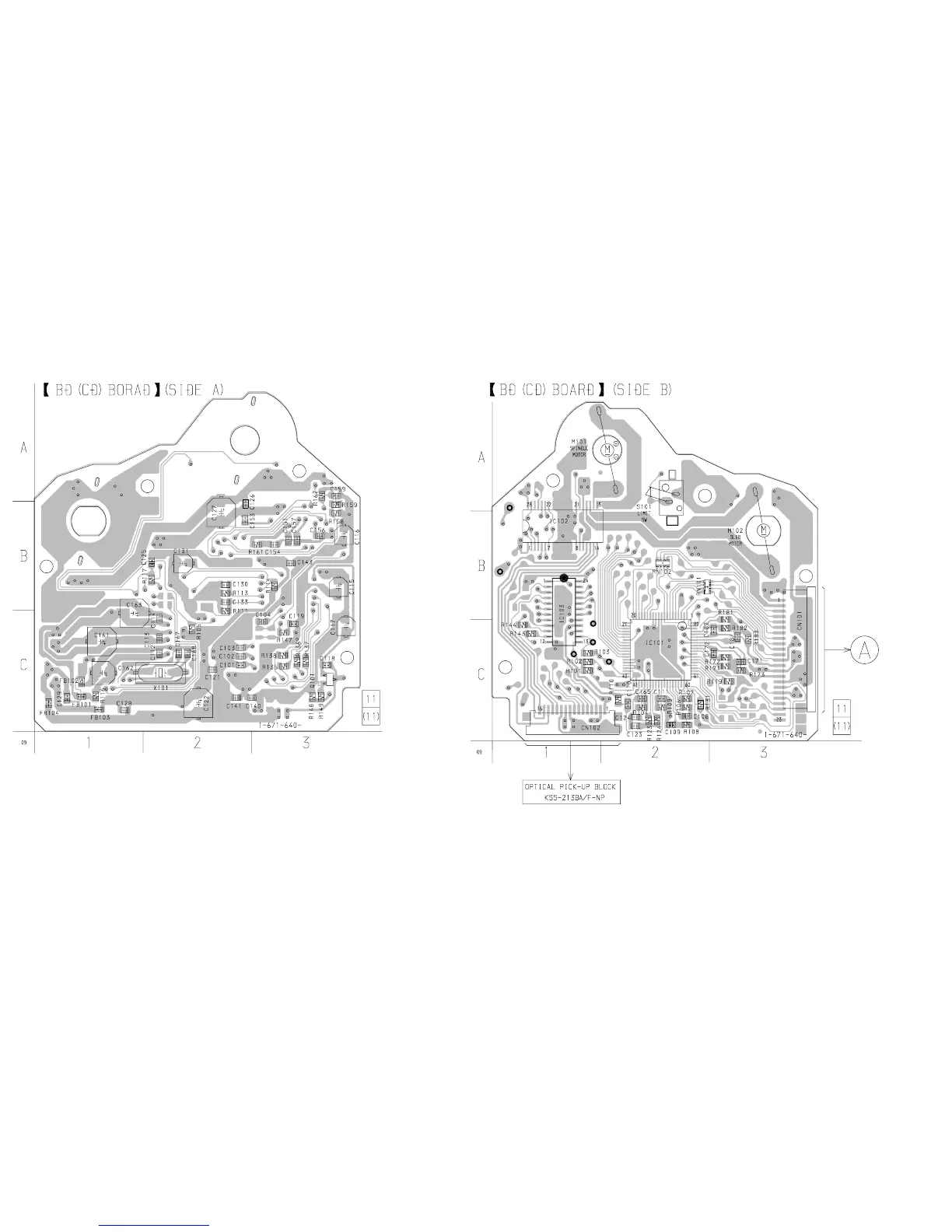

6-3. PRINTED WIRING BOARD – BD (CD) SECTION –
• See page 40 for Circuit Boards Location.
(Page 52)
MAIN BOARD
TP
(VC)
TP
(RF)
TP
(AGC CON)
TP
(FE)
TP
(TE)
TP
(TEI)
