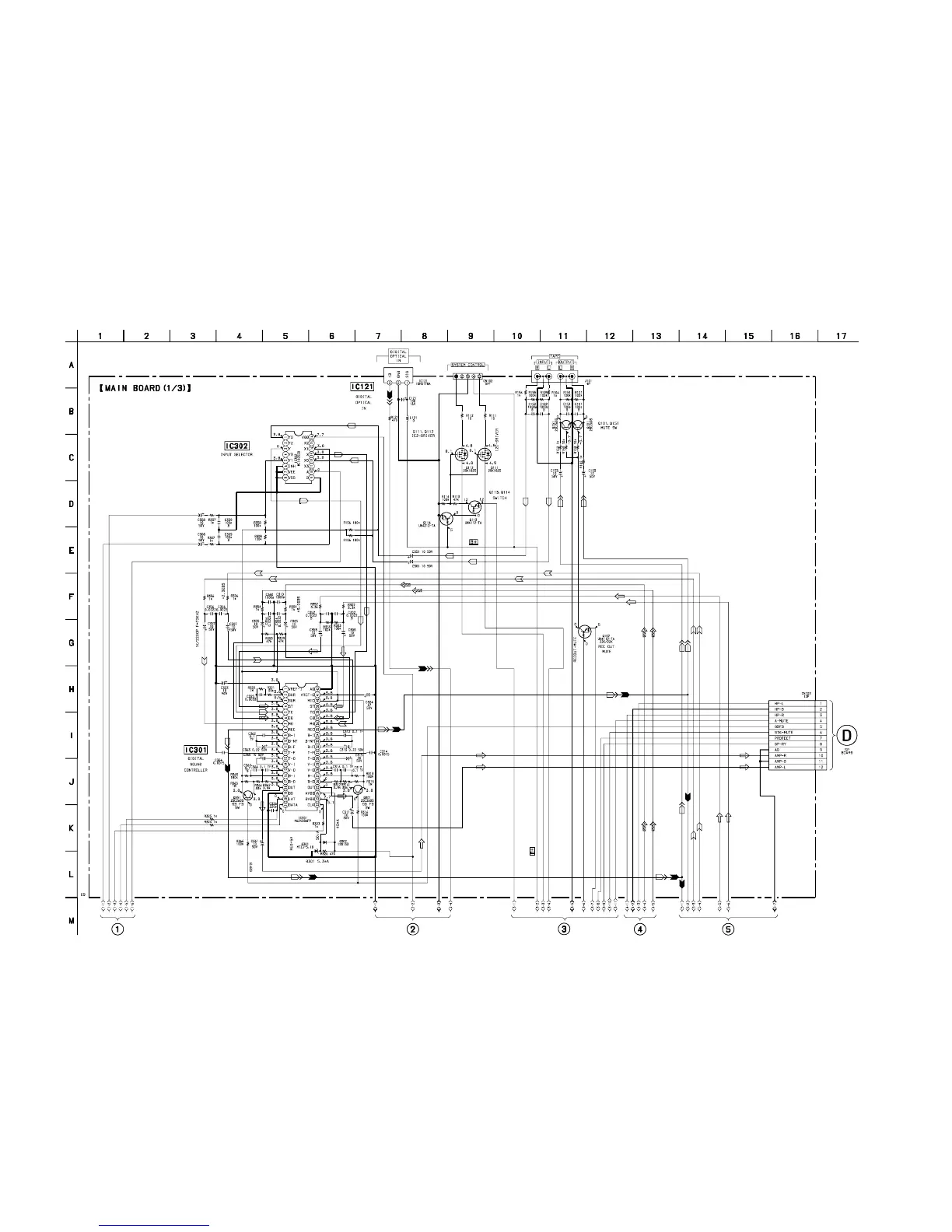

6-11. SCHEMATIC DIAGRAM – MAIN SECTION (1/3) –
• See page 68 for IC Block Diagrams.
(Page 55) (Page 54) (Page 54) (Page 55) (Page 54)
(Page 51)
