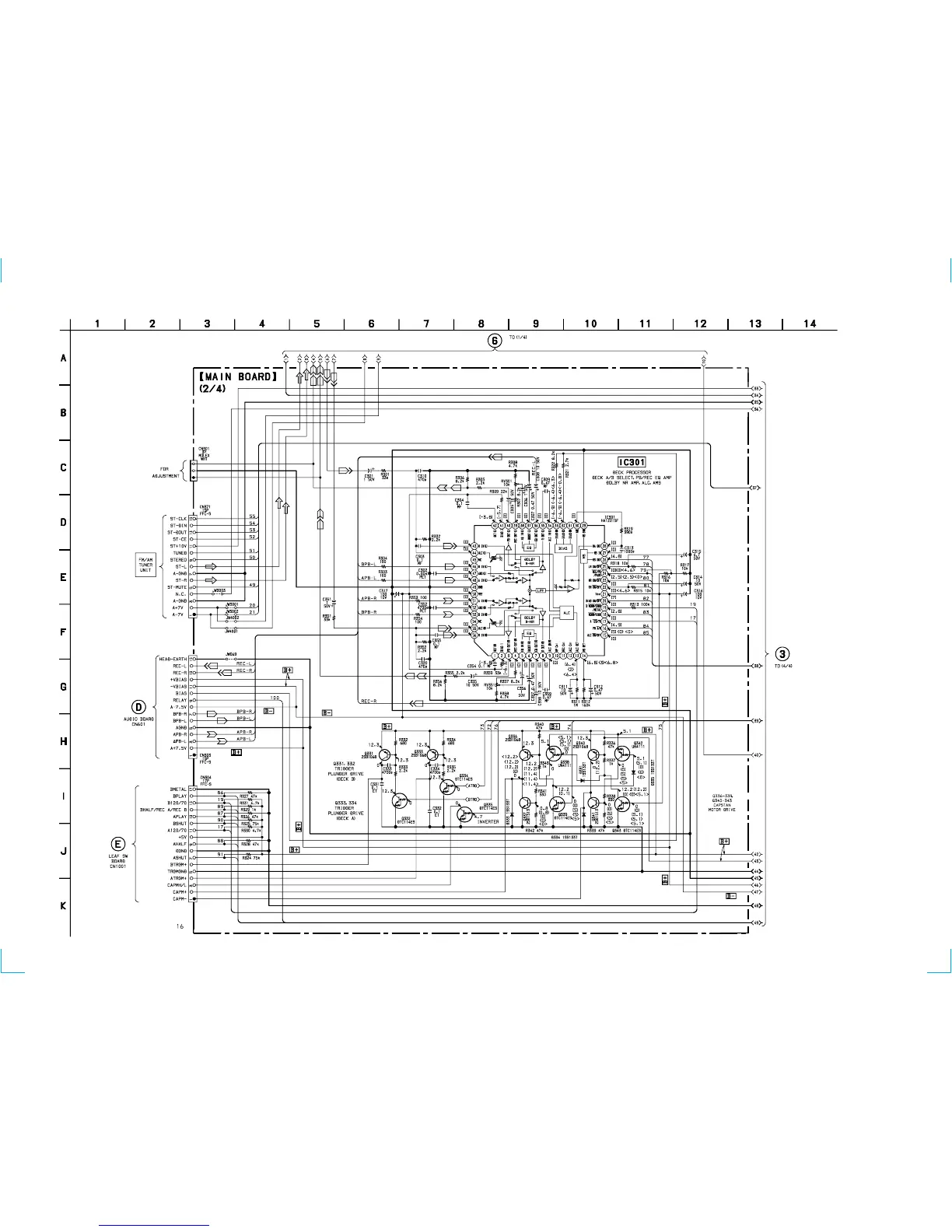

7-5. SCHEMATIC DIAGRAM MAIN SECTION (2/4)
(Page 35)
(Page 40)
(Page 29)
NOTE
• Voltages and waveforms are dc with respect
to ground under no-signal conditions.
no mark : FM
( ) : CD
{ } : PB (DECKA)
[ ] : PB (DECKB)
< >: REC
(Page 26)
• Refer to page 25 for Printed Wiring Board.
