Sony HCD-VX3A - Chassis Section; Ref. no; Part no; Description Remarks

61

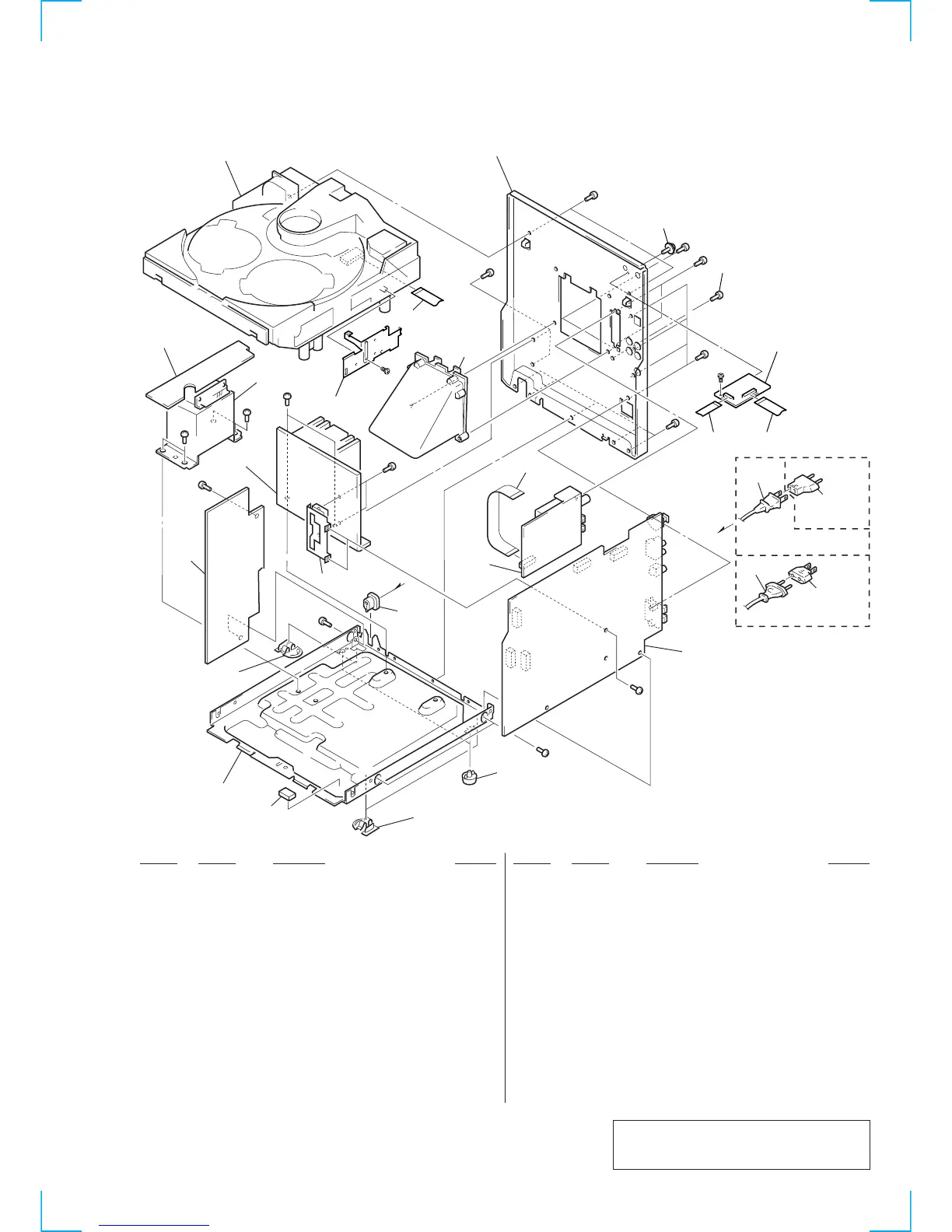

8-3. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
* 102 3-703-244-00 BUSHING (2104), CORD
103 1-672-969-11 AC SEC BOARD
104 4-216-856-01 DUCT
105 A-4724-727-A VIDEO BOARD, COMPLETE (EXCEPT TH)
105 A-4724-825-A VIDEO BOARD, COMPLETE (TH)
106 1-775-212-11 WIRE (FLAT TYPE)(23 CORE)
107 4-214-432-41 BACK PANEL (TH)
107 4-214-432-31 BACK PANEL (EXCEPT TH)
108 1-773-008-11 WIRE (FLAT TYPE)(15 CORE)
109 1-233-545-14 ENCAPSULATED COMPONENT (TH)
109 1-233-546-11 TUNER (FM/MW/SW)(EXCEPT TH)
110 A-4405-974-A MAIN BOARD, COMPLETE (EA/E/JE/MY/SP/TW)
110 A-4424-103-A MAIN BOARD, COMPLETE (IA)
110 A-4424-105-A MAIN BOARD, COMPLETE (TH)
111 4-965-822-01 FOOT
112 1-690-589-31 WIRE(FLAT TYPE)(13 CORE)
! 114 1-575-653-11 CORD, POWER (EXCEPT EA)
! 114 1-777-071-21 CORD, POWER (EA)
! 115 1-569-007-11 ADAPTOR, CONVERSION 2P (JE/IA)
! 115 1-569-008-21 ADAPTOR, CONVERSION 2P (EA)
116 4-985-642-01 CUSHION
118 A-4419-037-A ST-BY BOARD, COMPLETE (EXCEPT TH)
118 A-4419-965-A ST-BY BOARD, COMPLETE(TH)
119 4-221-078-01 SCREW +BSW 3 × 20(S)
120 4-909-982-11 SCREW, TAPPING
121 4-981-789-01 BRACKET (2), YOKE
122 4-216-851-01 COVER (LIZ)
! T11 1-433-902-11 TRANSFORMER, POWER
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
#2
#2
not supplied
107
106
106
104
#3
#1
#2
#2
#2
CDM38L-5BD34L
#1
#1
#2
T11
#2
not supplied
not supplied
not supplied
#2
#3
#3
A
#3
103
118
102
108
119
109
111
122
122
116
110
A
EXCEPT EA
EA
JE,IA
115
114
115
114
105
121
120
112
