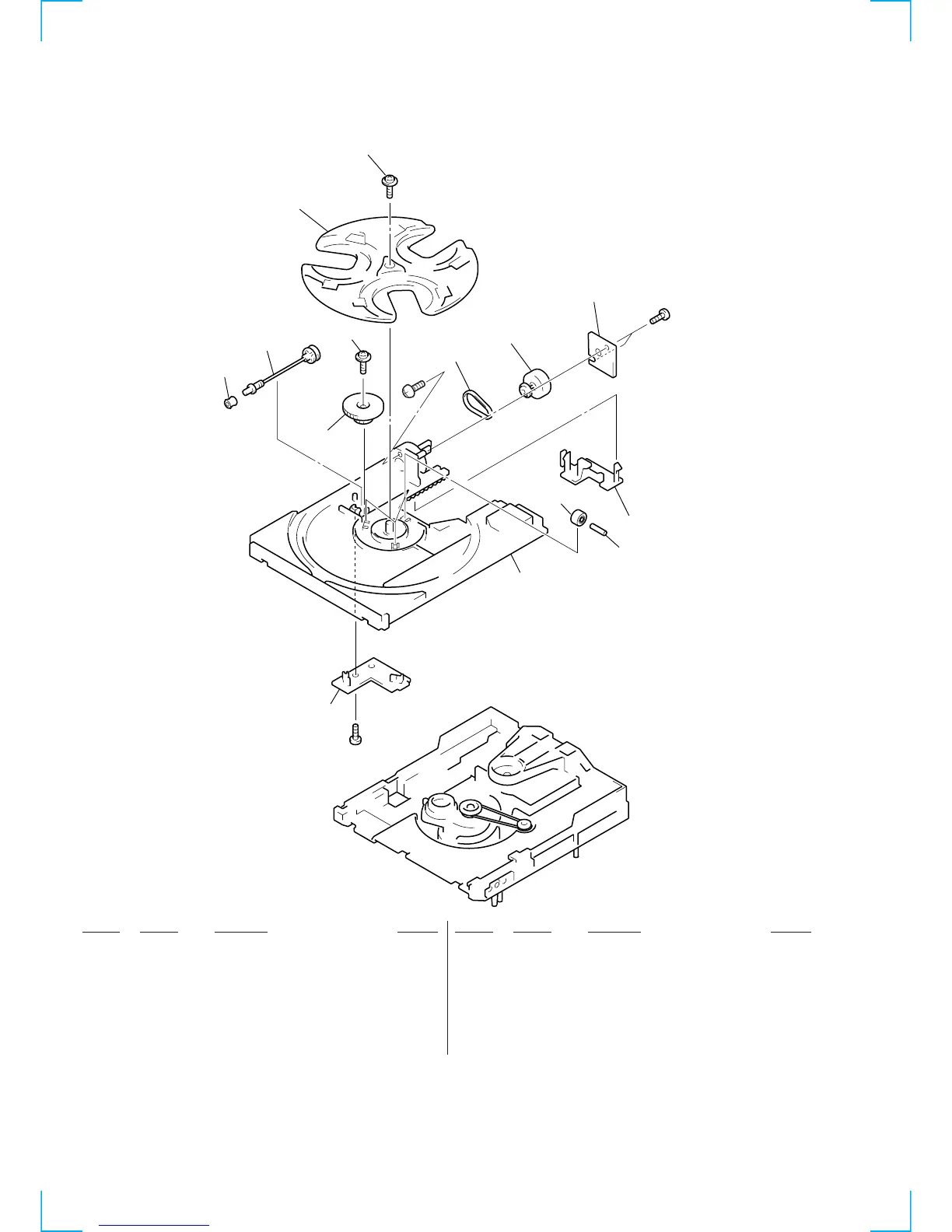

8-4. CD MLH-5BDECHANISM DECK SECTION-1
(CDM38L-5BD34L)
#8
M701
#2
#2
211
204
205
206
209
210
207
208
212
203
202
202
201
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
201 4-977-954-01 TRAY (TURN)(IA)
201 4-977-954-63 TRAY (TURN)(EXCEPT IA)
202 4-917-583-71 BRACKET, YOKE
203 X-4946-665-1 SHAFT ASSY, WORM
204 4-977-943-01 BELT (TURN)(1.2)
205 4-977-956-01 WHEEL, WORM
* 206 1-658-577-11 MOTOR (TURN) BOARD
207 4-988-162-01 ROLLER
208 4-977-941-01 BEARING (WORM)
* 209 1-658-576-11 SENSOR BOARD
210 4-934-376-01 SHAFT (ROLLER)
211 4-981-187-01 COLLAR (WORM)
212 4-977-944-01 TRAY (SLIDE)
M701 A-4672-004-A MOTOR ASSY(TURN)
