Sony HCD-VX3A - Printed Wiring Board Main Section

HCD-VX3A
25 25

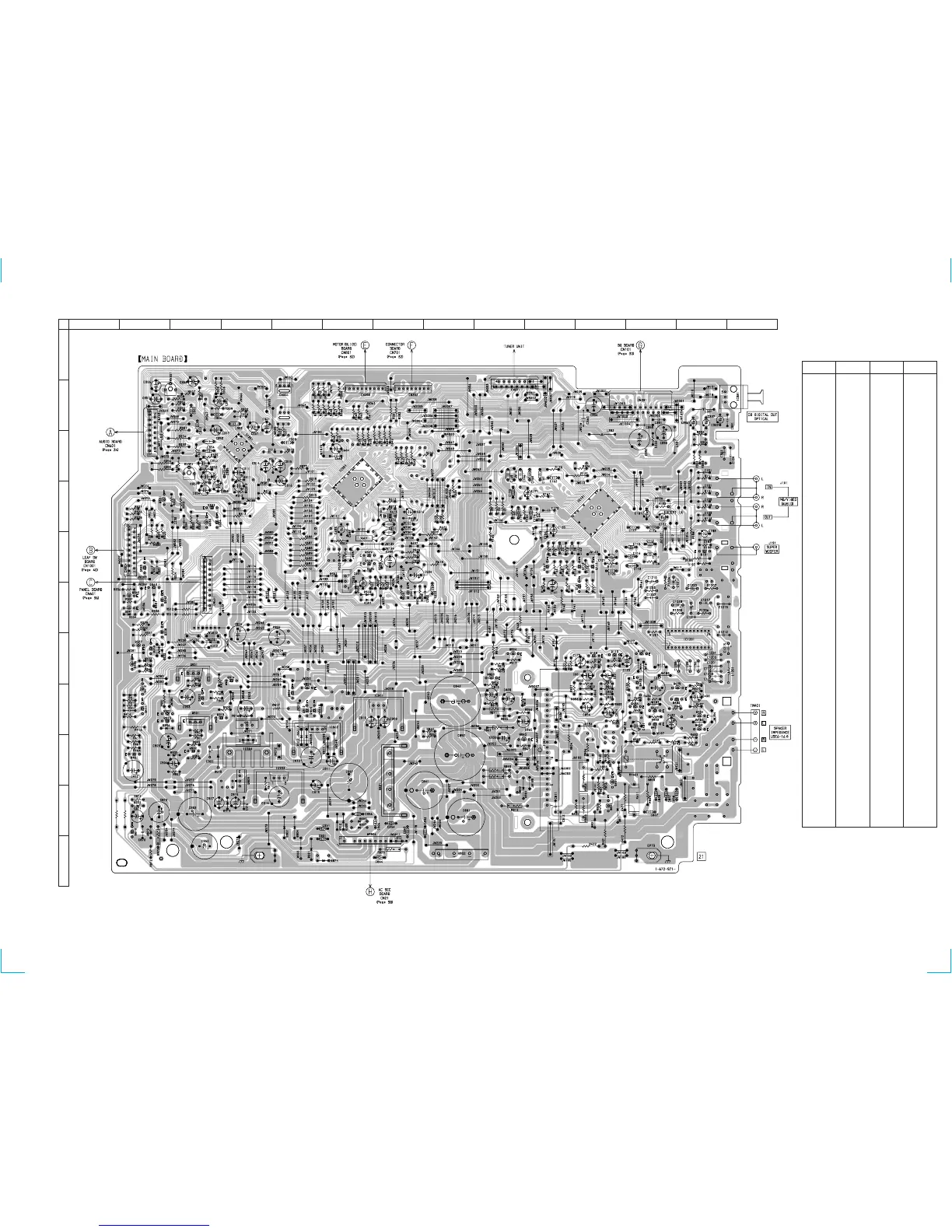

7-3. PRINTED WIRING BOARD MAIN SECTION
Ref. No. Location
• Semiconductor Location
Ref. No. Location
D141 F-11
D191 G-10
D331 F-2
D333 G-2
D334 F-2
D335 G-2
D401 I-11
D411 H-2
D501 F-6
D502 E-6
D503 F-6
D504 F-6
D505 E-6
D506 F-7
D507 F-9
D509 G-3
D607 E-7
D801 J-11
D802 J-10
D803 I-12
D831 I-7
D832 K-8
D851 J-11
D852 I-9
D865 H-9
D870 J-2
D872 J-2
D874 K-6
D901 K-5
D902 J-5
D903 K-5
D904 J-5
D905 I-3
D906 H-3
D907 J-6
D908 J-6
D909 J-6
D910 J-6
D911 I-6
D912 I-5
D913 I-5
D915 J-4
D918 I-4
IC101 D-11
IC301 C-4
IC381 B-14
IC501 C-6
IC502 E-6
IC801 I-10
IC901 H-7
IC902 H-5
IC903 I-5
IC904 I-4
IC1201 G-13
Q111 E-11
Q112 E-11
Q113 G-11
Q161 E-11
Q162 E-10
Q163 G-11
Q191 E-13
Q192 G-12
Q331 D-2
Q332 D-3
Q333 D-3
Q334 D-3
Q335 E-2
Q336 G-2
Q337 G-2
Q338 F-2
Q339 G-2
Q340 F-2
Q341 F-2
Q342 F-2
Q343 F-2
Q411 H-2
Q412 H-2
Q431 H-12
Q432 H-13
Q433 H-13
Q434 H-13
Q435 G-12
Q436 H-12
Q437 H-12
Q439 G-13
Q461 I-2
Q501 F-7
Q508 E-6
Q509 E-6
Q801 J-11
Q803 G-9
Q804 G-9
Q851 I-11
Q865 H-9
Q870 J-2
Q901 H-3
Q902 I-3
Q903 H-3
Q904 H-5
Q905 H-5
Q909 I-4
Q911 H-4
Q912 H-5
Q913 H-4
Q914 G-4
Q923 H-3
Q951 G-3
Q952 H-3
• Refer to page 18 for Circuit Boards Location.
R473 R423
16
D913
12
A
B
C
D
E
F
G
H
I
J
K
3 4 5 6 7 8 9 1011121314
