Sony HCD-VX3A - TC Mechanism Section-2(TCM-230 AWR2;230 PWR2)

66
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
451 X-3374-214-1 CHASSIS ASSY, MAIN (IA)
* 451 X-3374-214-3 CHASSIS ASSY, MAIN (EA/E/JE/MY/SP/TW/TH)
452 3-016-570-01 BELT (CAPSTAN)
453 3-016-569-01 BELT (TENSION)
454 3-017-360-01 BRACKET (MOTOR)
455 X-3376-497-1 FLYWHEEL (FWD) ASSY
456 X-3374-235-1 FLYWHEEL (REV) ASSY
457 X-3374-238-1 PULLEY ASSY, TENSION
458 3-024-405-01 BELT (FR2)
459 A-2004-629-A MECHANICAL BLOCK ASSY(230AWR2)(*NOTE)
459 A-2004-629-B MECHANICAL BLOCK ASSY(230PWR2)(*NOTE)
460 3-016-566-01 SLIDER, REVERSE
* 461 A-2007-732-A LEAF SW BOARD, COMPLETE (EXCEPT IA)
461 A-2007-800-A LEAF SW BOARD, COMPLETE (IA)
462 3-016-575-11 SPRING, TORSION
463 3-019-208-01 WASHER, STOPPER
464 3-027-453-01 SPRING (GROUND), TENSION
465 3-030-823-01 SCREW (+BVTT) (2 × 3.5)
M1 A-2004-628-A MOTOR ASSY, CAPSTAN

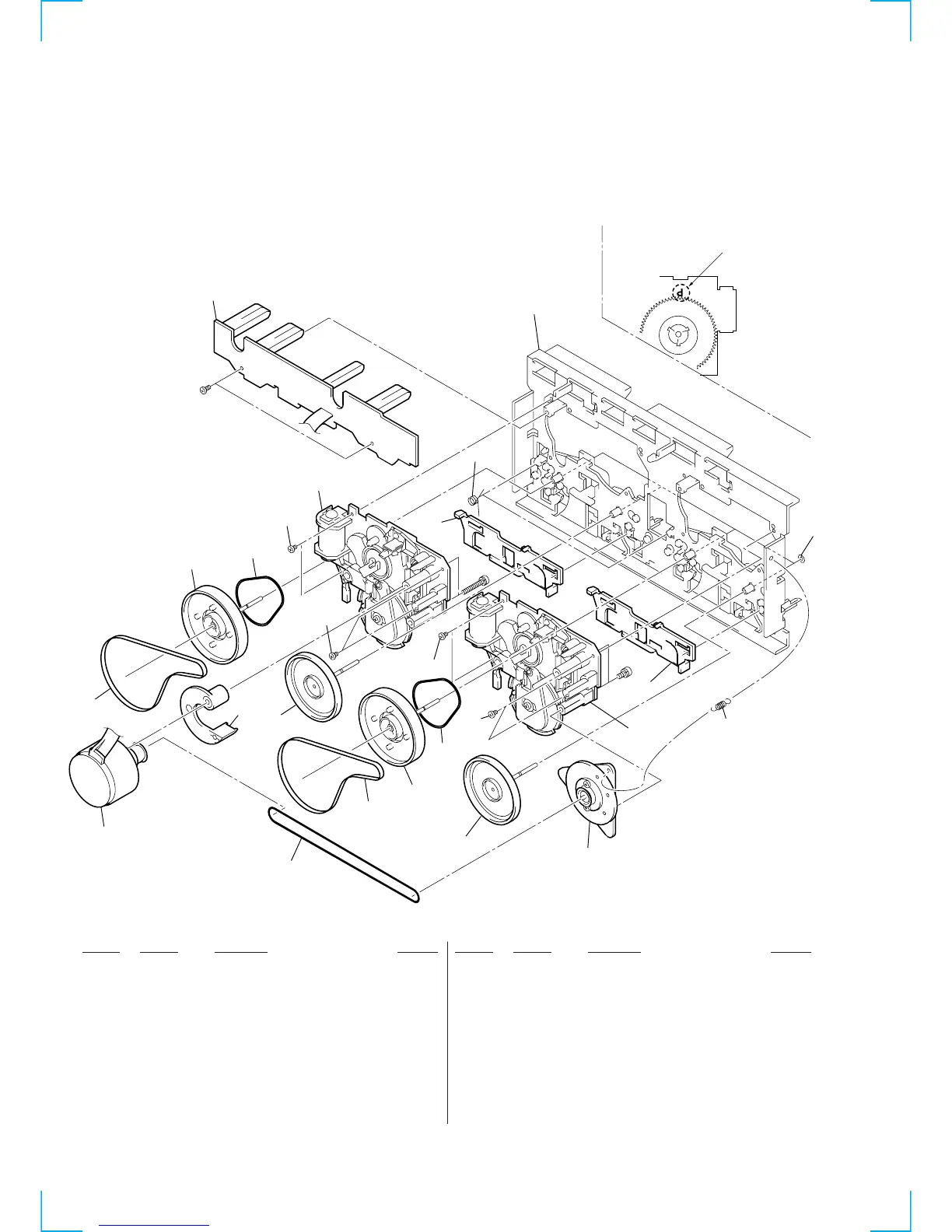

8-8. TC MECHANISM SECTION-2 (TCM230AWR2/230PWR2)
451
452
452
453
454
455
455
456
456
457
458
465
465
465
465
458
459
459
464
460
460
461
462
463
M1
#11
#12
#9
*NOTE: Two types of parts which are not interchangeable are available
for the mechanical block assembly. When replacing the parts,
refer to the following figure, and use the appropriate part.
Parts with “P” mark: 230PWR2
Parts without “P” mark: 230AWR2
