HCD-VX3A
31 31

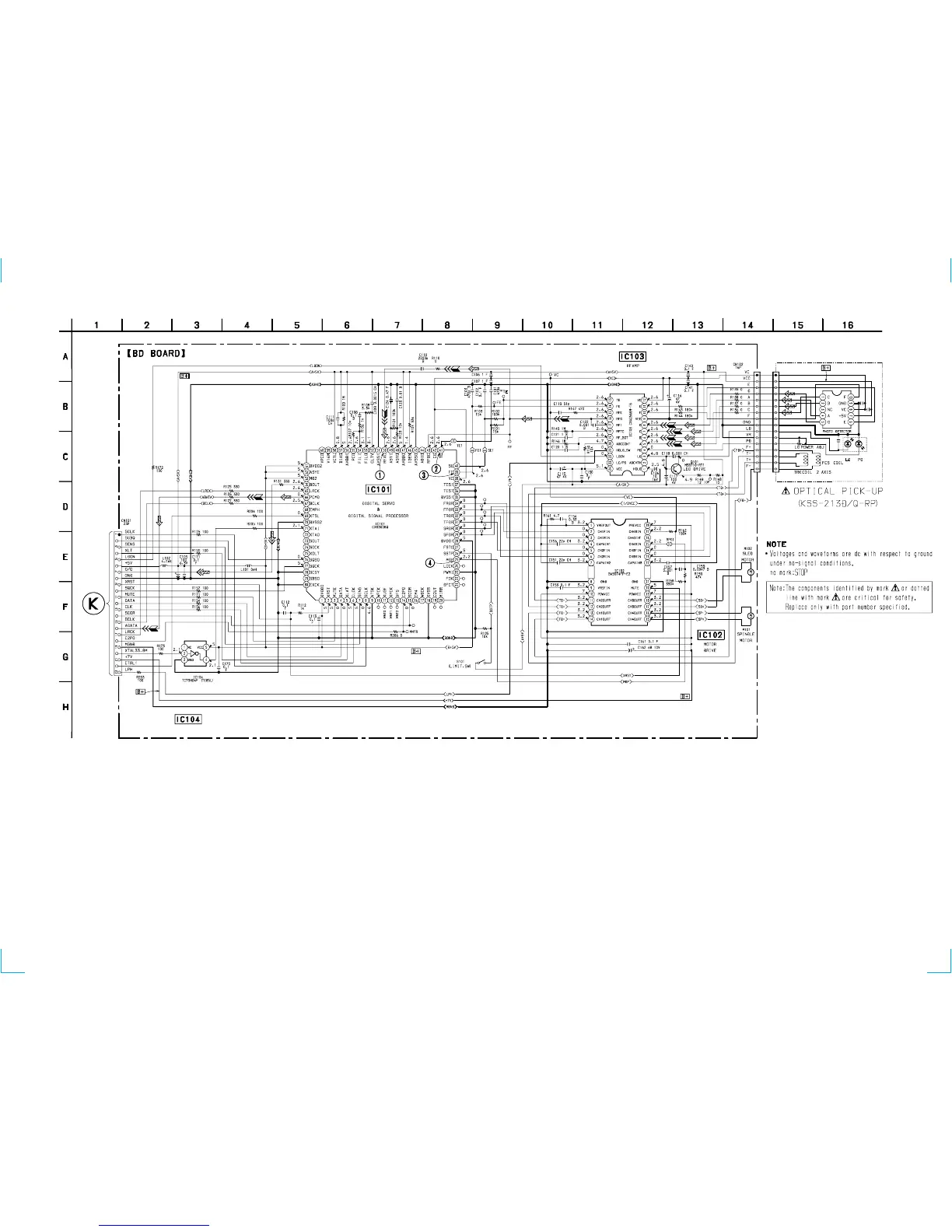

7-9. SCHEMATIC DIAGRAM CD SECTION
(Page 43)
16
• Refer to page 24 for Waveforms. • Refer to pages 46, 47 for IC Block Diagrams.
