Sony HCD-VX3A - 8 Exploded Views; Case Section

59
SECTION 8
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
EA : Saudi Arabia model
MY : Malaysia model
SP : Singapore model
IA : Indonesia model
TH : Thai model
TW : Taiwan model
JE : Tourist model
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.

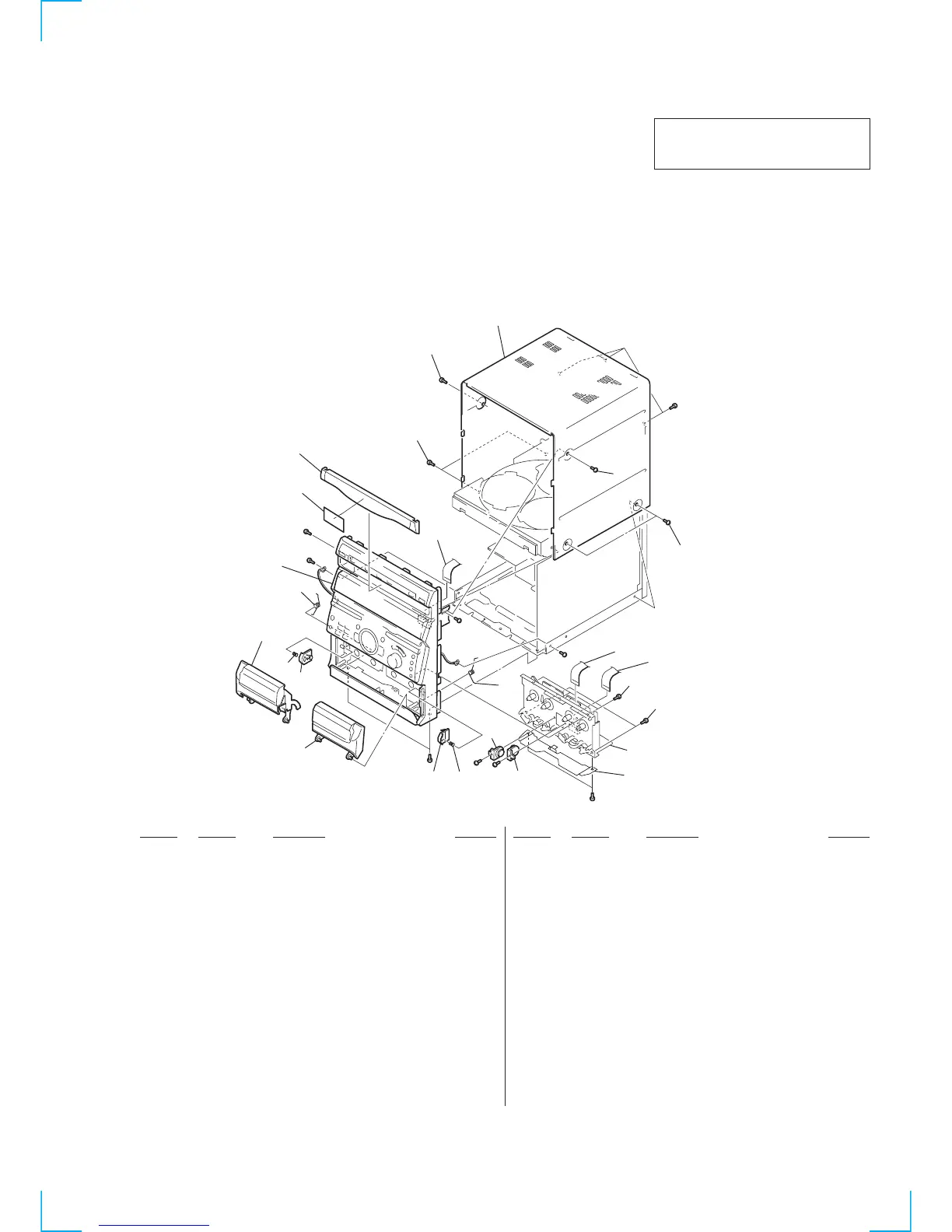

8-1. CASE SECTION
TCM-230AWR2
/
230PWR2
not supplied
9
8
8
7
10
11
7
5
3
4
12
14
1
2
1
6
#3
#5
#13
#15
#15
#13
#14
#3
#3
Front panel
15
13
12
15
16
16
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 4-219-087-01 SPRING, TENSION
2 X-4950-698-1 HOLDER (R) ASSY, CASSETTE (IA)
2 X-4950-832-1 HOLDER (R) ASSY, CASSETTE (TH)
2 X-4950-971-1 HOLDER (R) ASSY, CASSETTE (EA/E/JE)
2 X-4951-068-1 HOLDER (R) ASSY, CASSETTE (MY/SP/TW)
3 4-991-781-01 EMBLEM (VCD)
4 X-4950-697-1 HOLDER (L) ASSY, CASSETTE (IA)
4 X-4950-828-1 HOLDER (L) ASSY, CASSETTE (TH)
4 X-4950-970-1 HOLDER (L) ASSY, CASSETTE (EA/E/JE)
4 X-4951-067-1 HOLDER (L) ASSY, CASSETTE (MY/SP/TW)
5 X-4951-437-1 LOADING PANEL ASSY (SP/TW)
5 X-4951-530-1 LOADING PANEL ASSY (EA/E/JE)
5 X-4951-804-1 LOADING PANEL ASSY (TH)
5 X-4951-805-1 LOADING PANEL ASSY (IA)
6 1-773-120-11 WIRE(FLAT TYPE) (19 CORE)(MY/SP/TW)
7 3-363-099-01 SCREW(CASE 3 TP2)(EA/E/JE)
7 3-363-099-11 SCREW(CASE 3 TP2)(MY/SP/TW/TH/IA)
8 3-363-099-31 SCREW(CASE 3 TP2)(EA/E/JE)
8 3-363-099-71 SCREW(CASE 3 TP2)(MY/SP/TW/TH/IA)
9 4-221-585-41 CASE(S)(MY/SP/TW)
9 4-221-585-61 CASE(S)(EA/E/JE)
9 4-221-295-41 CASE(IA)
9 4-221-295-61 CASE(TH)
10 1-773-043-11 WIRE(FLAT TYPE)(17 CORE)
11 1-773-024-11 WIRE(FLAT TYPE)(15 CORE)
12 4-214-775-01 SPRING, PUSH CATCHER RETURN
(EA/E/JE/MY/SP/TW/TH)
12 4-214-775-02 SPRING, PUSH CATCHER RETURN (IA)
13 4-214-761-11 CATCHER (B), PUSH
14 4-214-760-11 CATCHER (A), PUSH
15 4-215-062-01 DAMPER
16 4-951-620-01 SCREW (2.6 × 8), +BVTP
