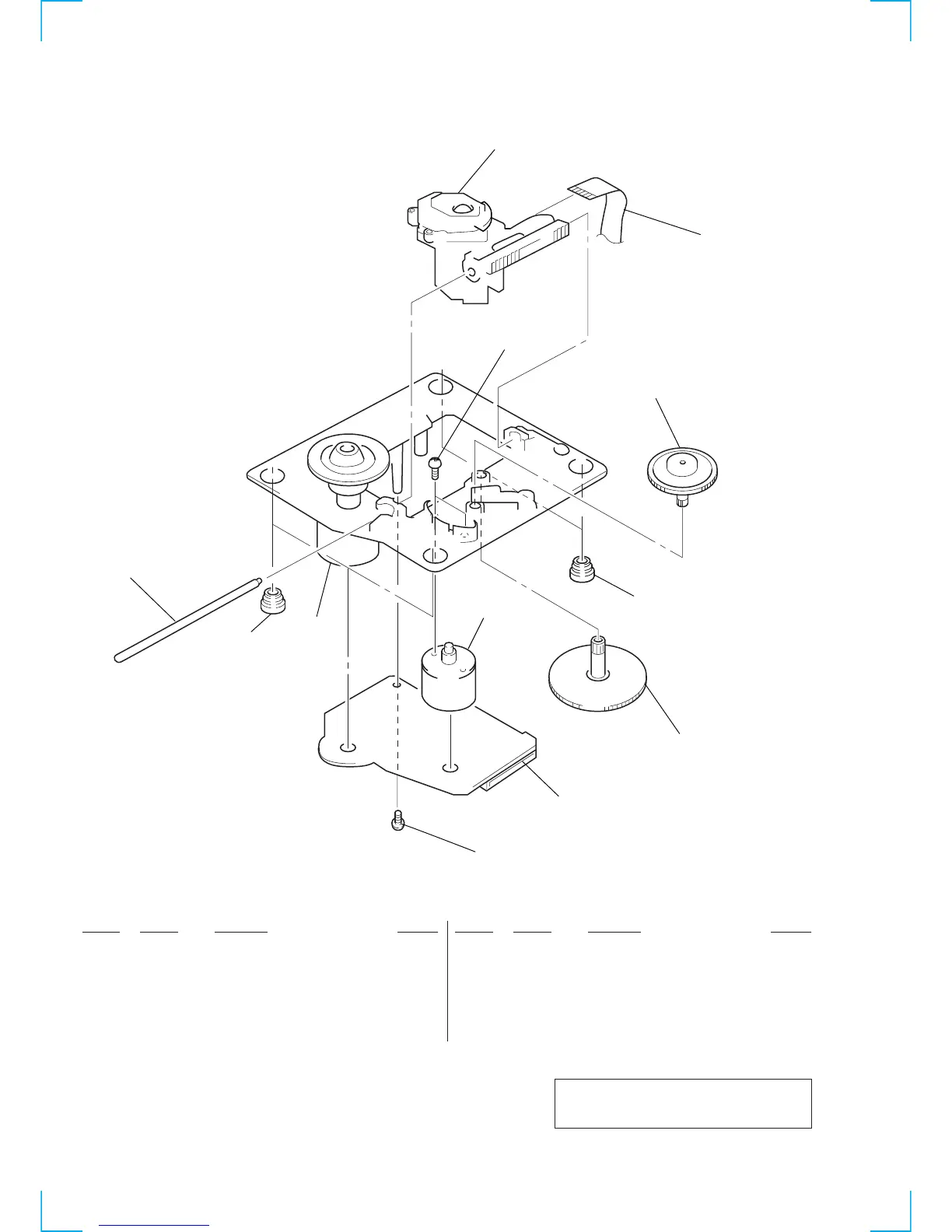

8-6. BASE UNIT SECTION
(BU-5BD34L)
#9
301
302
303
304
305
304
308
307
306
M101
M102
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
! 301 8-820-020-02 OPTICAL PICK-UP KSS-213D/Q-RP
302 1-769-069-11 WIRE (FLAT TYPE)(16 CORE)
303 4-917-567-01 GEAR (M)
304 4-951-940-01 INSULATOR (BU)
305 4-917-565-01 SHAFT, SLED
306 4-917-564-01 GEAR (P), FLATNESS
307 A-4724-640-A BD BOARD (A)(EXCEPT IA)
307 A-4724-653-A BD BOARD (A)(IA)
308 4-951-620-41 SCREW (2.6), +BVTP
M101 X-4917-523-4 MOTOR ASSY (SPINDLE)
M102 X-4917-504-1 MOTOR ASSY (SLED)
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
