SECTION 1
SERVICING NOTES

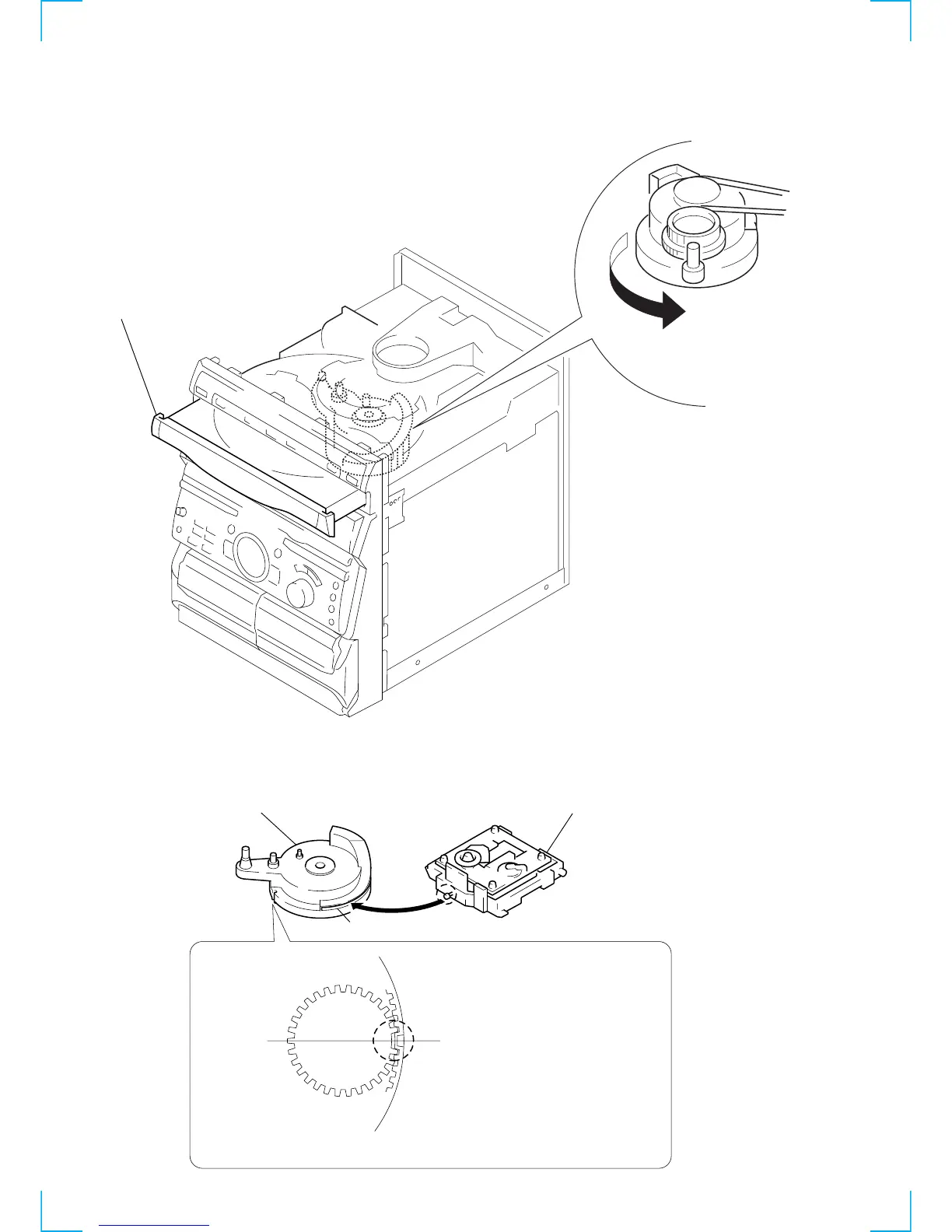

HOW TO OPEN THE DISC TRAY WHEN POWER SWITCH TURNS OFF.
NOTE FOR INSTALLATION (ROTARY ENCODER)
1 Remove the Case.
3 Pull-out the disc tray.
2 Turn the cam to th
e
direction of arrow.
BU cam
Groove
Section A
Note:When attaching the Base unit, Insert th
e
section A into the groove of BU cam.
Note:When attaching the BU cam,
engage the Rotary encoder
switch as shown in the figure.
