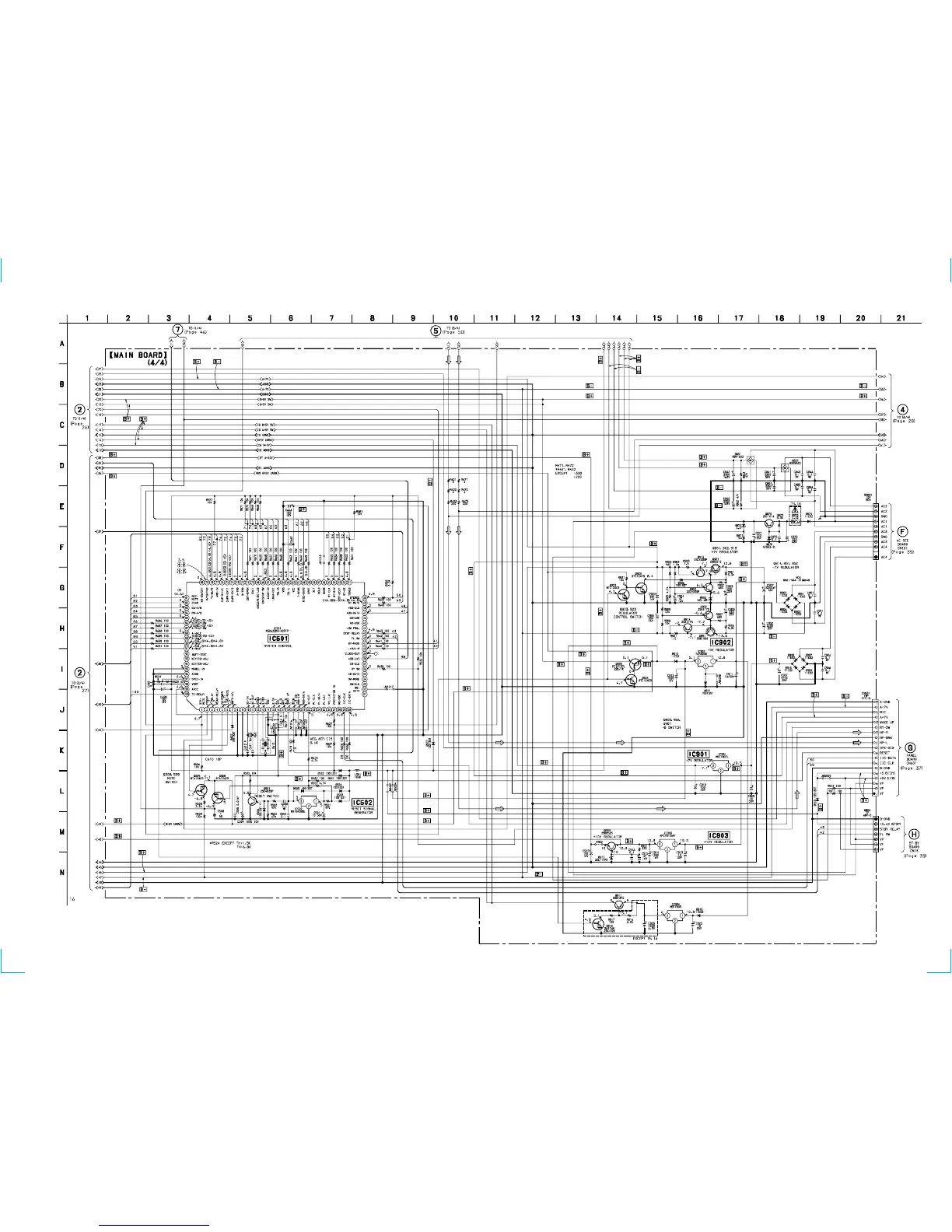

7-7. SCHEMATIC DIAGRAM MAIN SECTION (4/4)
• Refer to page 25 for Printed Wiring Board. • Refer to page 49 for IC Pin Function.
IA
IA
NOTE
• Voltages and waveforms are dc with respect
to ground under no-signal conditions.
no mark : FM
( ) : CD
{ } : PB (DECKA)
[ ] : PB (DECKB)
< > : REC
