Sony HCD-XGR80 - Page 14

14
HCD-XGR80

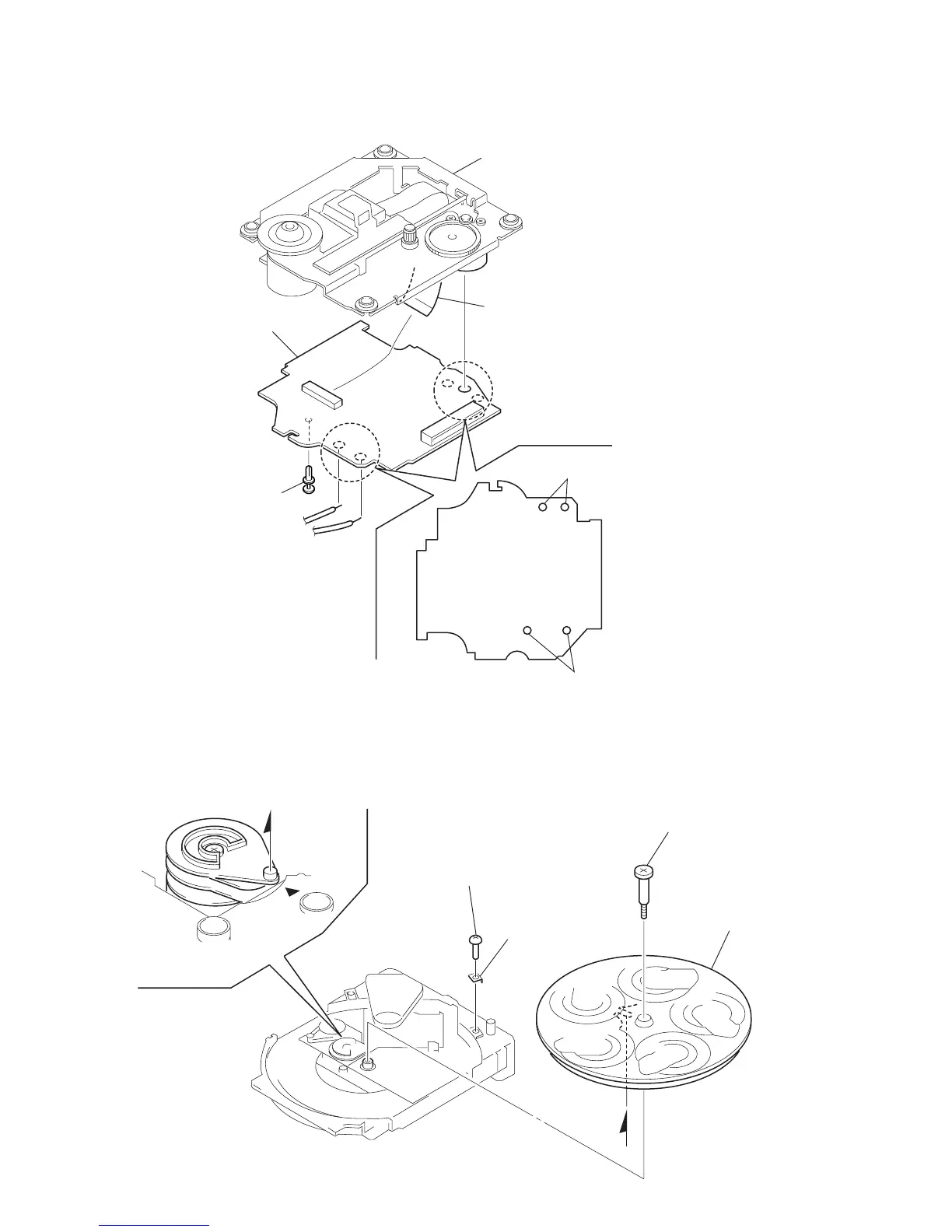

2-14. DISC TABLE
2-13. BD BOARD
Note: When the disc table is installed, adjust the positions of roller cam
and mark B as shown in the figure, then set to the groove of disc
table.
1 Screw (BVTP 3 × 8)
2 Bracket (BU)
3 Step screw
4 Disc tabl
e
A
A
1 Remove the two solders.
4 Flat type wire (CN102)
BU-30BD60C
5 BD board
3 Rivet
2 Remove the two solders.
