HCD-XGR80
Ref. No. Part No. Description Remarks
Ref. No. Part No. Description Remarks
SECTION 7
EXPLODED VIEWS
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.

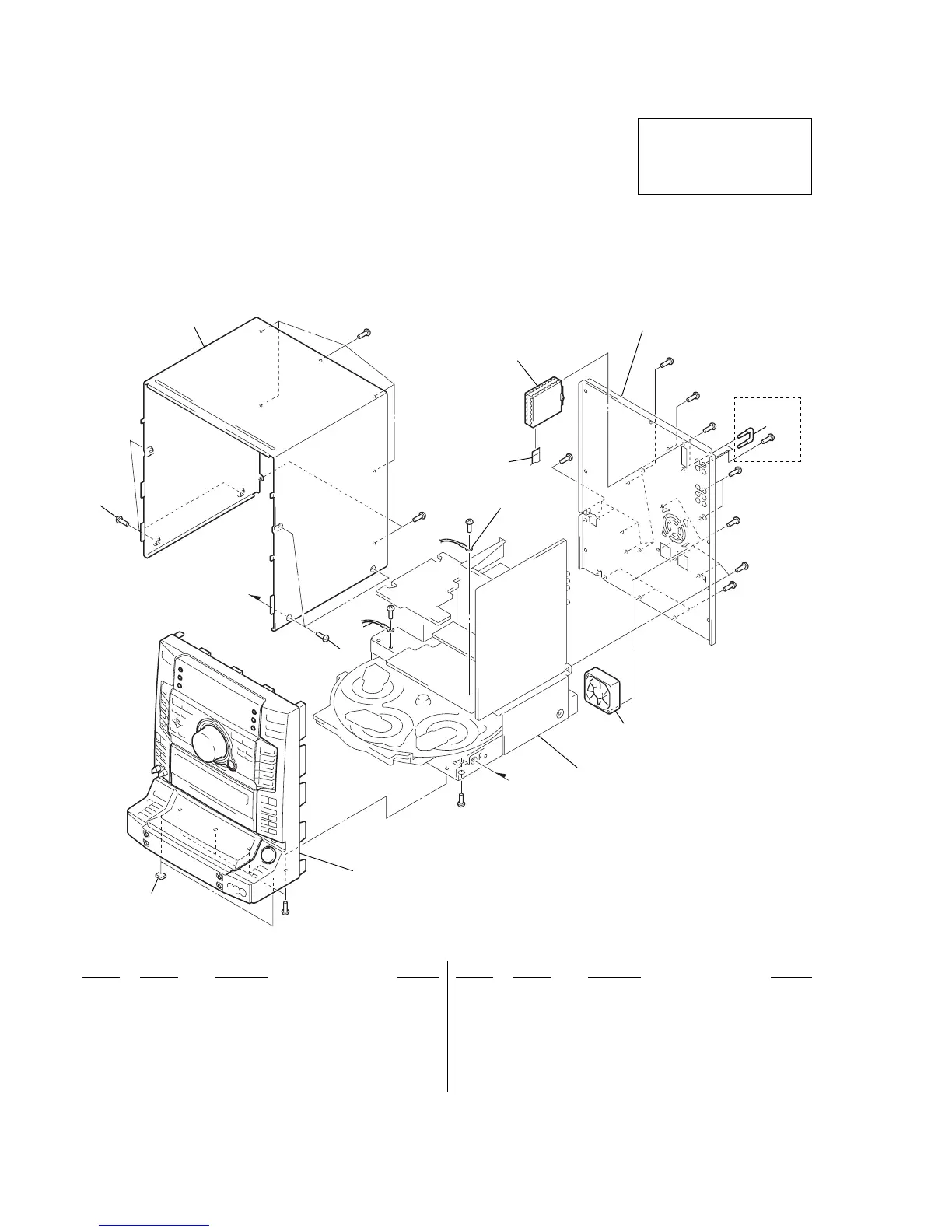

7-1. CASE, BACK PANEL SECTION
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories are
given in the last of this parts list.
• Abbreviation
MX : Mexican model
E51 : Chilean and Peruvian model
AR : Argentina model
3
2
2
5
4
7
1
#3
#1
a
a
#1
#1
#1
not
supplied
not supplied
not supplied
Front panel section
Chassis section
M901
#1
#1
#2
#1
#1
#1
#1
#1
#1
#1
MX model
1 4-948-236-21 CUSHION (107)
2 3-363-099-01 SCREW (CASE 3 TP2)
3 4-237-661-11 CASE
4 1-693-572-11 TUNER (FM/AM) (AR,MX)
4 1-693-574-11 TUNER (FM/AM) (E,E51)
5 1-769-945-11 WIRE (FLAT TYPE) (11 CORE)
7 1-535-706-21 PLUG, JUMPER (MX)
M901 1-763-072-11 FAN, DC
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-872-09 SCREW +BVTT 3X8 (S)
#3 7-685-871-01 SCREW +BVTT 3X6 (S)
