Sony HCD-XGR80 - Chassis Section

57
HCD-XGR80

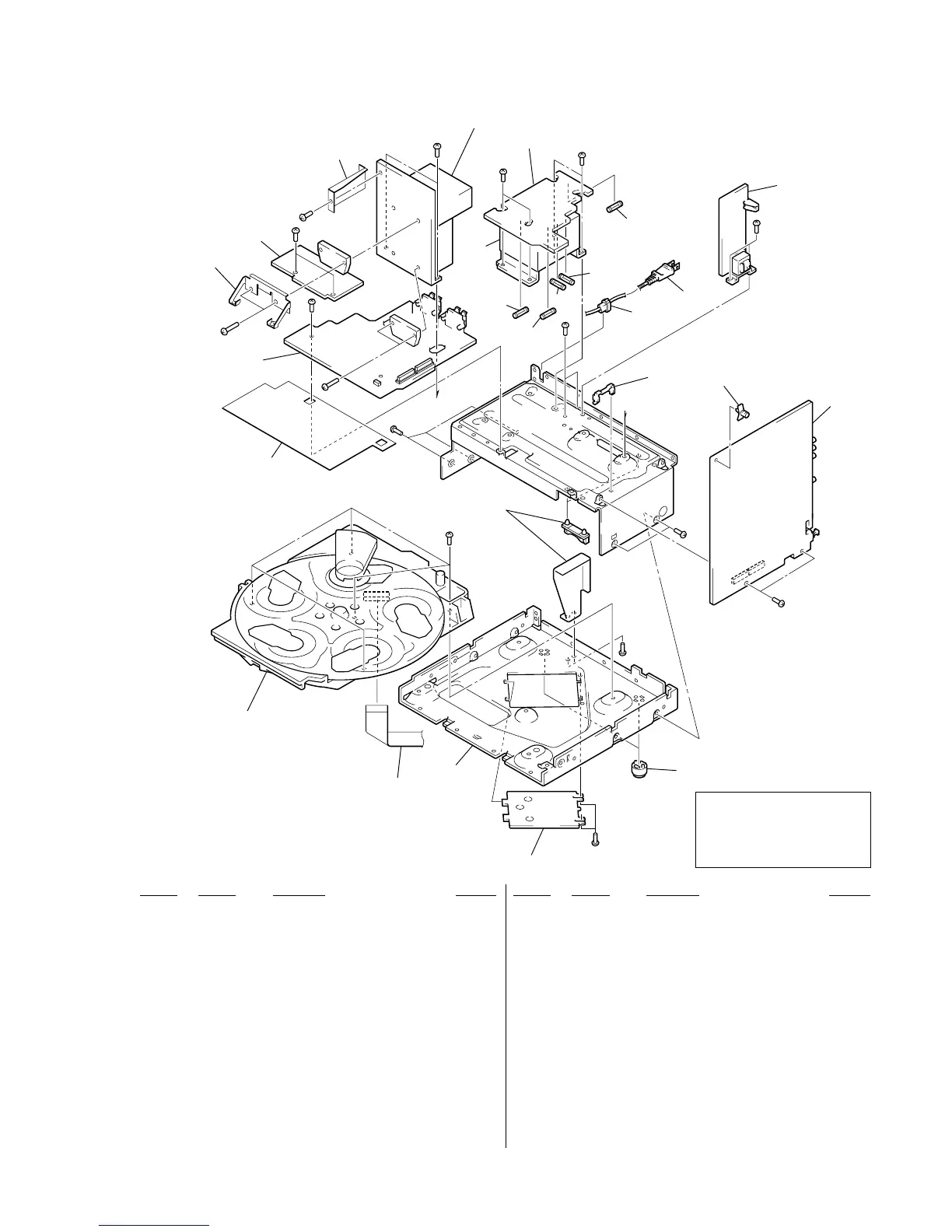

7-4. CHASSIS SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
154
157
153
159
155
156
158
160
152
151
161
#2
#4
#4
#1
#2
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
CDM37B-30BD60C
#5
#1
#1
#1
#1
#1
#1
#1
#1
#1
#5
F951
F961
F962
F964
F963
T951
b
b
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
151 1-823-750-11 WIRE (FLAT TYPE) (21 CORE)
152 4-235-701-01 DUST COVER
153 A-4727-660-A PA BOARD, COMPLETE
154 1-683-444-11 TRANS BOARD
155 3-703-244-00 BUSHING (FBS001), CORD (AR,E51)
155 4-966-266-01 BUSHING (S) (FBS002), CORD (E,MX)
0156 1-575-653-11 CORD, POWER (MX)
0156 1-777-071-82 CORD, POWER (E51)
0156 1-783-941-12 CORD, POWER (AR)
0156 1-791-901-11 CORD, POWER (E)
157 A-4727-659-A SUB AMP BOARD, COMPLETE
158 1-683-445-11 SUB TRANS BOARD
* 159 4-988-533-01 HOLDER, PWB
160 A-4727-663-A MAIN BOARD, COMPLETE (AR,E,E51)
160 A-4728-676-A MAIN BOARD, COMPLETE (MX)
161 X-494-122-81 FOOT (F22125H-M)
0F951 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG)
(T8.0AL 250V)(AR,E,E51)
0F961 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (T8.0AL 250V)
0F962 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (T8.0AL 250V)
0F963 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (T8.0AL 250V)
0F964 1-533-949-31 FUSE, CYLINDRICAL (TIME LUG) (T8.0AL 250V)
0T951 1-437-593-11 TRANSFORMER, POWER
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2 7-685-872-09 SCREW +BVTT 3X8 (S)
#4 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#5 7-685-881-09 SCREW +BVTT 4X8 (S)
