Sony HCD-XGR80 - Printed Wiring Board - Motor, LED Section; Schematic Diagram -Motor, LED Section

HCD-XGR80
2828

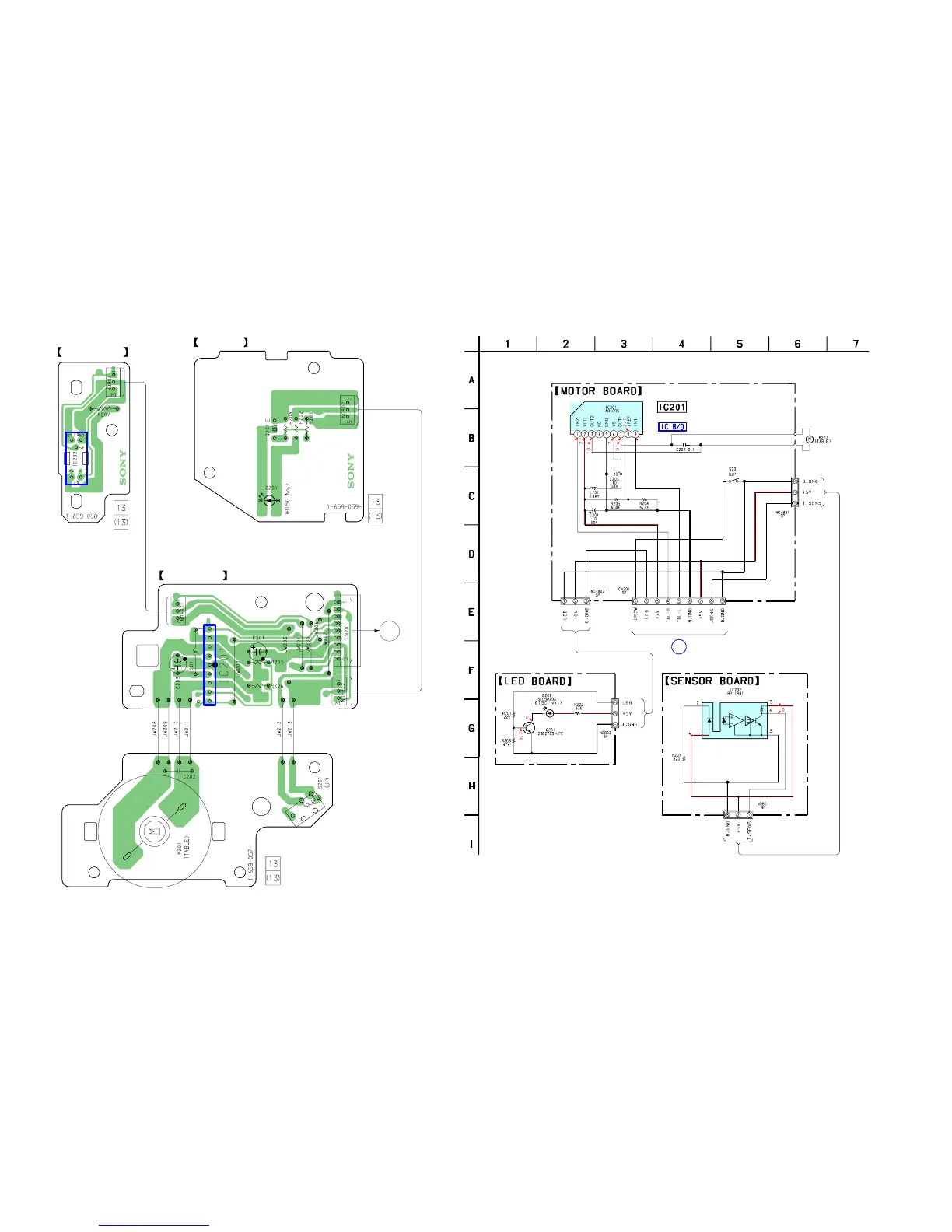

6-6.SCHEMATIC DIAGRAM – MOTOR LED SECTION –
B
MAIN BOARD
(Page 33)
SENSOR BOARD
LED BOARD
MOTOR BOARD
6-5.PRINTED WIRING BOARD – MOTOR LED SECTION – • See page 21 for Circuit Boards Location.
B
MAIN BOARD(2/3)
(Page 31)
4.8
4.8
4.8
4.8
LED DRIVE
TABLE MOTOR DRIVER
DISC TABLE SENSOR
TRAY
