Sony HCD-XGR80 - CD Mechanism Deck Section; (CDM-30 Bd60 C)

58
HCD-XGR80
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

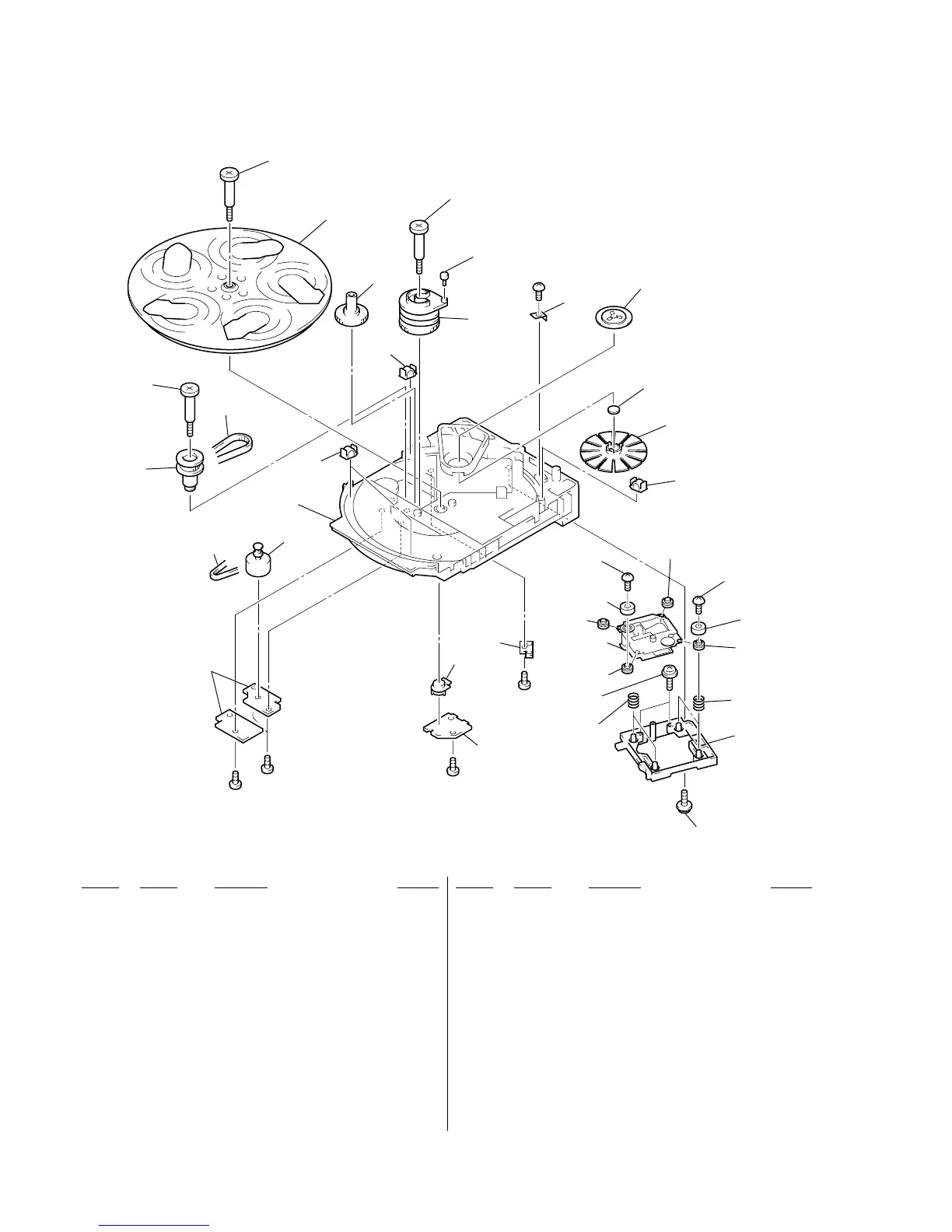

7-5. CD MECHANISM DECK SECTION
(CDM-30BD60C)
501
509
504
506
505
511
501
503
501
502
502
M201
514
516
520
520
519
518
522
521
523
524
521
520
519
518
520
510
508
517
507
515
513
510
510
512
#1
#1
#1
#1
#1
BU-30BD60C
501 4-987-976-01 SCREW, STEP
502 4-944-490-01 BELT (TIMING)
503 A-4660-978-A GEAR (PULLEY) ASSY
504 4-978-421-01 GEAR (MID)
505 4-978-425-01 ROLLER (CAM)
506 4-978-420-01 CAM (HOLDER)
507 4-237-981-01 PULLEY (B) (30), CHUCKING
508 X-4953-307-1 PULLEY (A) ASSY, CHUCKING
509 4-238-261-01 TABLE, DISK
510 X-4947-960-1 ROLLER ASSY
* 511 4-978-583-01 BRACKET (BU)
512 4-238-260-01 CHASSIS
* 513 A-4673-765-A MOTOR BOARD, COMPLETE
514 4-978-426-01 INDICATOR (NO.)
* 515 1-659-059-13 LED BOARD
* 516 1-659-058-13 SENSOR BOARD
517 4-228-414-01 BRACKET (YOKE)
518 4-951-620-01 SCREW (2.6X8), +BVTP
519 4-231-151-01 STOPPER (BU)
520 4-231-451-11 INSULATOR (BU-30)
521 4-227-045-11 SPRING (INSULATOR), COIL
522 4-227-899-01 SCREW (DIA. 12), FROATING
523 4-998-716-01 SCREW, BU FITTING
524 X-4954-451-1 HOLDER (BU30) ASSY
M201 A-4660-977-A MOTOR ASSY
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
