Sony HCD-XGR80 - Section 2 Disassembly Procedures; Case and Back Panel Removal

7
HCD-XGR80
SECTION 2
DISASSEMBLY

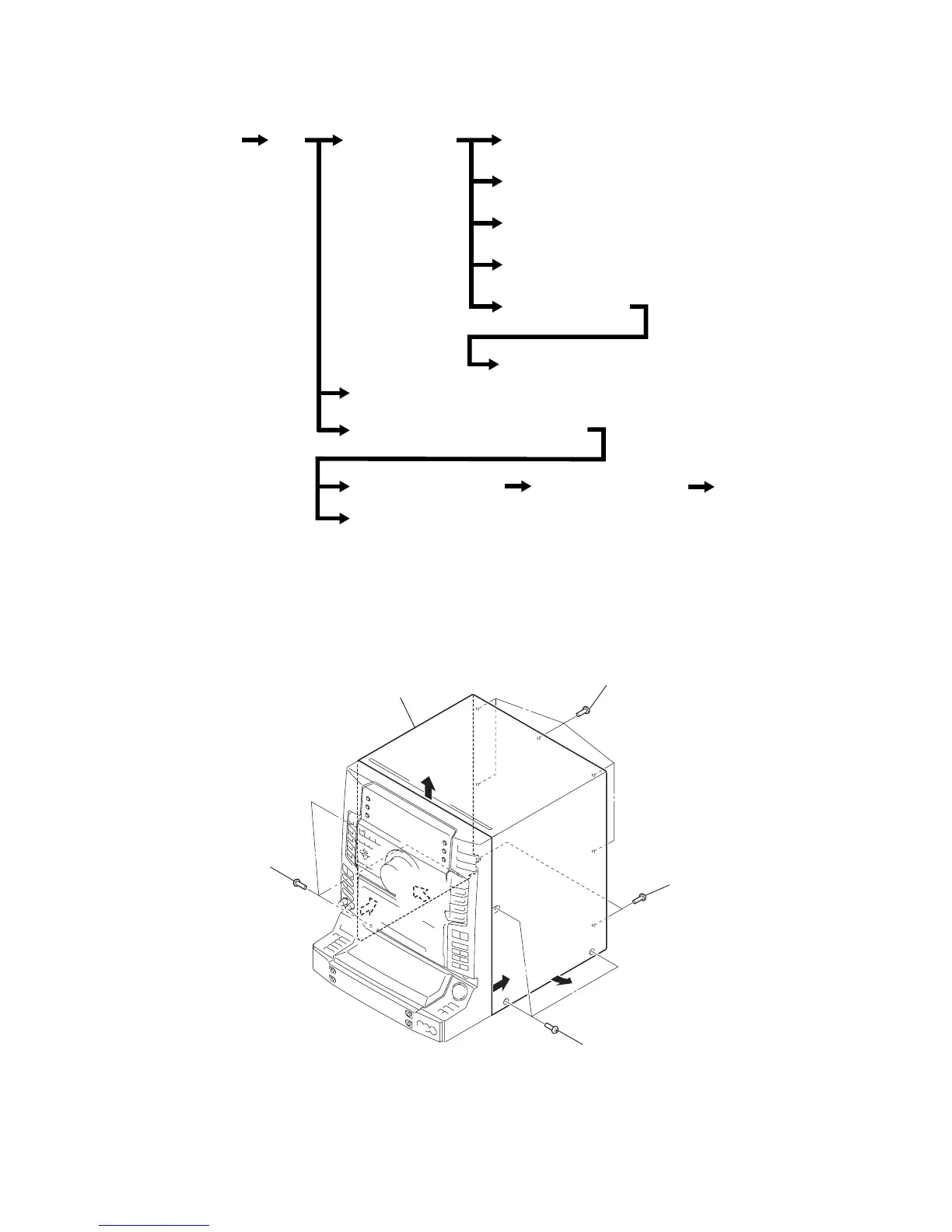

Note : Follow the disassembly procedure in the numerical order given.
2-1. CASE
• The equipment can be removed using the following procedure.
3 Five screws (BVTT 3 × 6)
4 Two screws (BVTP 3 × 8
)
2 Three screws (CASE3 TP2)
1 Three screws
(CASE3 TP2)
8 Case
6
7
5
5
6
Set Case Front panel section Tape mechanism deck
PANEL FL board, TC-A board, TC-B board
PANEL VR board
MIC/GUITAR board, HEADPHONE board
FRONT INPUT board
D-SW board, CD-L board, Lid (CD) assy, CD-R board
Back panel, DC fan, MAIN board
CD mechanism deck (CDM37B-30BD60C)
Base unit-1 (BU-30BD60C)
Disc table
Base unit-2 (BU-30BD60C) BD board
