Overview
System Configuration
13
Operating Multiple BRC-H700 Cameras from a Long Distance
This system allows you:
• To operate up to seven cameras remotely from a distance up to 1,000 m (3,281 feet)
• To perform pan/tilt and zoom operations comfortably using the joystick
• To transmit the video signal and control signal of the cameras to a distant place using the Optical Fiber Cable

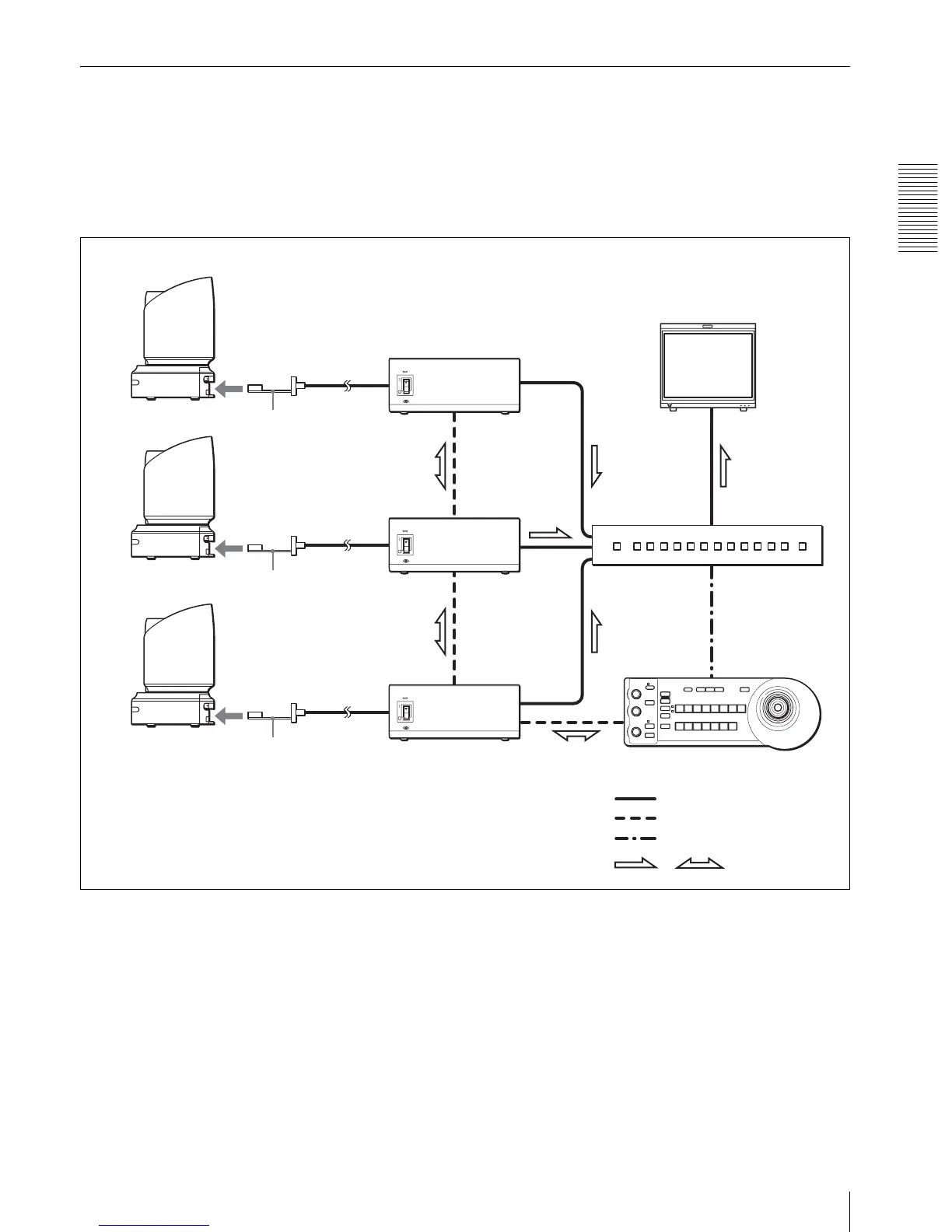

System configuration
,
BRC-H700
BRC-H700
BRC-H700
BRBK-H700 HD
Optical Multiplex Card
BRBK-H700
BRBK-H700
BRU-H700 Optical
Multiplex Unit
BRU-H700
HD video monitor, VTR, etc.
BRU-H700
Video switcher
RM-BR300 Remote Control Unit
CCFC-M100HG
Optical Fiber
Cable
CCFC-M100HG
CCFC-M100HG
Video signal
Remote control (VISCA) signal
Tally/contact signal
Signal flow
