Overview
System Configuration
17
Transmitting the Audio Signal Using the BRBK-H700 HD Optical Multiplex
Card and the HFBK-TS1 HDV Interface Board
This system allows you:
• To operate the camera remotely from a distance up to 1,000m (3,281 feet)
• To perform pan/tilt and zoom operations comfortably using the joystick
• To transmit the video signal and control signal of the camera, and the audio signal input to the BRBK-H700 Optical
Multiplex Card to a distant place using the Optical Fiber Cable
• To output the audio signal transmitted via the Optical Fiber Cable as an audio signal conforming to HDV standards
from the HFBK-TS1 through the AUDIO OUT jacks on the BRU-H700 if you insert the HFBK-TS1 HDV Interface
Board into the BRU-H700

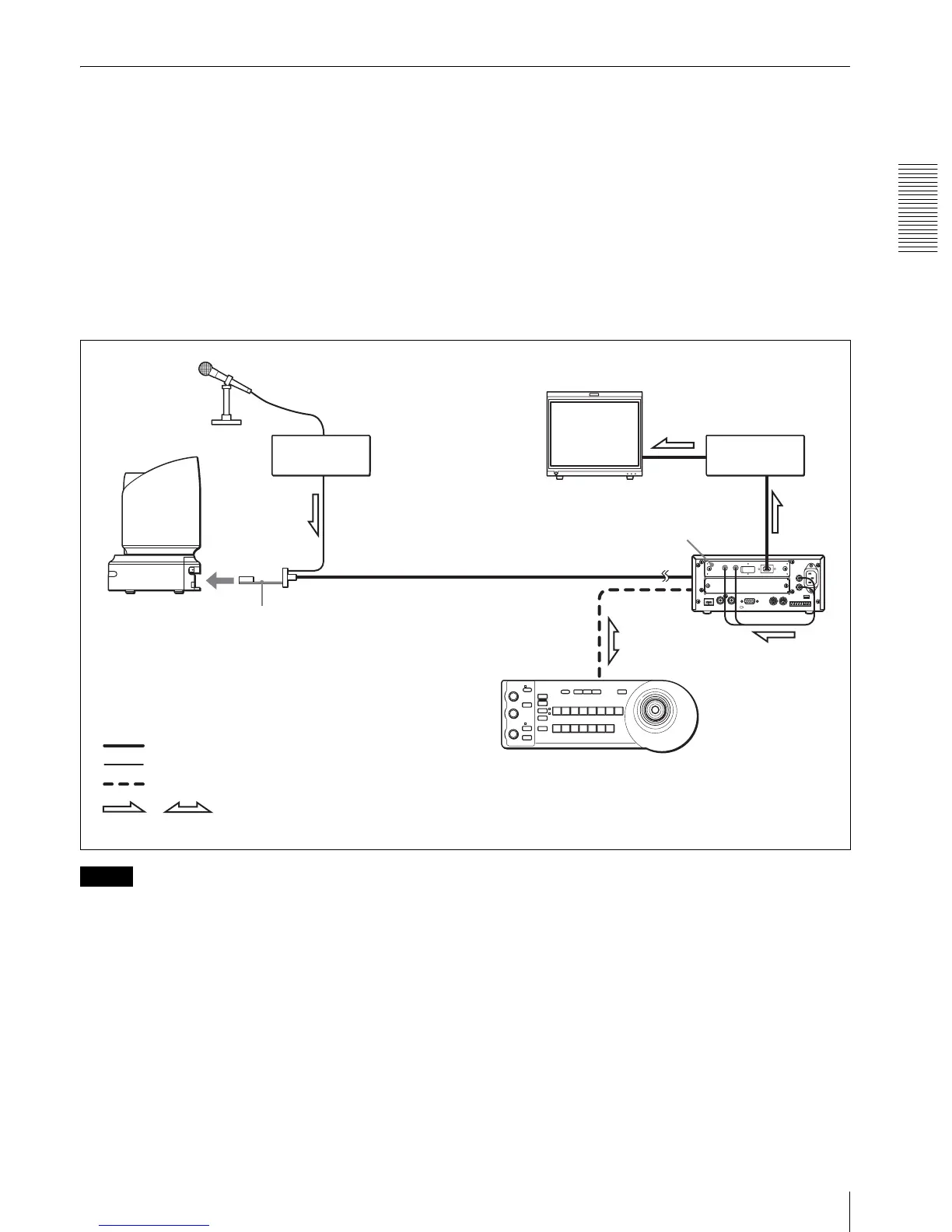

System configuration
Note
The video signal delay in this system is caused by signal processing in the HFBK-TS1 HDV Interface Board. If you are
uncomfortable with the delay, output the video signal via the RGB/COMPONENT connector on the BRU-H700.
,
IN EXT SYNC OUT
IN
VISCA RS-232C
OUT
CAMERA
~
AC IN
VISCA RS-422
AUDIO OUT
L
R
FUNCTION
16
RGB/COMPONENT
AUDIO IN
HFBK-TS1
LR
i.Link
(
HDV
)
BRC-H700
Microphone
HD video monitor
RM-BR300 Remote Control Unit
CCFC-M100HG
Optical Fiber Cable
Video signal
Audio line signal
Remote control (VISCA) signal
Signal flow
Microphone amplifier
BRBK-H700 HD Optical
Multiplex Card
i.Link cable
HFBK-TS1 HDV
Interface Board
HDV VTR equipped
with the i.Link
connector
BRU-H700 HD
Optical Multiplex
Unit (rear)
