Sony HD 3CCD - Connecting a Sync Signal Generator

Installation and Connections
Connections
62

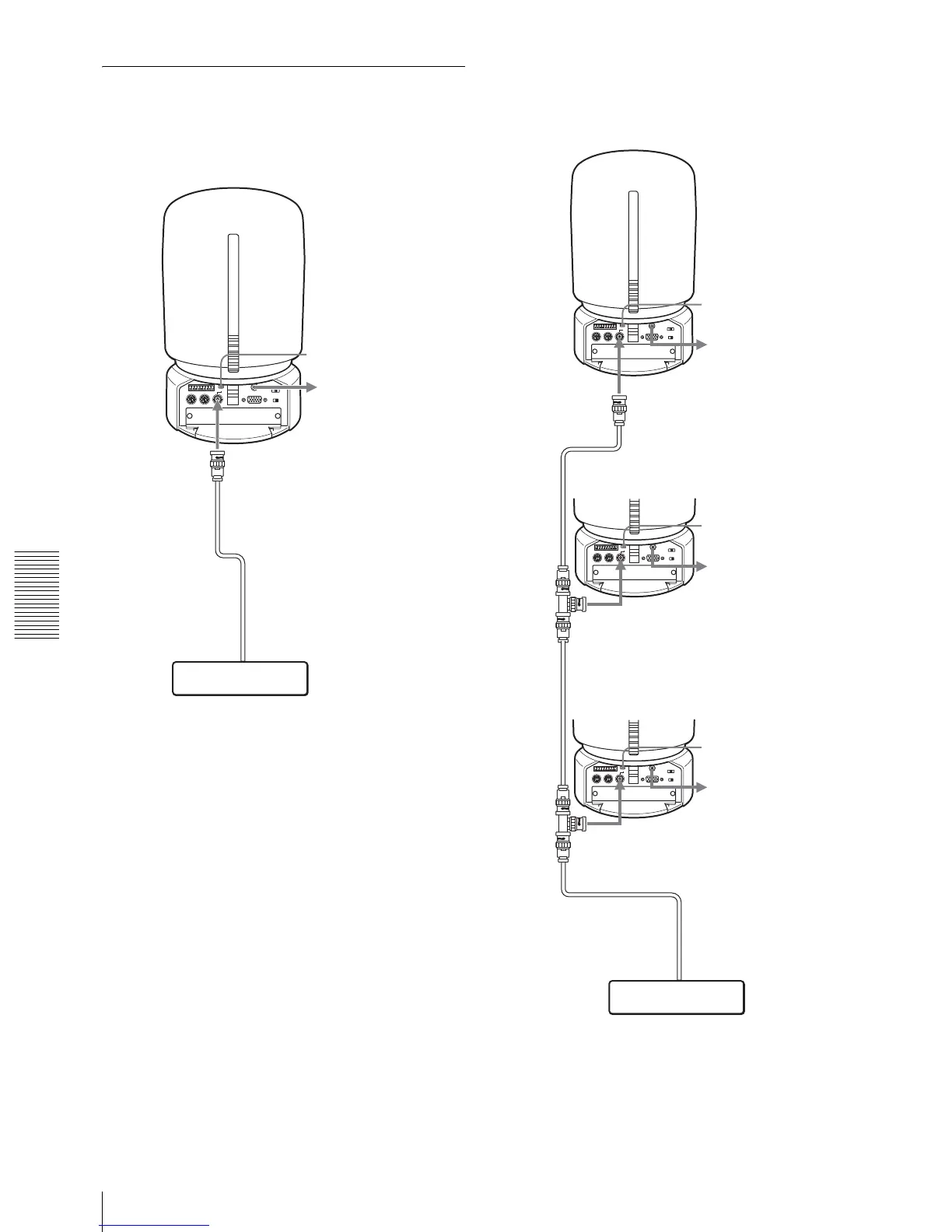

Connecting a Sync Signal
Generator
To connect a single camera
To connect multiple cameras to the HD
sync signal generator
You can connect up to seven cameras.
75-ohm termination
switch: ON
EXT SYNC IN
75-ohm coaxial cable
to SYNC OUT
Sync signal generator
to AC outlet
Second BRC-H700
75-ohm termination
switch: ON
to AC outlet
to AC outlet
to AC outlet
75-ohm termination
switch: OFF
First BRC-H700
EXT SYNC IN
EXT SYNC IN
EXT SYNC IN
Third to Seventh (last)
BRC-H700
Commercially available T-type signal separator
HD sync signal generator
to SYNC OUT
75-ohm coaxial cable
75-ohm termination
switch: OFF
