Sony HD 3CCD - Wiring Diagram of VISCA RS-422 Connection

Appendix
Specifications
79

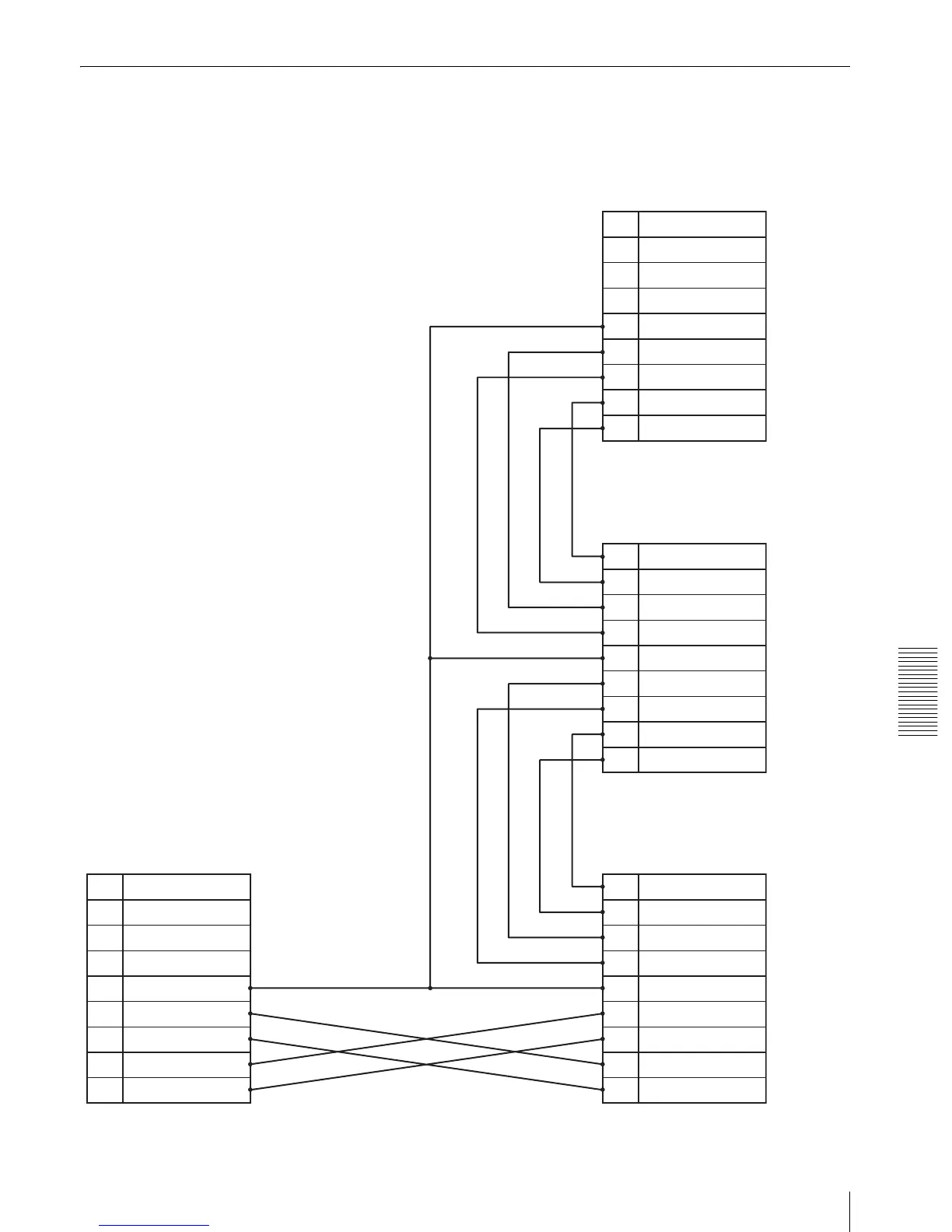

Wiring Diagram of VISCA RS-422 Connection
1 RXD OUT –
2 RXD OUT +
3 TXD OUT –
4 TXD OUT +
5 GND
6 RXD IN –
7 RXD IN +
8 TXD IN –
9 TXD IN +
1 RXD OUT –
2 RXD OUT +
3 TXD OUT –
4 TXD OUT +
5 GND
6 RXD IN –
7 RXD IN +
8 TXD IN –
9 TXD IN +
1 RXD OUT –
2 RXD OUT +
3 TXD OUT –
4 TXD OUT +
5 GND
6 RXD IN –
7 RXD IN +
8 TXD IN –
9 TXD IN +
1NC
2NC
3NC
4NC
5GND
6 RXD IN –
7 RXD IN +
8 TXD IN –
9
TXD IN +
RM-BR300 Remote Control Unit
VISCA RS-422 connector
NC
= No Connection
Third to Seventh BRC-H700 or
BRU-H700
VISCA RS-422 connector
Second BRC-H700 or
BRU-H700
VISCA RS-422 connector
First BRC-H700 camera or BRU-
H700 HD Optical Multiplex Unit
VISCA RS-422 connector
