Sony HD 3CCD - Pin Assignments

Appendix
Specifications
76

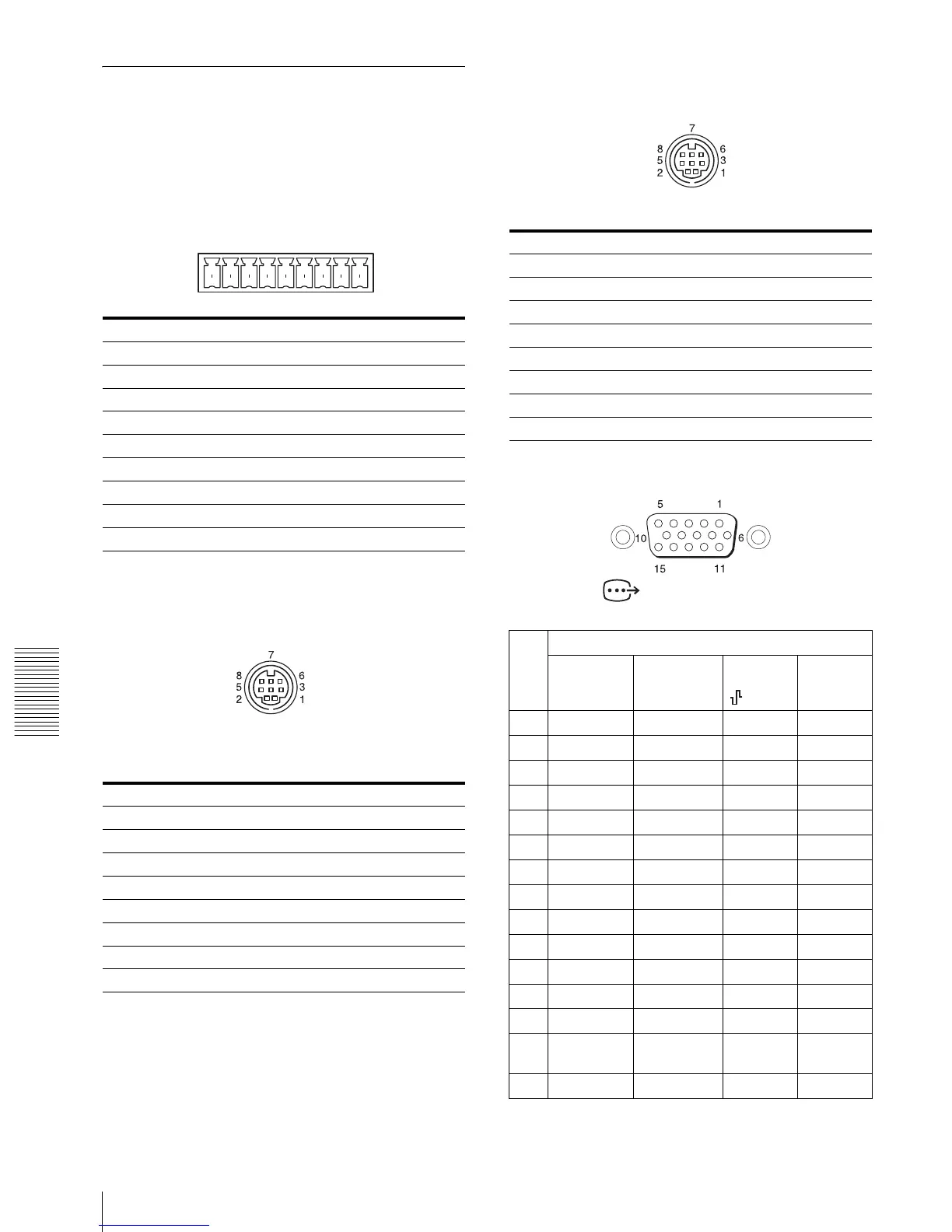

Pin Assignments
BRC-H700 Video Camera
VISCA RS-422 connector (connector plug
9-pin)
VISCA RS-232C IN connector (mini-DIN 8-pin,
female)
* The SIRCS OUT function is selectable with the BOTTOM
switch on the bottom of the camera.
VISCA RS-232C OUT connector (mini DIN 8-pin,
female)
Analog RGB/COMPONENT (D-sub 15-pin)
Pin No. Function
1 RXD OUT –
2 RXD OUT+
3 TXD OUT –
4 TXD OUT+
5 GND
6 RXD IN –
7 RXD IN+
8 TXD IN –
9 TXD IN+
Pin No. Function
1DTR IN
2DSR IN
3 TXD IN
4 GND
5 RXD IN
6 GND
7 SIRCS OUT *
8 No Connection
12345
VISCA RS-422
6789
IN VISCA RS-232C
Pin No. Function
1DTR OUT
2 DSR OUT
3 TXD OUT
4 GND
5 RXD OUT
6 GND
7 No Connection
8 No Connection
Pin
No.
Function
At YPbPr
COMPONENT
setting
At YPbPr
COMPONENT
setting (at VD)
At RGB
setting (at
SYNC)
At RGB
setting (at
VD)
1 Pr-OUT Pr-OUT R-OUT R-OUT
2 Y-OUT Y-OUT G-OUT G-OUT
3 Pb-OUT Pb-OUT B-OUT B-OUT
4 GND GND GND GND
5 GND GND GND GND
6 GND GND GND GND
7 GND GND GND GND
8 GND GND GND GND
9NC NC NC NC
10 GND GND GND GND
11 GND GND GND GND
12 NC NC NC NC
13 HD-OUT HD-OUT HD-OUT HD-OUT
14 Tri-level
VD-OUT
Bi-level VD-
OUT
Tri-level
VD-OUT
Bi-level
VD-OUT
15 NC NC NC NC
VISCA RS-232C OUT
RGB/COMPONENT
