HVR-V1E/V1P
2-887-521-12(1)

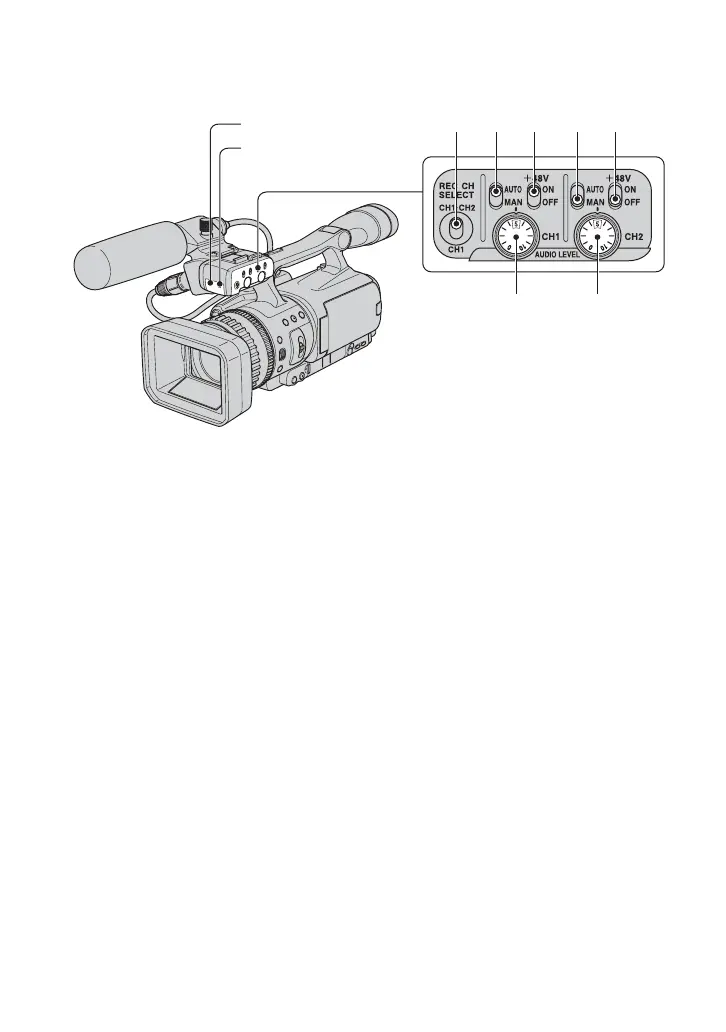

A Remote sensor (front) (143)
B Rec lamp (front)
The rec lamp flashes if the remaining
tape or battery is low.
C REC CH SELECT switch (20)
D CH1 AUTO/MAN switch (48)
E CH1 +48V switch (48)
F CH2 AUTO/MAN switch (48)
G CH2 +48V switch (48)
H CH2 AUDIO LEVEL dial (48)
I CH1 AUDIO LEVEL dial (48)
2
3 4 5 6 7
89
Identifying parts and controls (Continued)
