Sony KLV-32L400A - UM Board and Jack Holder Removal; BG2 A Board and RF Bracket Removal

13
KLV-32L400A/37L400A
KLV-32L400A/37L400A

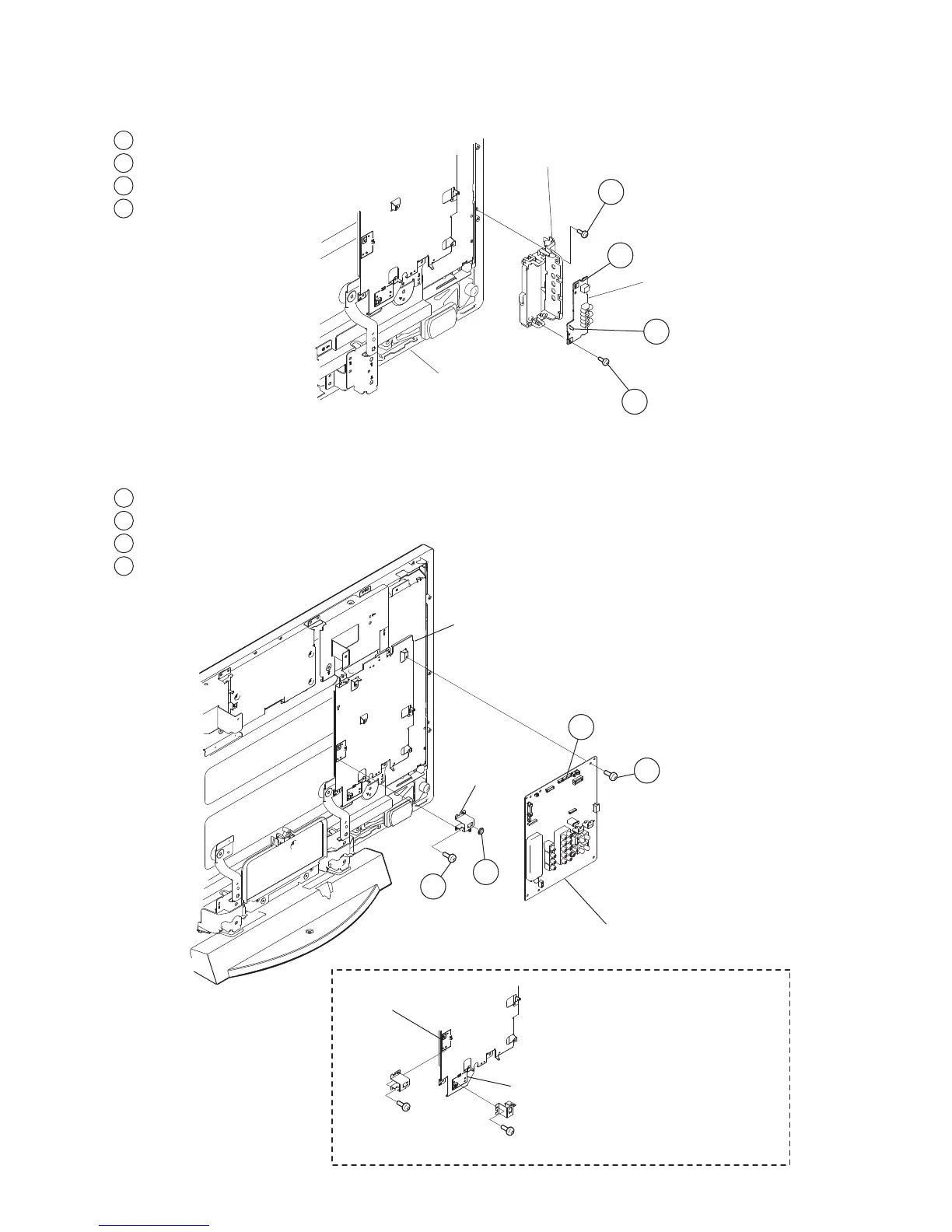

1-3. UM BOARD AND JACK HOLDER REMOVAL
1
Remove 1 screw
2
Disconnect 1 connector
3
Disconnect 1 wire terminal
4
Remove 2 screws
1-4. BG2A BOARD AND RF BRACKET REMOVAL
1
Disconnect 7 connectors
2
Remove 6 screws
3
Remove 1 Hex nut
4
Remove 2 screws
Bezel
1
4
3
2
Side Jack Holder
UM Board
BG2A Board
RF BRACKET MOUNT POSITIONS AND ORIENTATIONS
RF Bracket
37L400A-RF Bracket
Mount Position
32L400A-RF Bracket
Mount Position
Main Bracket
2
4
1
3
